PX Y Typus ventilabis-in Tube Fitting

Model:PX6-01

Subsequens est introductio ad PX Y typus Push-in Tube Opportunus, OLK spes adiuvandi melius intelleges PX Y typus ventilabis in Tube Opportunus. Excipe novos et veteres clientes ut pergere nobiscum cooperari ut melius futurum simul crearent!

Brand:
OLK
Color:
Black,White,Blue
Type:
Male BSPT Thread (R Thread) Y Type

Mitte Inquisitionem

depictio producti

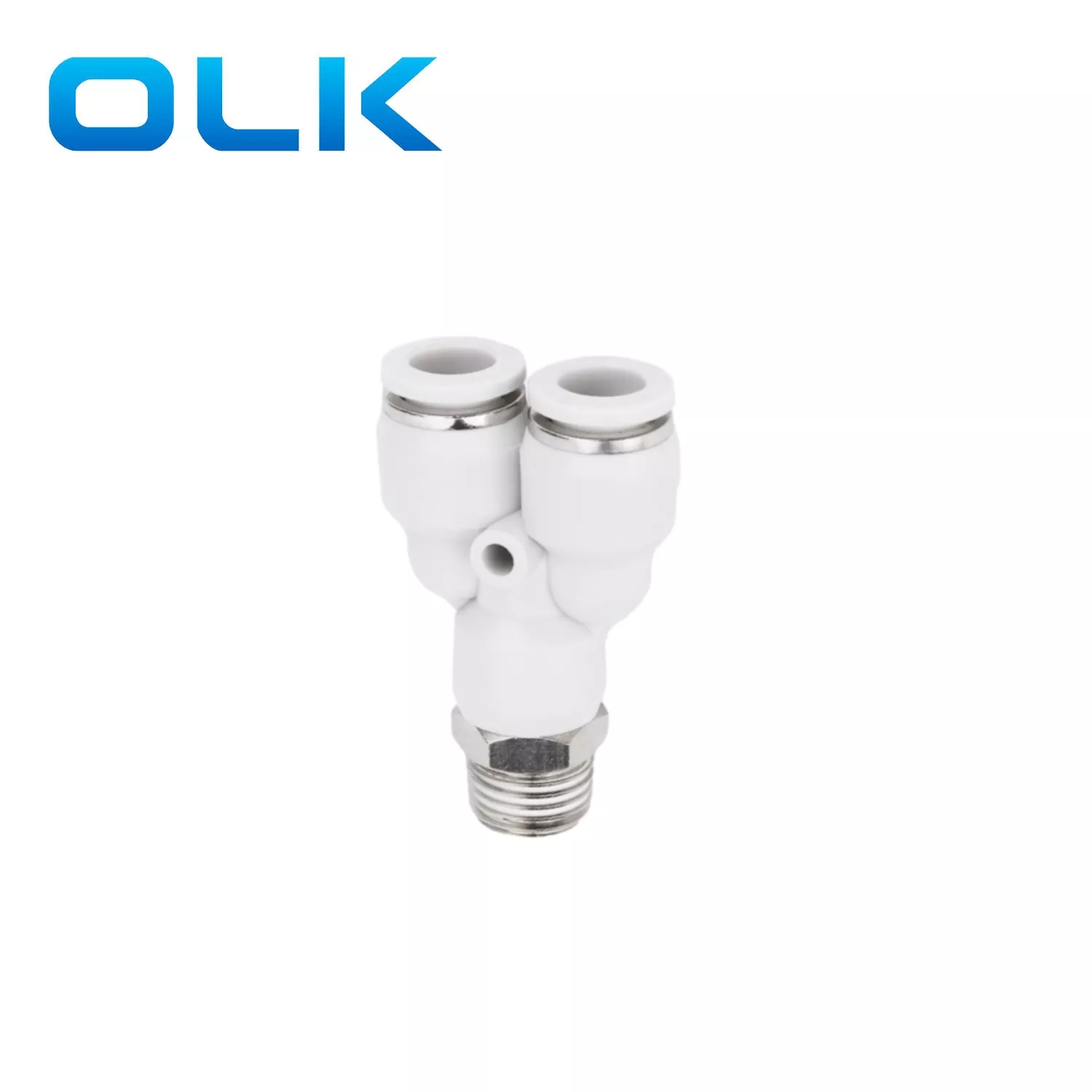

PX Y typus Push-in Tube Fitting dis-ad-connect design.facilis institutionis est. Suprema species est Y-formata, cum directio leniore fluens quae fluere aeri aptior est. Iter et principalis caeli via directe connexa est. Communiter usus est ad separationem gasorum vel fistularum auxiliarium in systematibus pneumaticis.

PX ex cupro et corrosione non facile.

Mandans signum
PX	8	--	01
Exemplar	Tubus magnitudine (metrica)		Thread genus (55° linum rectum)
PX seriem decet	4:4mm		01:G1/8
	6:6mm		02:G1/4
	8:8mm		03:G3/8
	10:10mm		04:G1/2
	12:12mm
	14:14mm
	16:16mm

PX Y typus ventilabis-in Tube Fitting

General basic parametri

Liquor	Aer / aqua (conditionalis) / vacuum
Operans pressura	0-1.0Mpa
Vacuum pressura	-100Kpa(10 Torr)
operating temperatus	-10-60℃
Materia	NYLON(PA), Polyurethane(PU)

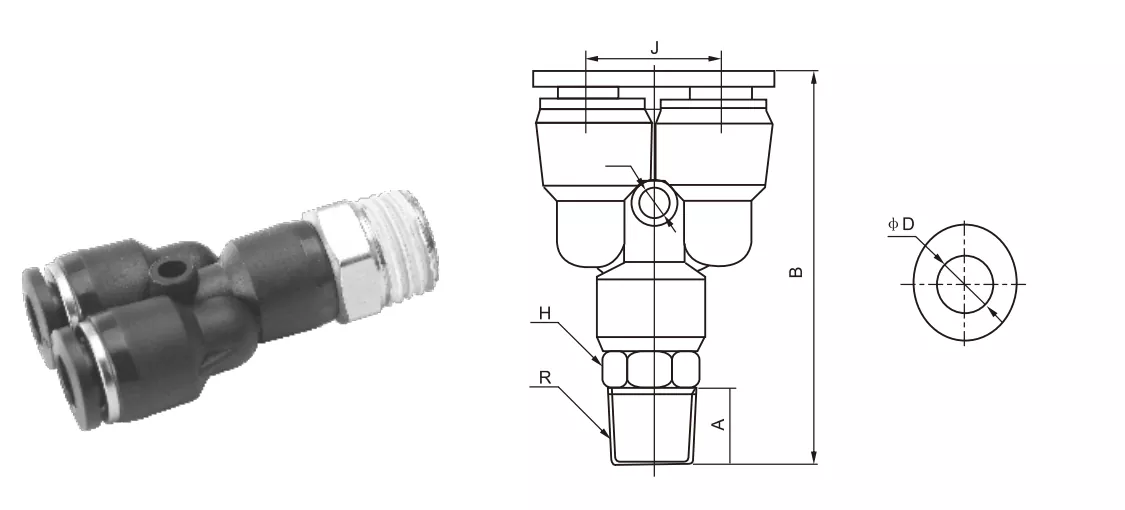

PX Y typus ventilabis-in Tube Fitting Outline dimensio parametri

Tubus inch Fitting	Tubus metricus Fitting	φD	R	A	B	E	J	φd
PX5/32-M5	PX4-M5	4	M5	4.5	42.5	10	10.8	2.5
PX5/32-01	PX4-01	4	R1/8	7	43	10	10.8	2.5
PX5/32-02	PX4-02	4	R1/4	9	44	14	10.8	3
PX1/4-M5	PX6-M5	6	M5	4.5	41.5	12	13.4	3.5
PX1/4-01	PX6-01	6	R1/8	6.5	46	12	13.4	3.5
PX1/4-02	PX6-02	6	R1/4	9	48.5	14	13.4	3.5
PX1/4-03	PX6-03	6	R3/8	10	49	17	13.4	3.5
PX1/4-04	PX6-04	6	R1/2	10	51	21	13.4	3.5
PX5/16-01	PX8-01	8	R1/8	8	51	14	15.8	4
PX5/16-02	PX8-02	8	R1/4	10	52.5	14	15.8	4
PX5/16-03	PX8-03	8	R3/8	10	53.5	17	15.8	4
PX5/16-04	PX8-04	8	R1/2	11	55	21	15.8	4
PX3/8-01	PX10-01	10	R1/8	8	56.5	17	19	4
PX3/8-02	PX10-02	10	R1/4	10	58	17	19	4
PX3/8-03	PX10-03	10	R3/8	10	58	17	19	4
PX3/8-04	PX10-04	10	R1/2	11	59	21	19	4
PX1/2-01	PX12-01	12	R1/8	8	62	19	21.5	4
PX1/2-02	PX12-02	12	R1/4	10	70	19	21.5	4.5
PX1/2-03	PX12-03	12	R3/8	10	70	19	21.5	4.5
PX1/2-04	PX12-04	12	R1/2	11	65	21	21.5	4
	PX16-03	16	R3/8	11
	PX16-04	16	R1/2	12

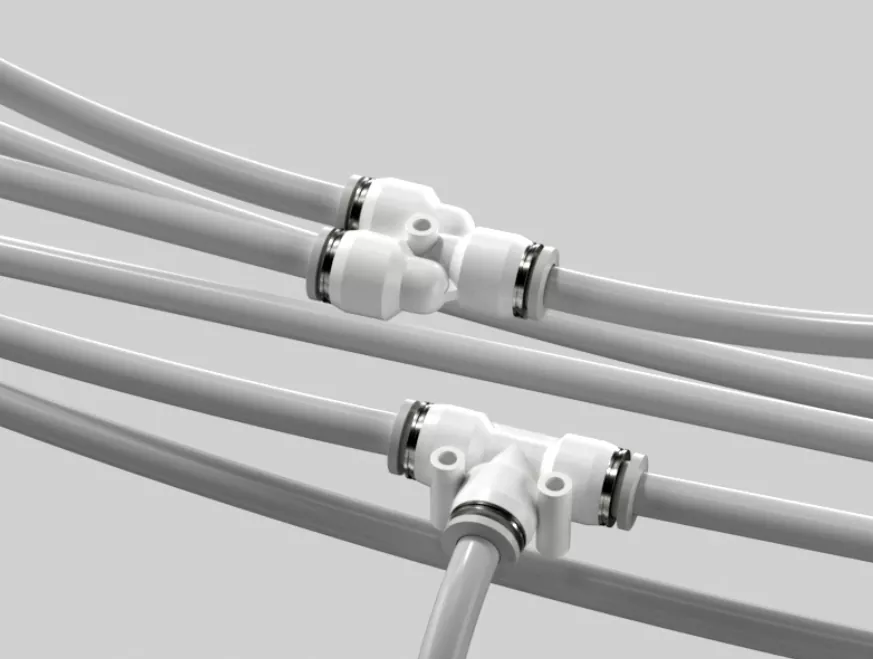

Similitudines et differentias inter T et Y informibus Push-in Tube Opportunus.
Tee Opportunus (PB,PD)	Modum pneumaticum efficax similis "T" structuram et intersecet in 90° angulo
Y Opportunus (PX)	Viam aptum sicut "Y" structuram et directionem lenis fluit, profluvio aptior fora
Comparari cum congruentia T-formata, connector conformatus Y conformatus levius est et minus habet resistentiam
