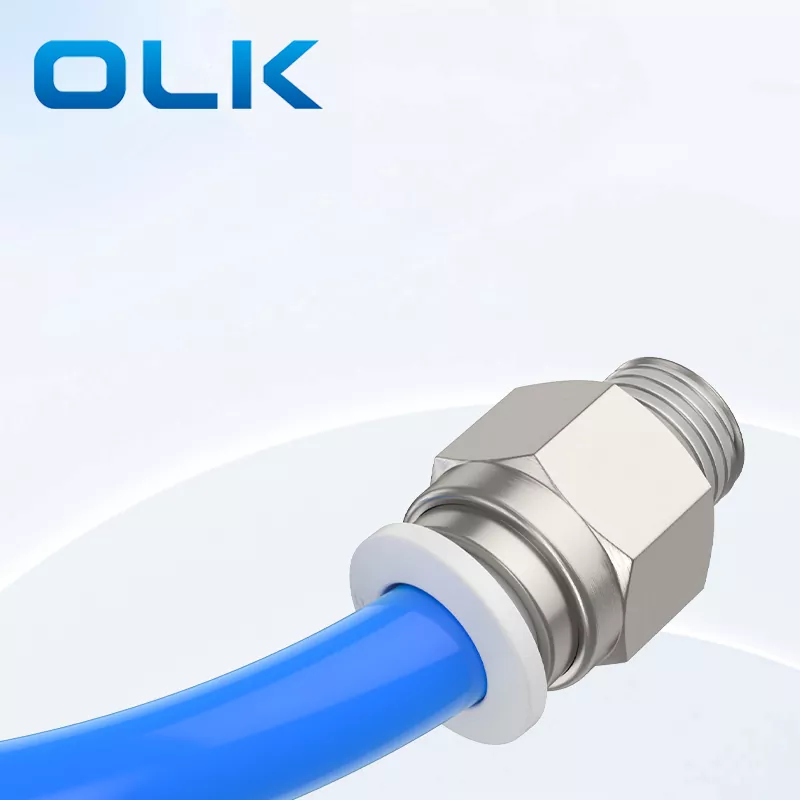

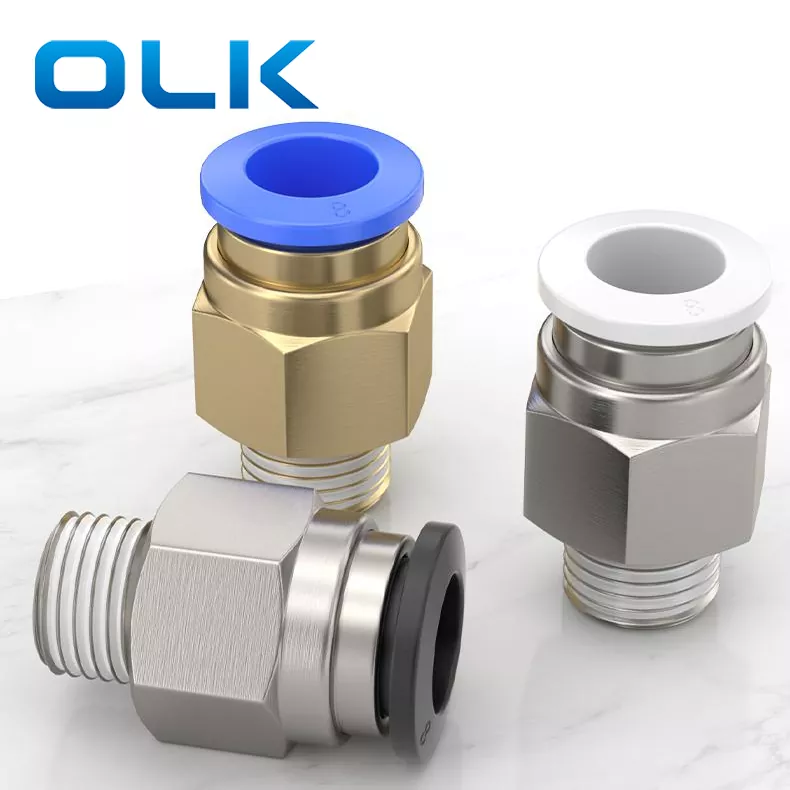

In PC masculum filum recta ventilabis in tube decet est a recta-genus pneumaticae iungo accedunt velox et secure nexu de Tubing ad apparatu Ports.it features pacto structuram, fortis signantes et ieiunium installation.
|
Code |
|||
|
PC |
8 |
- |
01 |
|
Exemplar |
Tube Size (metrica) |
|
Thread Type (LV ° Recta Tube Thread) |
|
|
IV: 4mm |
|
I: G1 / VIII |
|
|
VI, 6mm |
|
II: G1 / IV |
|
|
VIII, 8mm |
|
III: G3 / VIII |
|
|
X: 10mm |
|
IV: G1 / II |
|
|
XII: 12mm |
|
|
|
|
XIV: 14mm |
|
|
|
|
XVI, 16mm |
|
|
|
Fluidus |
Aeris / aqua (Conditionalis) / Vacuum |
|
Operating pressura |
0-1.0MPA |
|
Vacuum pressura |
-100kpa (X Torr) |
|
Operating temperatus |
-10-60 ℃ |
|
Materia |
Nylon (PA), Polyurethane (Pu) |
|
Inch Tubus Fit |
Metric fistulam conveniens |

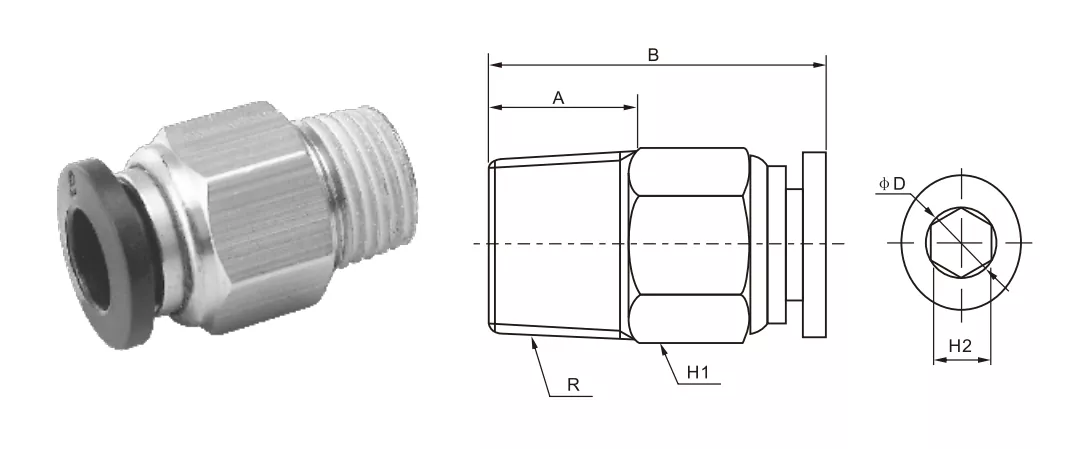

φd |
R |
A |
B |
H1 |
H2 |
|
PC5 / XXXII-M5 |
PC4, M5 |
4 |
M5 |
4.5 |
21.8 |
10 |
2 |
|
PC5 / 32-01 |
PC4-01 |
4 |
R1 / VIII |
6.5 |
20.5 |
10 |
3 |
|
PC5 / 32-02 |
PC4-02 |
4 |
R1 / IV |
9 |
19.5 |
14 |
3 |
|
PC1 / IV-M5 |
PC6, M5 |
6 |
M5 |
4.5 |
22.8 |
12 |
2 |
|
PC1 / 4-01 |
PC6-01 |
6 |
R1 / VIII |
6.5 |
22.2 |
12 |
4 |
|
PC1 / 4-02 |
PC6-02 |
6 |
R1 / IV |
9 |
22.2 |
14 |
4 |
|
PC1 / 4-03 |
PC6-03 |
6 |
R3 / VIII |
10 |
21.5 |
17 |
4 |
|
PC1 / 4-04 |
PC6-04 |
6 |
R1 / II |
10 |
23 |
21 |
4 |
|
PC5 / 16-01 |
PC8--01 |
8 |
R1 / VIII |
8 |
26.8 |
14 |
4 |
|
PC5 / 16-02 |
PC8-02 |
8 |
R1 / IV |
10 |
25.2 |
14 |
6 |
|
PC5 / 16-03 |
PC8-03 |
8 |
R3 / VIII |
10 |
22.2 |
17 |
6 |
|
PC5 / 16-04 |
PC8-04 |
8 |
R1 / II |
11 |
23.7 |
21 |
6 |
|
PC3 / 8-01 |
PC10-01 |
10 |
R1 / VIII |
8 |
30.7 |
17 |
4 |
|
PC3 / 8-02 |
PC10-02 |
10 |
R1 / IV |
10 |
31 |
17 |
6 |
|
PC3 / 8-03 |
PC10-03 |
10 |
R3 / VIII |
10 |
29.5 |
17 |
8 |
|
PC3 / 8-04 |
PC10-04 |
10 |
R1 / II |
11 |
25.2 |
21 |
8 |
|
PC1 / 2-01 |
PC12-01 |
12 |
R1 / VIII |
8 |
31.7 |
19 |
4 |
|
PC1 / 2-02 |
PC12-02 |
12 |
R1 / IV |
10 |
33.2 |
19 |
6 |
|
PC1 / 2-03 |
PC12-03 |
12 |
R3 / VIII |
10 |
30 |
19 |
8 |
|
PC1 / 2-04 |
PC12-04 |
12 |
R1 / II |
11 |
30 |
21 |
8 |
|
|
PC14-03 |
14 |
R3 / VIII |
11 |
38 |
24 |
6 |
|
|
PC14-04 |
14 |
R1 / II |
12 |
39 |
24 |
8 |
|
|
PC16-03 |
16 |
R3 / VIII |
13 |
39 |
24 |
10 |
|
|
PC16-04 |
16 |
R1 / II |
15 |
39 |
27 |
12 |
Quod materia est PC iungo factum est?
aes

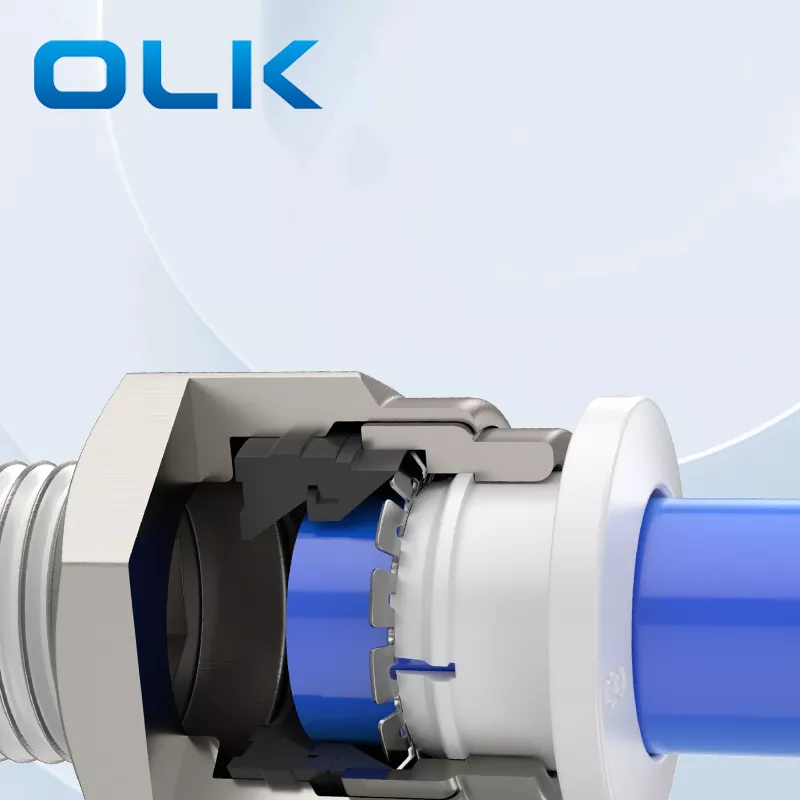

Quid nomina connectens fistulam conveniens partes?
Velox Connectens TUBE Fitting Internum structuram: Release, Zinc Alloy Card Set, Clip Clip Spring, Sleeve Sleeve, Claps Signing Annuli, princeps fortitudinem plastics
Quid genus PC filum est?
Est metrica filum, m repraesentatur.
