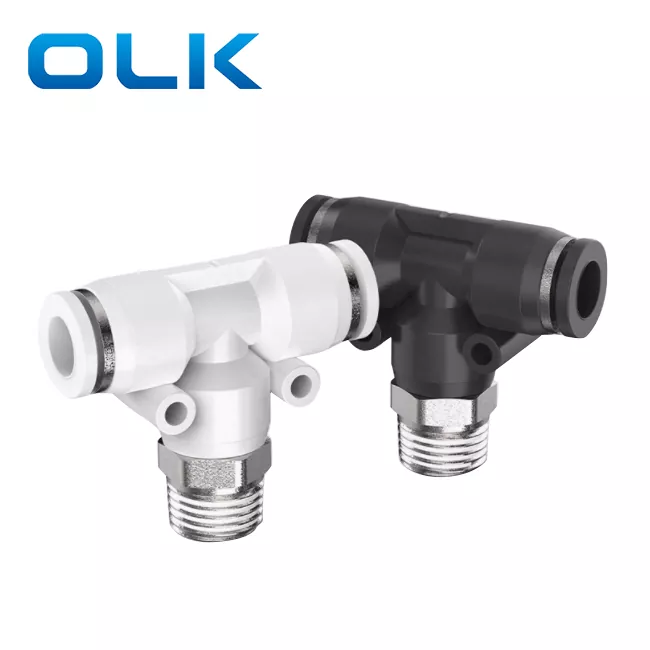

PB genere Tee ventilabis in tube decet est a recta unio dis-in conveniens ad coniungere duo tubulis in pneumatica ratio, cursus lenis airflow et certa signantes.
PB conveniens Key Features: Dis-ad-Iungo ad Velox et Securus installation; recta Dual-finem tube nexu
|
Code |
|||
|
Pb |
8 |
- |
01 |
|
Exemplar |
Tube Size (metrica) |
|
Thread Type (LV ° Recta Tube Thread) |
|
PB series apta |
IV: 4mm |
|
I: G1 / VIII |
|
|
VI, 6mm |
|
II: G1 / IV |
|
|
VIII, 8mm |
|
III: G3 / VIII |
|
|
X: 10mm |
|
IV: G1 / II |
|
|
XII: 12mm |
|
|
|
|
XIV: 14mm |
|
|
|
|
XVI, 16mm |
|
|
|
Fluidus |
Aeris / aqua (Conditionalis) / Vacuum |
|
Operating pressura |
0-1.0MPA |
|
Vacuum pressura |
-100kpa (X Torr) |
|
Operating temperatus |
-10-60 ℃ |
|
Materia |
Nylon (PA), Polyurethane (Pu) |
|

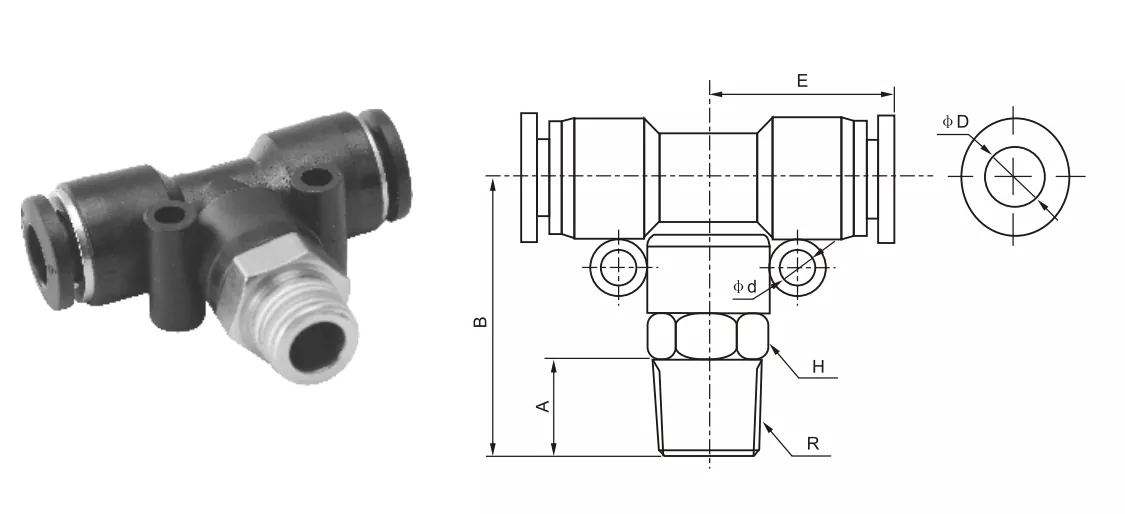

Inch Tubus Fit |
Metri Tubus Fit |
φd |
R |
A |
B |
E |
H2 |
φd |
|
PB5 / XXXII-M5 |
PB4, M5 |
4 |
M5 |
4.5 |
25.4 |
18.6 |
10 |
/ |
|
PB5 / 32-01 |
Pb4-01 |
4 |
R1 / VIII |
7 |
25.4 |
18.6 |
10 |
/ |
|
PB5 / 32-02 |
Pb4-02 |
4 |
R1 / IV |
9 |
27.8 |
18.6 |
14 |
/ |
|
PB1 / IV-M5 |
PB6, M5 |
6 |
M5 |
4.5 |
26.8 |
20.8 |
12 |
3.5 |
|
PB1 / 4-01 |
Pb6-01 |
6 |
R1 / VIII |
6.5 |
37.6 |
20.8 |
12 |
3.5 |
|
PB1 / 4-02 |
Pb6-02 |
6 |
R1 / IV |
9 |
30 |
20.8 |
14 |
3.5 |
|
PB1 / 4-03 |
Pb6-03 |
6 |
R3 / VIII |
10 |
30.6 |
20.8 |
17 |
3.5 |
|
PB1 / 4-04 |
Pb6-04 |
6 |
R1 / II |
10 |
32.5 |
20.8 |
21 |
3.5 |
|
PB5 / 16-01 |
Pb8-01 |
8 |
R1 / VIII |
8 |
31.5 |
22.9 |
14 |
4.5 |
|
PB5 / 16-02 |
Pb8-02 |
8 |
R1 / IV |
10 |
33 |
22.9 |
14 |
4.5 |
|
PB5 / 16-03 |
Pb8-03 |
8 |
R3 / VIII |
10 |
33.6 |
22.9 |
17 |
4.5 |
|
PB5 / 16-04 |
Pb8-04 |
8 |
R1 / II |
11 |
35 |
22.9 |
21 |
4.5 |
|
PB3 / 8-01 |
Pb10-01 |
10 |
R1 / VIII |
8 |
37 |
27.8 |
17 |
4 |
|
PB3 / 8-02 |
Pb10-02 |
10 |
R1 / IV |
10 |
38 |
27.8 |
17 |
4 |
|
PB3 / 8-03 |
Pb10-03 |
10 |
R3 / VIII |
10 |
38 |
27.8 |
17 |
4.5 |
|
PB3 / 8-04 |
Pb10-04 |
10 |
R1 / II |
11 |
39 |
27.8 |
21 |
4.5 |
|
PB1 / 2-01 |
Pb12-01 |
12 |
R1 / VIII |
8 |
37.5 |
29.5 |
19 |
5 |
|
PB1 / 2-02 |
Pb12-02 |
12 |
R1 / IV |
10 |
40 |
29.5 |
19 |
5 |
|
PB1 / 2-03 |
Pb12-03 |
12 |
R3 / VIII |
10 |
40 |
29.5 |
19 |
5 |
|
PB1 / 2-04 |
Pb12-04 |
12 |
R1 / II |
11 |
41 |
29.5 |
21 |
5 |
|
|
Pb14-03 |
16 |
R3 / VIII |
11 |
46.3 |
34.5 |
24 |
4 |
|
|
Pb14-04 |
16 |
R1 / II |
12 |
47.3 |
34.5 |
27 |
4 |
|
Nomen / Type |
Interface structuram descriptio |
|
Run Tee (PD) |
Pelagus Airflow est recta et ramis ducuntur verticaliter |
|
Germen Tee (PB) |
Duo interfaces connexa ad rectos, unum ex genere "T" |
|
Aequalis Tee |
Tria portubus eadem magnitudine |
