PG Reducer Unionis Recta ventilabis in Tube Fitting

Model:PG6-4

Certum esse potes ut PG Redictor Unionis Rectae Ventilabis in Tube Opportunus ex officina nostra emere potes et optimam post venditionem operae et partus opportune tibi offeremus.

Brand:
OLK
Type:
Reducer Union Straight
Color:
Black,White,Blue

Mitte Inquisitionem

depictio producti

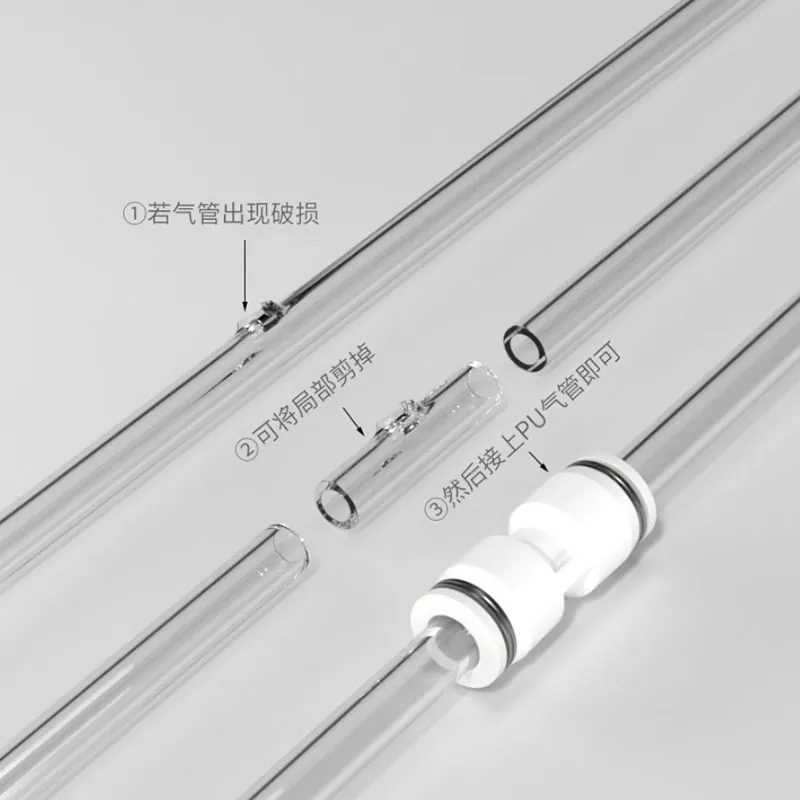

OLK notam PG Reducer Unionis Rectae Ventilabis In Tube Fitting adhibetur ad connectere tubos aereos cum diametris diversis, ut 6mm ad 4mm. Spatia stricta vel cum magnitudine transitus apta est.

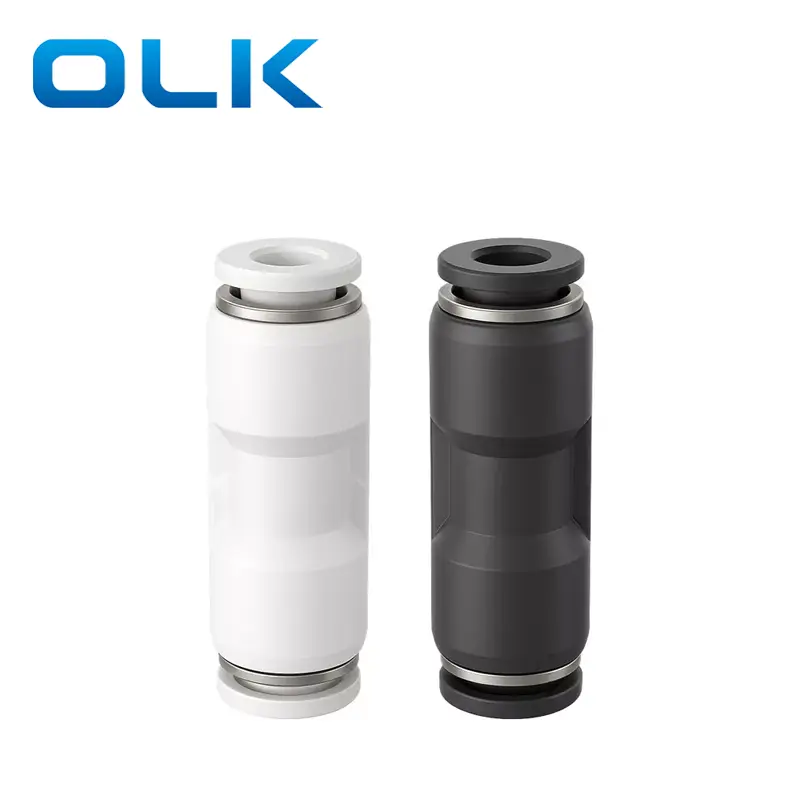

Connector in tribus coloribus praesto est: caeruleo, albo et nigro.

Mandans signum
PG	8	--	01
Exemplar	Tubus magnitudine (metrica)		Tubus magnitudine (metrica)
PG series decorum	4:4mm		4:4mm
	6:6mm		6:6mm
	8:8mm		8:8mm
	10:10mm		10:10mm
	12:12mm		12:12mm
	14:14mm		14:14mm
	16:16mm		16:16mm

PG Reducer Unionis Recta ventilabis in Tube Fitting General basic parametri

Liquor	Aer / aqua (conditionalis) / vacuum
Operans pressura	0-1.0Mpa
Vacuum pressura	-100Kpa(10 Torr)
operating temperatus	-10-60℃
Materia	NYLON(PA), Polyurethane(PU)

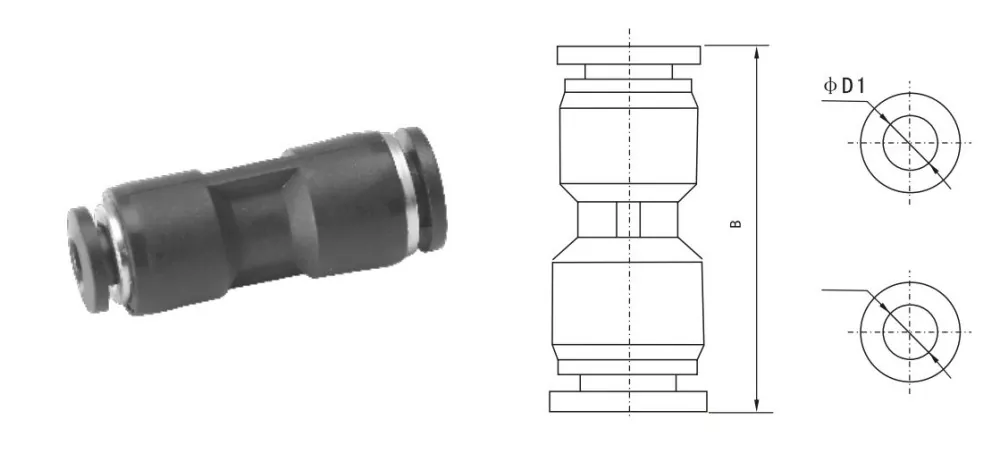

PG Reducer Unionis Recta ventilabis in Tube Fitting Outline dimensio parametri

Tubus inch Fitting	MetricTube Fitting	φD1	φD2	B
PG1/4-5-32	PG6-4	6	4	35
PG5/16-1/4	PG8-6	8	6	35.5
PG3/8-5/16	PG10-8	10	8	38
PG1/2-13/8	PG12-10	12	10	47
	PG16-12	12	12	47.5
PG2/6-5/32	PG8-4	8	4	47.5
PG3/8-1/4	PG8-4	10	6	67
PG1/2-5/16	PG12-8	12	8	67

Communia Imperial Thread Size Conversion Reference
Imperial Size	Proxime. Metrica (mm)	Formula Conversionis
1/8	3.2mm	1÷8×25.4=3.175
5/32	3.97mm	5÷32× 25.4=3.97
1/4	6.35mm	1÷4×25.4=6.35
5/16	7.94mm	5÷16×25.4=7.94
3/8	9.53mm	3÷8× 25.4=9.53
1/2	12.7mm	1÷2× 25.4= 12.7
