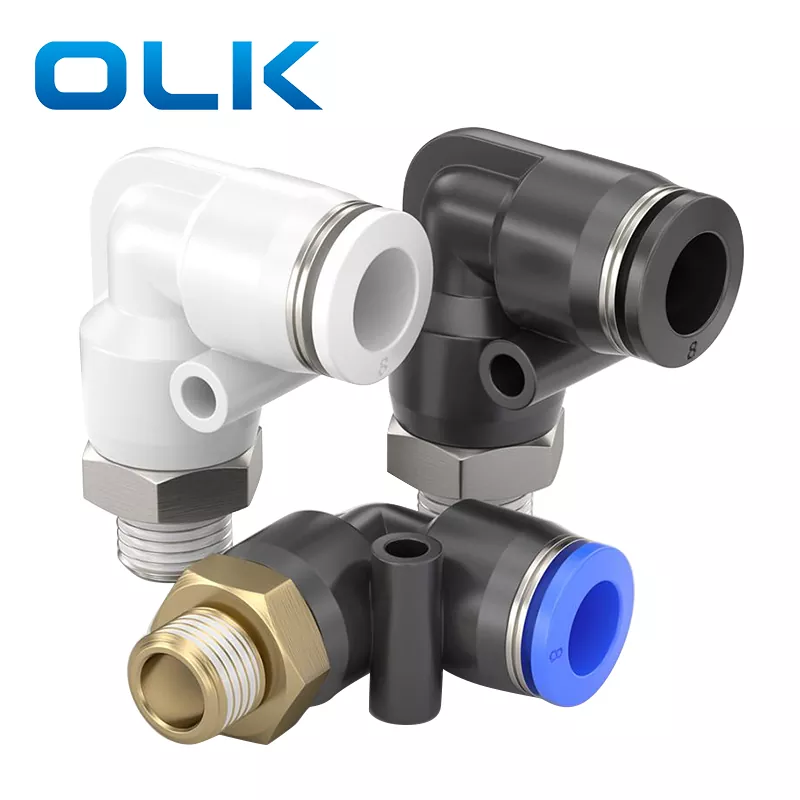

L Type Elbow BSPT Male ThreadColor:
Black,White,BlueCubitus PL masculinus ventilabis in Tube Fitting est 90-gradus iungentis cubiti specimen pro usu in spatiis angustiis aut ubi redirectio Tubing requiritur.
Productum lineamenta: Foedus structuram, spatiis aptum;
|
Mandans signum |
|||
|
PL* |
8 |
-- |
01 |
|
Exemplar |
Tubus magnitudine (metrica) |
|
Thread genus (55° linum rectum) |
|
|
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
|
Liquor |
Aer / aqua (conditionalis) / vacuum |
|
Operans pressura |
0-1.0Mpa |
|
Vacuum pressura |
-100Kpa(10 Torr) |
|
operating temperatus |
-10-60℃ |
|
Materia |
NYLON(PA), Polyurethane(PU) |
|
Tubus inch Fitting |
Tubus metricus Fitting |

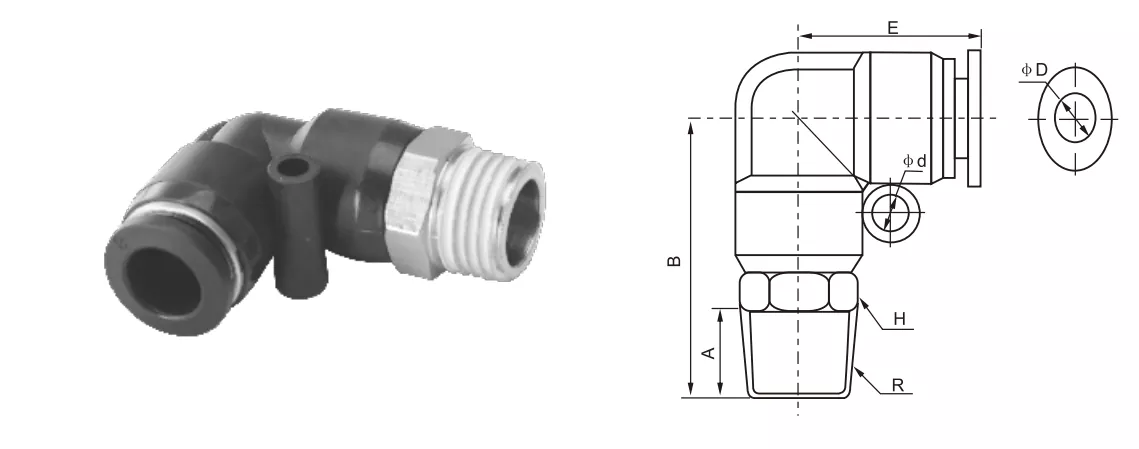

φD |
R |
A |
B |
H |
E |
φd |
|
PL5/32-M5 |
PL4-M5 |
4 |
M5 |
4.5 |
25 |
10 |
19.7 |
/ |
|
PL5/32-01 |
PL4-01 |
4 |
R1/8 |
7 |
26.5 |
10 |
19.7 |
/ |
|
PL5/32-02 |
PL4-02 |
4 |
R1/4 |
9 |
28 |
14 |
19.7 |
/ |
|
PL1/4-M5 |
PL6-M5 |
6 |
M5 |
4.5 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-01 |
PL6-01 |
6 |
R1/8 |
7 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-02 |
PL6-02 |
6 |
R1/4 |
9 |
29.5 |
14 |
20.8 |
3.5 |
|
PL1/4-03 |
PL6-03 |
6 |
R3/8 |
10 |
30.5 |
17 |
20.8 |
3.5 |
|
PL1/4-04 |
PL6-04 |
6 |
R1/2 |
11 |
32 |
21 |
20.8 |
3.5 |
|
PL5/16-01 |
PL8-01 |
8 |
R1/8 |
8 |
31.7 |
14 |
23.5 |
4.5 |
|
PL5/16-02 |
PL8-02 |
8 |
R1/4 |
10 |
33.8 |
14 |
23.5 |
4.5 |
|
PL5/16-03 |
PL8-03 |
8 |
R3/8 |
10 |
33.8 |
17 |
23.5 |
4.5 |
|
PL5/16-04 |
PL8-04 |
8 |
R1/2 |
11 |
35.5 |
21 |
23.5 |
4.5 |
|
PL3/8-01 |
PL10-01 |
10 |
R1/8 |
8 |
35.5 |
17 |
27.4 |
4.5 |
|
PL3/8-02 |
PL10-02 |
10 |
R1/4 |
10 |
37.5 |
17 |
27.4 |
4.5 |
|
PL3/8-03 |
PL10-03 |
10 |
R3/8 |
10 |
38 |
17 |
27.4 |
4.5 |
|
PL3/8-04 |
PL10-04 |
10 |
R1/2 |
11 |
38.6 |
21 |
27.4 |
4.5 |
|
PL1/2-01 |
PL12-01 |
12 |
R1/8 |
8 |
38 |
19 |
30.3 |
5 |
|
PL1/2-02 |
PL12-02 |
12 |
R1/4 |
10 |
39.5 |
19 |
30.3 |
5 |
|
PL1/2-03 |
PL12-03 |
12 |
R3/8 |
10 |
40.5 |
19 |
30.3 |
5 |
|
PL1/2-04 |
PL12-04 |
12 |
R1/2 |
11 |
42 |
21 |
30.3 |
5 |
|
|
PL14-03 |
14 |
R3/8 |
12 |
42.5 |
24 |
30.3 |
4 |
|
|
PL14-04 |
14 |
R1/2 |
15 |
45 |
24 |
30.3 |
4 |
|
|
PL16-03 |
16 |
R3/8 |
15 |
50 |
24 |
34 |
4 |
|
|
PL16-04 |
16 |
R1/2 |
15 |
50.5 |
27 |
34 |
4 |
|
Nomen / genus |
Interface Structure Description |
|
Cubitus PC |
Tibia iunctura flectitur ad angulum 90°, et alter finis est interne stamineus |
|
PL Cubitus |
Finis unus insertus est, alter finis externum stamina 90° habet |
|
PV Cubitus |
Uterque fines tubus typum inserendi sunt, cum 90° inflexio |
Quae materia est PL iungo facta?
cuprum

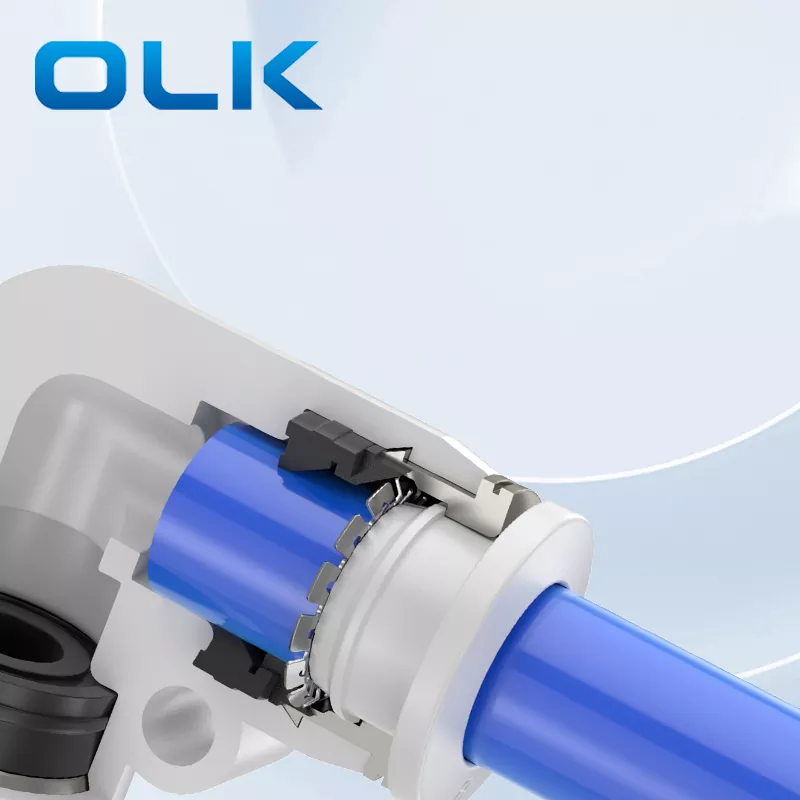

Quae sunt nomina tubi connectentis partes convenientes?
Velox connectens tubus apta structura interna: Dimitte, zincum stannum card set, cincinno tonde ver, cincinno manica, fibula anulum signans, altum robur materias materias
Quod genus PL filum est?
Est filum metricum, M significat.
Quid significat ' Cubitus' in pneumatico conveniens?
Cubitus Fitting：A pneumatica conveniens est, quae fistulam ad directionem mutare permittit, fere ad 90-gradum angulum.
