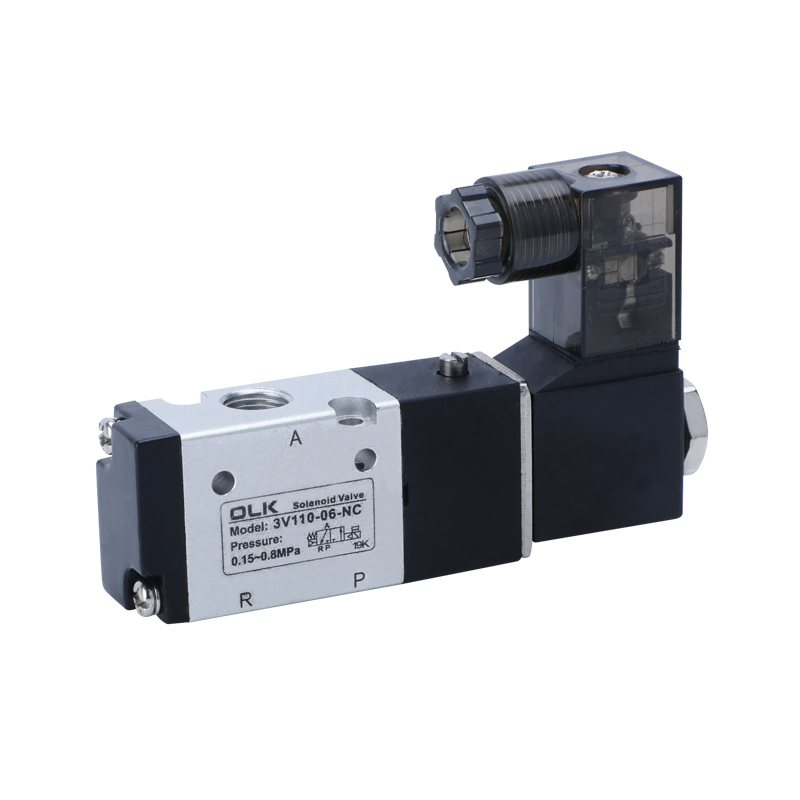

3V Series Solenoid CYMBALON III via

Model:3V210

Vos can requiem certo emere 3V series solenoid valvae III via ex officina et faciemus tibi optimis post-sale servitium et opportune partus.

Mitte Inquisitionem PDF Download

depictio producti

Et oleikai (Olk) 3V Series solenoid valvae III via, pertinet ad gubernator-operated solenoid directional valvae genus, featuring ieiunium responsio celeritate et certa operatio, idoneam ad moderantum celeritate et certa operatio, idoneam ad moderantum celeritate et certa operatio, idoneam ad moderantum unum-agens cylindra. Valvae corpus est de corrosio repugnant, summus temperatus repugnans aluminium mixtum, faciens idoneam usum variis dura ambitus.

Potest matched cum industriae automation missionibus, ut fluidi imperium et conversionem in variis automated productio lineae, pneumaticae apparatu, medicinae cogitationes, etc.

Symbolum:

Oleikai gubernator, operated 3V serie solenoid valvae III modo productum characteres

I. Direct, agens configuratione, responsurum switching;

II. Options available for Northmanni clausa et Northmanni aperiam genera;

III. Coaxial clausa-off structuram, optimum obsignationem, magna fluunt rate;

IV. Non opus est oleum lubricatae;

V. Instructa manual fabrica facile installation et debugging;

VI. Multiple Latin Voltage Grades sunt available for Electio.

3V series solenoid valvae III modo generalis parametri data:

opus medium	Air (percolantur per filter super 40μm)
Actus	Gubernator type
numerum positions	Duo positio tribus
lubricus	necesse
Opus pressura range MPA (Psi)	0.15~0.8 (XXI ~ CXIV)
Guaranteed pressura resistentia	1.5MPA (215Psi)
Corporis materia	Aluminium Alloy
Vexillum voltage	AC220V, Ac110V, AC24V, DC24V, DC12V
Uti voltage range	Action: ± XV% DC: ± X%
tutela gradu	Ip65 (din40050)
Aestus resistentia gradu	Classis b
Nexu type	Din Servket Type, Outlet Type
Excitationem Tempus	0.05 seconds minusve

3V Series solenoid valvae III modo diversis parametri

exemplar	Portus	Working Temperature ° C	Max operating frequency	Fluxus crucem-sectional area mm² (cv valorem)	potentiam consummatio
3v110-M5	M5	-20 ~770	V temporibus / secundi	5.5 (0,31)	AC: 3VA DC: 3W
3v120, M5	M5	-20 ~770	V temporibus / secundi	5.5 (0,31)	AC: 3VA DC: 3W
3v110-06	G1 / VIII	-20 ~770	V temporibus / secundi	12.0 (0.67)	AC: 3VA DC: 3W
3v120-06	G1 / VIII	-20 ~770	V temporibus / secundi	12.0 (0.67)	AC: 3VA DC: 3W
3v210-06	= Intrak = Outlet G1 / VIII	-20 ~770	V temporibus / secundi	14.0 (0.78)	AC: 6VA DC: 4.8W

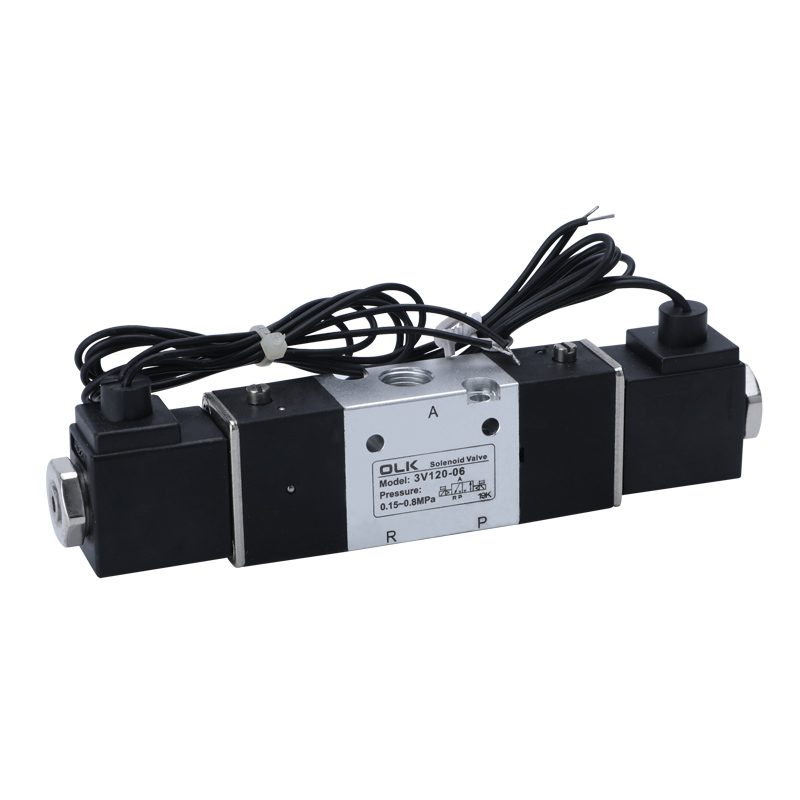

3v220-06	= Intrak = Outlet G1 / VIII	-20 ~770	V temporibus / secundi	14.0 (0.78)	AC: 6VA DC: 4.8W

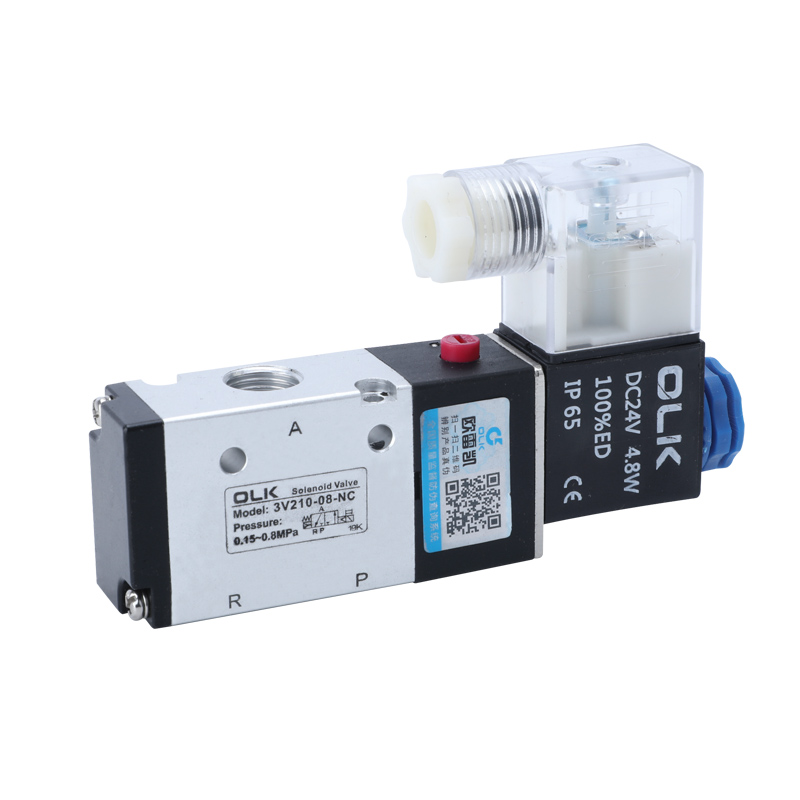

3v210-08	= G1 intake = Outlet / IV	-20 ~770	V temporibus / secundi	16.0 (0.89)	AC: 6VA DC: 4.8W

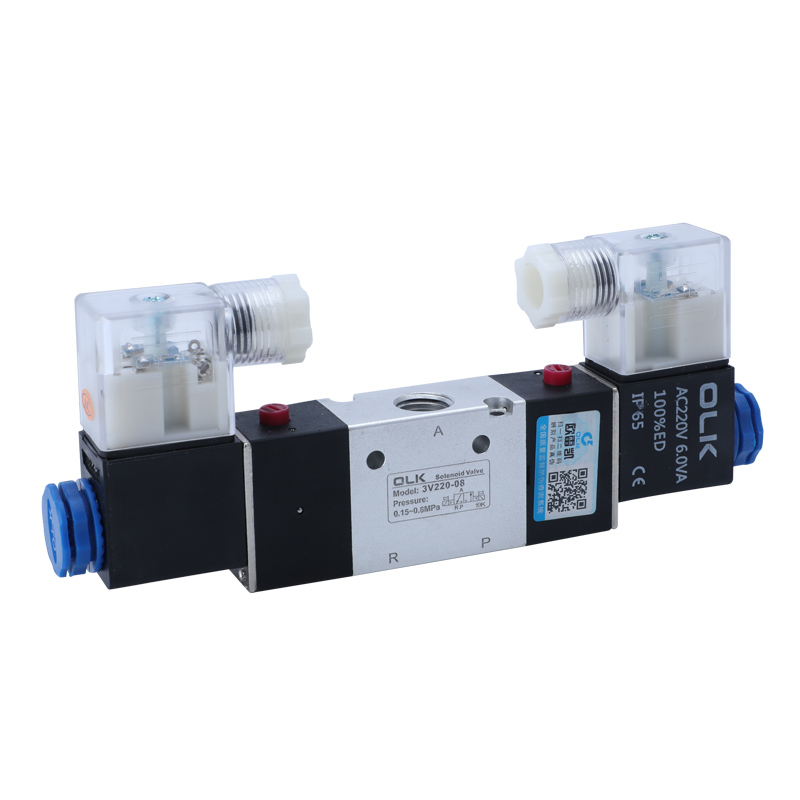

3v220-08	= G1 intake = Outlet / IV	-20 ~770	V temporibus / secundi	16.0 (0.89)	AC: 6VA DC: 4.8W
3v310-08	= G1 intake = Outlet / IV	-20 ~770	V temporibus / secundi	25.0 (1.39)	AC: 6VA DC: 4.8W
3v320-08	= G1 intake = Outlet / IV	-20 ~770	V temporibus / secundi	25.0 (1.39)	AC: 6VA DC: 4.8W
3v310-10	= Intrak = Outlet G3 / VIII	-20 ~770	V temporibus / secundi	30.0 (1.67)	AC: 6VA DC: 4.8W
3v320-10	= Intrak = Outlet G3 / VIII	-20 ~770	V temporibus / secundi	30.0 (1.67)	AC: 6VA DC: 4.8W
3v410-15	= G1 intake = Outlet / II	-5~60	III tempora / secundi	50.0 (2.79)	AC: 6VA DC: 4.8W
3v420-15	= G1 intake = Outlet / II	-5~60	III tempora / secundi	50.0 (2.79)	AC: 6VA DC: 4.8W
