3V100 Series Solenoid Valvae 3 Way

Model:3V210

Grata ad Lupum 3V100 Series Solenoid Valvae 3 Via a nobis, omnis postulatio clientium intra 24 horas respondetur. OLK fabrica professio est, 3V100 seriem tibi praebere velimus, tibique optimam post venditionem servitii ac partus opportune offeremus.

Mitte Inquisitionem

depictio producti

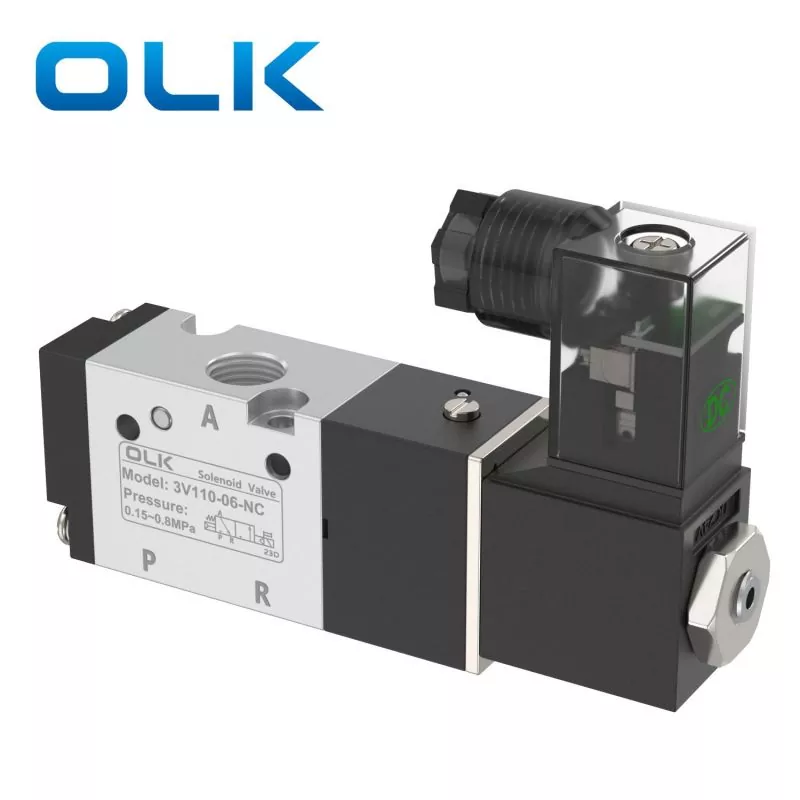

OLK 3V100 Series Solenoid Valvae 3 Via, gubernator est in typo.the responsio celeritas velocior et operatio certior. Apta moderandis cylindris pneumaticis simplicibus agendis. valvae corpus quale aluminium mixturae materiale altum est et renitens., quod in variis ambitibus asperis usibus idoneum facit.

Adaequari potest cum missionibus automation industrialibus, sicut fluida moderatio et conversio in variis lineis productionis automated, apparatu pneumatico, machinis medicinis, etc.

Ordinare Code

3V	1	10	6	NO
Exemplar	Code	valvae genus	portum magnitudine	Genus actio
3V:3/2 modo valvae solenoidei	1:100 series	10: unum solenoid 5/2	M5:M5	NC: Northmanni clausi
		20: duplex solenoid vlave 5/2	06:G1/8	NO: Northmanni aperta

3V series valvae solenoidalis 3 modo data parametri:

Exemplar	3V110-M5	3V120-M5	3V110-06	3V120-06
medium opus	Air（Filter per filtrum velum supra 40μm）
Action mode	Internum Gubernator Type

portum magnitudine	M5		G1/8
Effective crucis-Lorem area	5.5mm²（Cv=0.31）		12.0mm²（Cv=0.67）
positiones	3/2 Port
Pressura range	0.15-0.8 MPa (21-114psi)
Probatur pressura	1.5MPa (215psi)
evigilans Pressura	'-20-70
Corpus Material	Aluminium Alloy

3/2 via 3V100 valvae solenoidei LINEA / DIN genus voltage elige

3V110-06 AC24V	3V110-06 AC110V	3V110-06 AC220V	3V110-06 DC220V	3V110-06 DC24V
3V110-M5 AC24V	3V110-M5 AC110	3V110-M5 AC220V	3V110-M5 DC220V	3V110-M5 DC24V
3V120-06 AC24V	3V120-06 AC110V	3V120-06 AC220V	3V120-06 DC220V	3V120-06 DC24V
3V120-M5 AC24V	3V120-M5 AC110V	3V120-M5 AC220V	3V120-M5 DC220V	3V120-M5 DC24V
