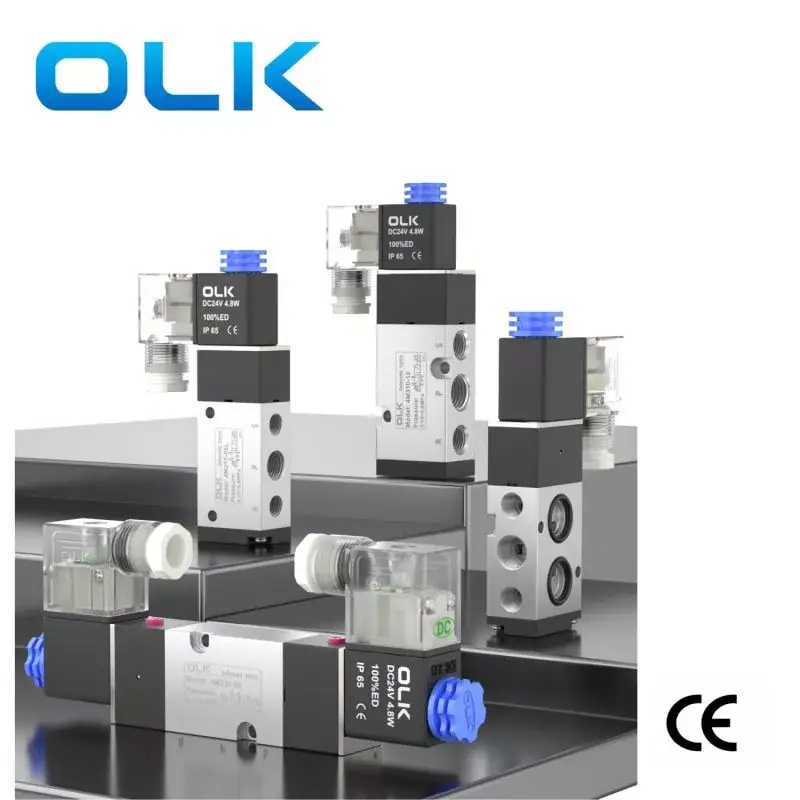

4m Series solenoid valvae V modo

Model:4M210-08

Olk est unum de celebre Sinis Pneumatica Solenoidal CYMBALON Art Print. Nostra factory specialitas in vestibulum 4m Namur valvae V modo. Welcome to Buy 4M Series solenoid valvae V modo a Olk. Omne petitionem a customers est respondit intra XXIV horas.

Mitte Inquisitionem PDF Download

depictio producti

Et oleikai (Olk) 4m series direct-Sales duo-positus quinque-via solenoid directional valvulae utilitas gubernator-operated potestate, featuring ieiunium responsio duplex et certa operatio, idoneam ad moderantum duplex agens cylindra. Et ora est cum Ed logo, permittens continuum virens extensa tempora. Duplex caput duo positio solenoid valvae habet memoriam munus. Crassis valvae corpus subit durum oxidatio augendae superficiem duritiam. Ante usum, placere inspicere valvae et pipeline ut sint integrum et Leak-liberum ne afficiens normalis operationem de valvae.

4m Namur solenoid directional valvae est variante de 4v solenoid valvae, cum eodem principio ad 4v. Secundum diversas installation requisita, in 4m serie solenoid valvae V modo mutatio aliquos interface et adscendens foraminis. Ouleikai (Olk) Pneumaticae societas praebet varietate specifications et exempla in occursum diversis mos necessitates, providing customizable servicia.

Oleikai featuring ieiunium responsio celeritas 4m Namur CYMBALON V modo CE Certificate productum characteres

Product Features:

I. Internally gubernator, operated structuram.

II. Piston-genus structuram, iactantia praeclara signa et responsive reactionem.

III. Duplex caput II-positus solenoid valvae cum memoria munus.

IV. Internum foramina processionaliter cum speciali artes, unde in minimal frictional resistentia, humilis incipiens aere pressura et extenditur lifespan.

V. Non opus lubricatae.

VI. Latus laminam ascendens, enabling recta nexu cum valvae actuator.

VII. Instructus manual fabrica pro convenient installation et debugging.

VIII. Voltage AC220V; ac110; AC24V, DC24V; DC12V pro Electio.

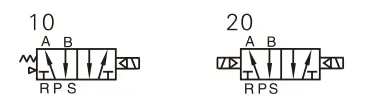

4M Namur valvae Symbolum:

4M Namur CYMBALON V modo CE Certificatorium General parametri

opus medium	Air (percolantur per filter super 40μm)
Actus	Gubernator type
numerum positions	II Position V modo
lubricus	necesse
Opus pressura range MPA (Psi)	0.15~0.8 (XXI ~ CXIV)
Guaranteed pressura resistentia	1.5MPA (215Psi)
Working Temperature ° C	-20 ~770
Corporis materia	Aluminium Alloy
Vexillum voltage	AC220V, Ac110V, AC24V, DC24V, DC12V
Uti voltage range	Action: ± XV% DC: ± X%
potentiam consummatio	AC: 6VA DC: 4.8W
tutela gradu	Ip65 (din40050)
Aestus resistentia gradu	Classis b
Nexu type	Din Servket Type, Outlet Type
Excitationem Tempus	0.05 seconds minusve

4m Namur CYMBALON V modo CE CertificedAmz

exemplar	Portus	Max operating frequency	Fluxus crucem-sectional area mm² (cv valorem)
4m210-06	= G1 intake / VIII	V temporibus / secundi	14.0 (0.78)
4m220-06	= G1 intake / VIII	V temporibus / secundi	14.0 (0.78)
4m210-08	= G1 intake / IV exhauriunt = G1 / VIII	V temporibus / secundi	16.0 (0.89)
4m220-08	= G1 intake / IV exhauriunt = G1 / VIII	V temporibus / secundi	16.0 (0.89)
4M310-08	= G3 intake / VIII exhaust = G1 / IV	IV / sec	25.0 (1.40)
4m320-08	= G3 intake / VIII exhaust = G1 / IV	IV / sec	25.0 (1.40)

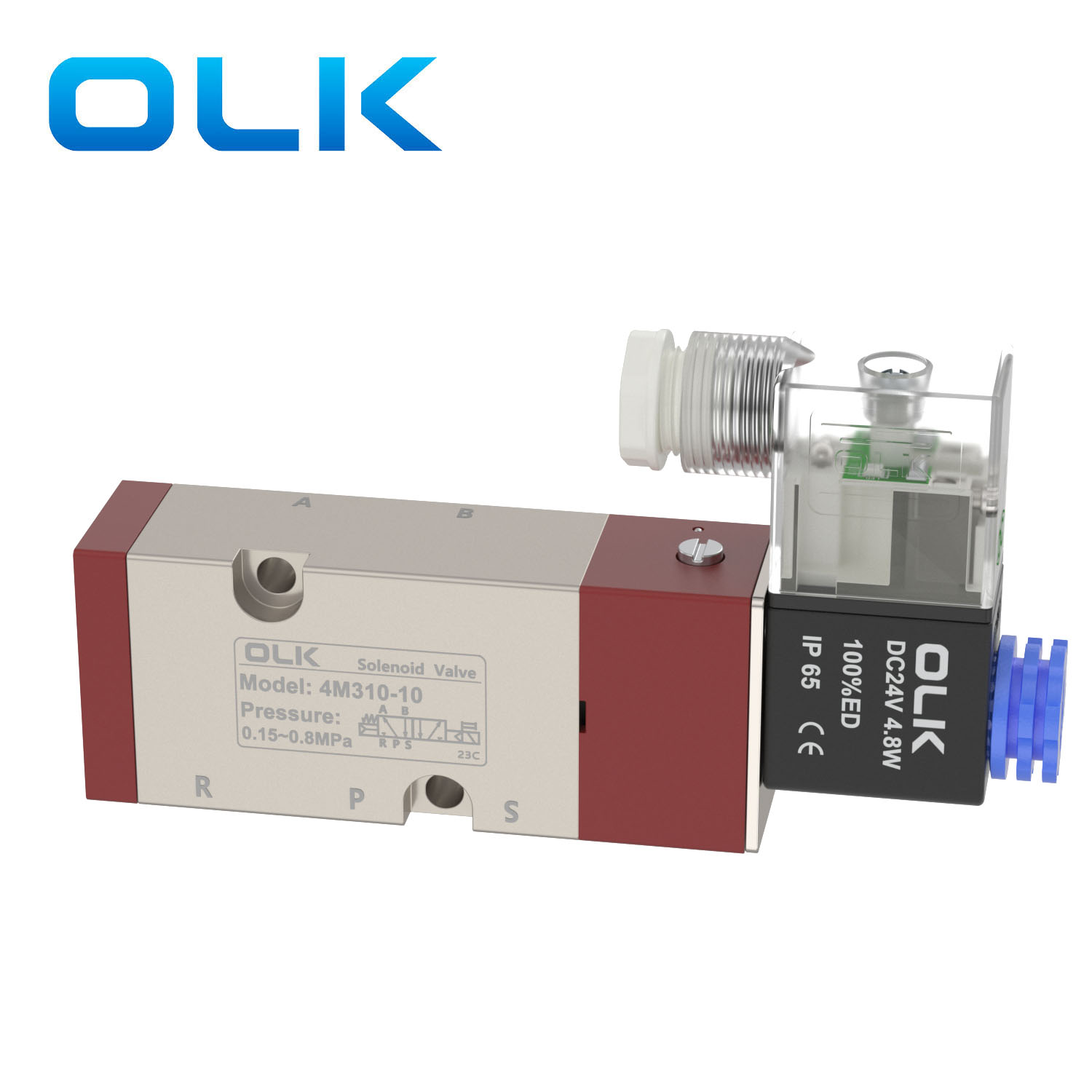

4m310-10	= G1 intake / IV	IV / sec	XXX (1.68)
4m320-10	= G1 intake / IV	IV / sec	XXX (1.68)

Application:

Hoc genus 4v namur valvae aut 4V series laminam valvae potest directe installed in valvae actuators (ut pneumatic actuators) sine necessitate ad additional in Pneumatica Imperium System

Communiter ad moderantum aperire et claudendo de pneumatic actuators, praesertim papilio valvulae et pila valvulae.

Institutionem instructiones:

Primo fac ad valvae actuator habet enim Namur interface et installation foramen Distance.Then align 4m Namur Solenoidal CYMBALON INSPELLATION et Outlet portus cum actuator et obstringere institutionem Cochleas.

Perficite caeli ratio est correct.finally, premere manual override de solenoid valvae ut reprehendo si papilio valvae scriptor gubernaculo munus est verum.

FAQs:

1.What modo 4V "Namur" valvulae?

Eius installation superficiem, screw foraminis magnitudine, et pneumatic interface propinquis cum Namur signa.

II. Quid est differentia inter valvae actuator et 4v namur valvae?

4v Namemur Solenoidal CYMBALONALIS Actuator Working.Valve Actuator Control Papfly valvae aut pila valvae operantes.

III. Quomodo autem valvae regitur per actuator opus?

Una agens actuator: solenoid valvae est ventilari, propellentibus actuator Piston movere et internum vere automatically resets.

Duplici agens Actuator: Solenoidal valvae controls duo caeli portubus, et actuator tendat piston deinceps vel retrorsum ad switch aperire et claudendo papilio valvae

IV. Quid est pneumatica actuator valvae?

Pneumaticae actuator valvae est imperium valvae repulsi per compressum aeris, propter foramen, claudendo vel regulans fluidum fluunt in pipelines.

V. Quid sunt tres genera actuators?

Pneumaticae actuator, electrica actuator, Hydraulicarum actuator
