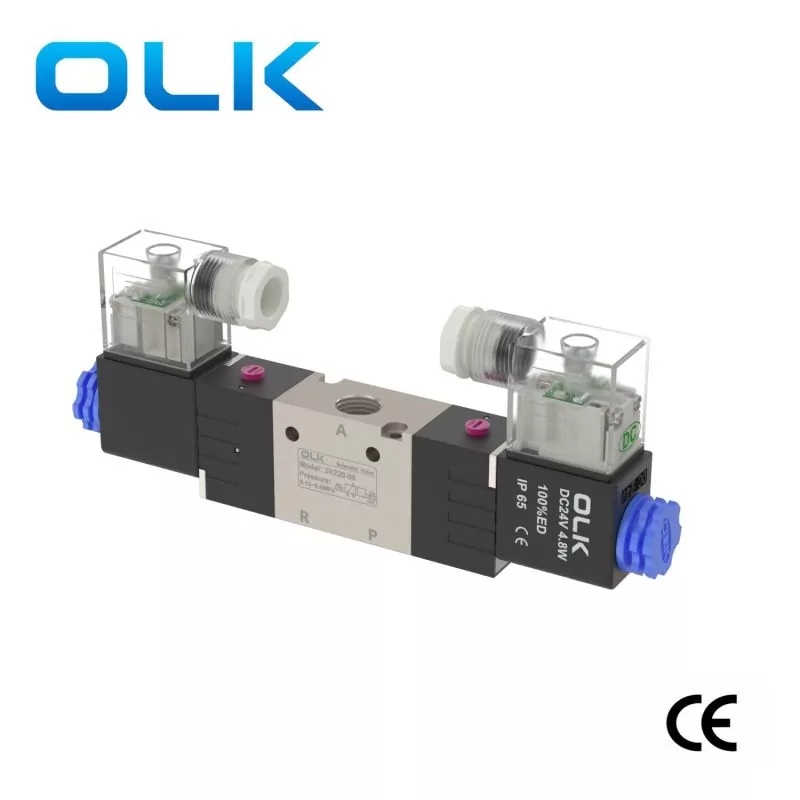

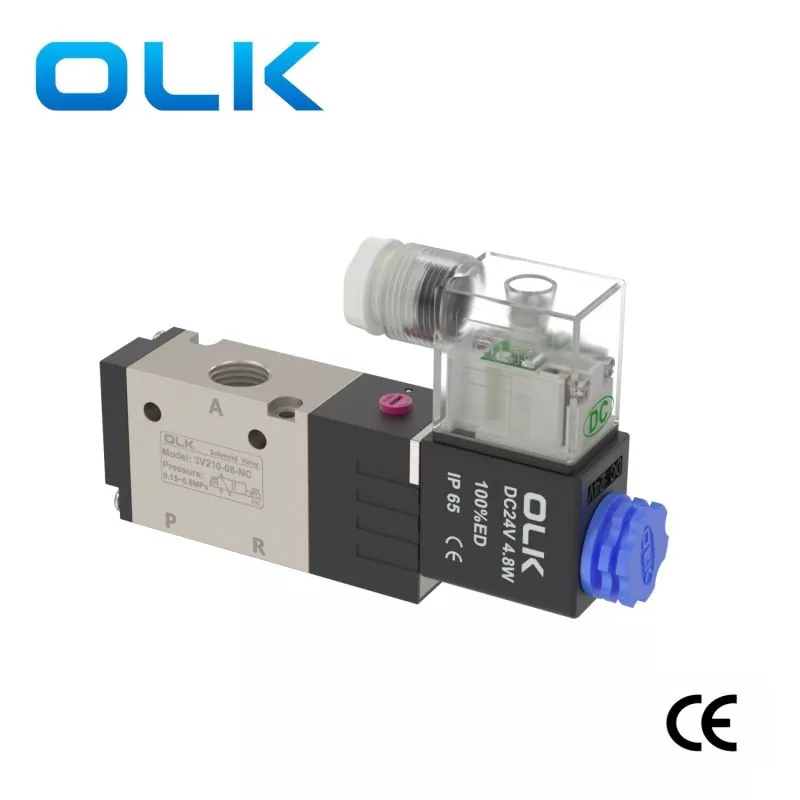

3v200 Series Solenoid Valvae 3 Way

Model:3V200

Pro professionalis 3/2 modo valvae solenoidis aeris fabricare, certi quiescere potes 3v200 Series Valvae Solenoidis 3 Viam ex officina nostra et OLK tibi offerent optimam post venditionem servitii et partus opportune.

Mitte Inquisitionem

depictio producti

OLK 3V200 series,3positio 2 via aeris valvae solenoidis adhibita aluminium mixturae qualitatis princeps. Variis duris fabricandis ad usum aptae.

Ordinare Code

3V	2	10	8	NO
Exemplar	Code	valvae genus	portum magnitudine	Genus actio
3V:3/2 modo valvae solenoidei	2:200 series	10: unum solenoid 5/2	06:G1/8	NC: Northmanni clausi
		20: valvulae solenoides duplex 5/2	08:G1/4	NO: Northmanni aperta

Series 3V200 valvae solenoidalis 3 modo data parametri:

Exemplar	3V210-06	3V220-06	3V210-08	3V220-08
medium opus	Air（Filter per filtrum velum supra 40μm）
modus agendi	Internum Gubernator Type
portum magnitudine	M5Inlet=Outlet=G1/8		Inlet=Outlet=G1/4
Effective crucis-Lorem area	14mm²（Cv=0.78）		16.0mm²（Cv=0.89）
positiones	3/2 Port
Pressura range	0.15-0.8 MPa (21-114psi)
Probatur pressura	1.5MPa (215psi)
evigilans Pressura	'-20-70
Corpus Material	Aluminium Alloy
Lubricatio	Nullam eget

3/2 via 3V200 valvae solenoidicae LINEA / DIN genus voltage elige

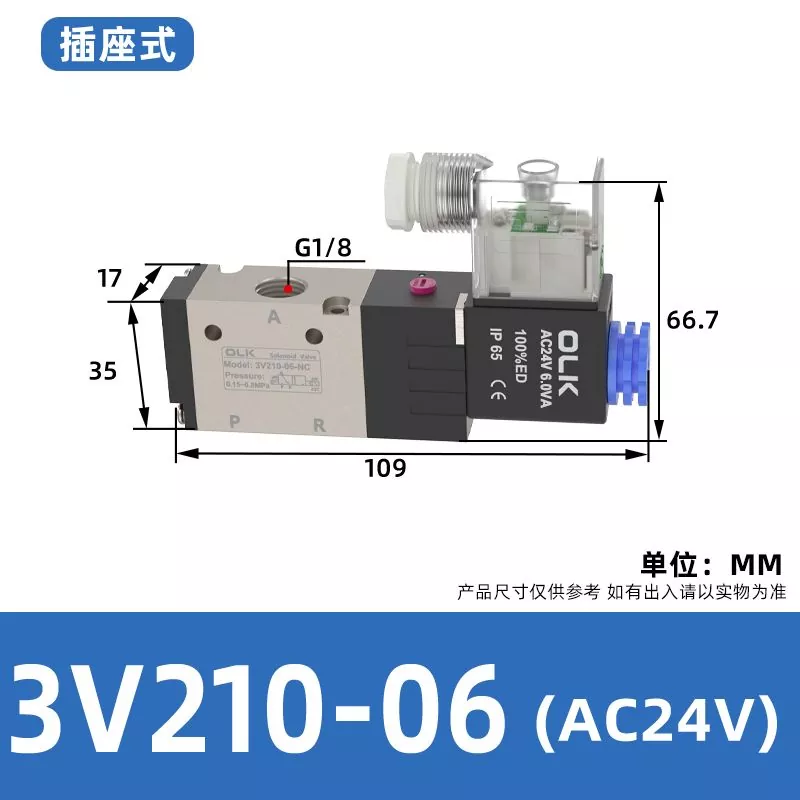

3V210-06 AC24V	3V210-06 AC110V	3V210-06 AC220V	3V210-06 DC220V	3V210-06 DC24V
3V210-08 AC24V	3V210-08 AC110	3V210-08 AC220V	3V210-08 DC220V	3V210-08 DC24V
3V220-06 AC24V	3V220-06 AC110V	3V220-06 AC220V	3V220-06 DC220V	3V220-06 DC24V
3V220-08 AC24V	3V220-08 AC110V	3V220-08 AC220V	3V220-08 DC220V	3V220-08 DC24V
