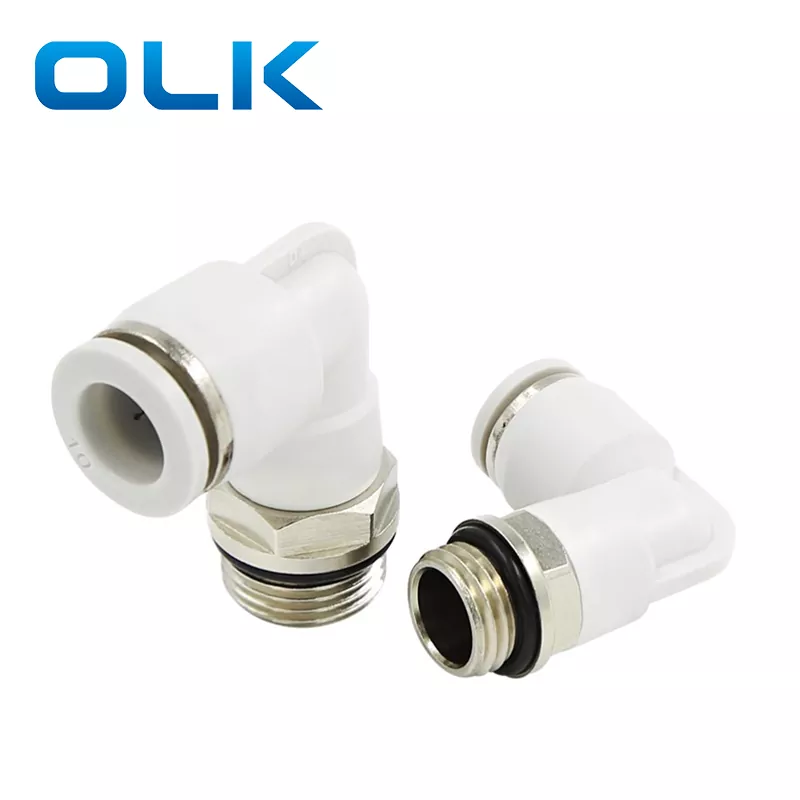

In PL-G masce cubito ventilabis in tube decet est a XC-gradu cubitus iungo et g sequela ad usum in angustiis aut ubi tubing redirection est required.equapped cum signantes annulos ne aeris aut fluidum lacus.
Product Features: Compacta structuram, idoneam ad parva spatia; angulus gubernaculo consilio convenient ad arteriam wiring
|
Code |
|||
|
PL |
8 |
- |
G01 |
|
Exemplar |
Tube Size (metrica) |
|
Thread Type (LV ° Recta Tube Thread) |
|
|
IV: 4mm |
|
I: G1 / VIII |
|
|
VI, 6mm |
|
II: G1 / IV |
|
|
VIII, 8mm |
|
III: G3 / VIII |
|
|
X: 10mm |
|
IV: G1 / II |
|
|
XII: 12mm |
|
|
|
|
XIV: 14mm |
|
|
|
|
XVI, 16mm |
|
|
|
Fluidus |
Aeris / aqua (Conditionalis) / Vacuum |
|
Operating pressura |
0-1.0MPA |
|
Vacuum pressura |
-100kpa (X Torr) |
|
Operating temperatus |
-10-60 ℃ |
|
Materia |
Nylon (PA), Polyurethane (Pu) |
|
|

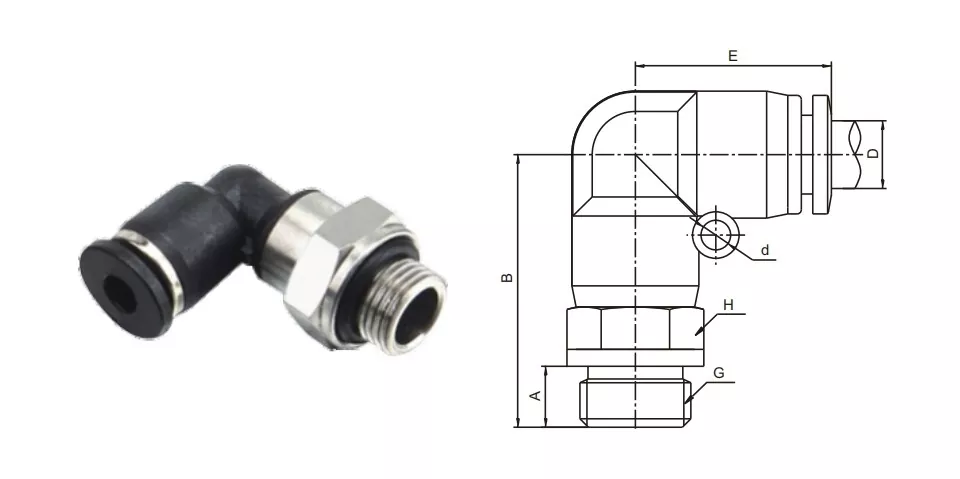

D |
G |
A |
B |
E |
H |
d |
|
PL4, G01 |
4 |
G1 / VIII |
6 |
24 |
19.7 |
14 |
- |
|
PL4, G02 |
G1 / IV |
8 |
25 |
19.7 |
17 |
- |
|
|
Pl6, G01 |
6 |
G1 / VIII |
6 |
24 |
20.8 |
14 |
3.5 |
|
Pl6, G02 |
G1 / IV |
8 |
25 |
20.8 |
17 |
3.5 |
|
|
Pl6, G03 |
G3 / VIII |
10 |
25 |
20.8 |
20 |
3.5 |
|
|
Pl6, G04 |
G1 / II |
12 |
25 |
20.8 |
24 |
3.5 |
|
|
PL8, G01 |
8 |
G1 / VIII |
6 |
25 |
23.5 |
14 |
4.5 |
|
Pl8, G02 |
G1 / IV |
8 |
25 |
23.5 |
17 |
4.5 |
|
|
Pl8, G03 |
G3 / VIII |
10 |
26 |
23.5 |
20 |
4.5 |
|
|
Pl8, G04 |
G1 / II |
12 |
29 |
23.5 |
24 |
4.5 |
|
|
PL10-G01 |
10 |
G1 / VIII |
6 |
29 |
27.4 |
14 |
4.5 |
|
PL10-G02 |
G1 / IV |
8 |
29 |
27.4 |
17 |
4.5 |
|
|
PL10-G03 |
G3 / VIII |
10 |
30 |
27.4 |
20 |
4.5 |
|
|
PL10-G04 |
G1 / II |
12 |
31 |
27.4 |
24 |
4.5 |
|
|
PL12, G02 |
12 |
G1 / IV |
8 |
31 |
30.3 |
17 |
5 |
|
PL12, G03 |
G3 / VIII |
10 |
33 |
30.3 |
20 |
5 |
|
|
PL12, G04 |
G1 / II |
12 |
33 |
30.3 |
24 |
5 |
|
|
PL16, G03 |
16 |
G3 / VIII |
10 |
43 |
34 |
24 |
4 |
|
PL16, G04 |
G1 / II |
12 |
45 |
34 |
24 |
4 |
|
Nomen / Type |
Interface structuram descriptio |
|
PC cubitus |
Et pipe iuncturam flectitur ad XC ° angle, et alterum finem est interius fila |
|
PL cubitus |
Una finis inseritur et alia finis habet externum filum XC ° |
|
PV cubito |
Tum fines et fistulam insertion type, cum XC ° flectere |
Quod materia est PL iungo factum est?
aes
Quid nomina connectens fistulam conveniens partes?

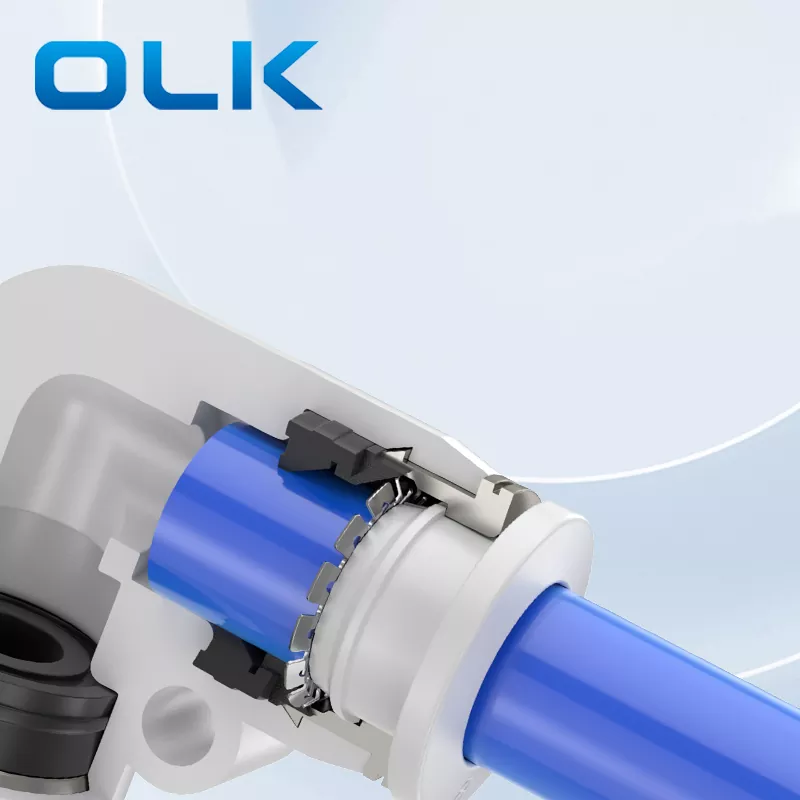

Velox Connectens TUBE Fitting Internum structuram: Release, Zinc Alloy Card Set, Clip Clip Spring, Sleeve Sleeve, Claps Signing Annuli, princeps fortitudinem plastics
Quod genus PL filum est?
Est metrica filum, m repraesentatur.
Quid significat 'cubito' in Pneumatic conveniens?
Cubitus apta: pneumaticae conveniens quod concedit tubum mutare directionem, typice ad XC-gradu angulus.
