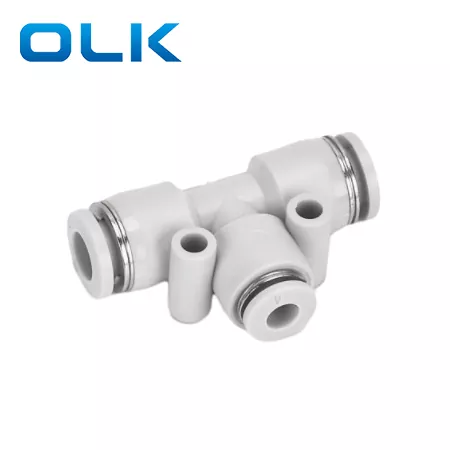

Et PECTORIUM seriem est redersus Tee unio decet, cum D1 maior quam D2, disposito ad connectens principalis et genere fistulae diversis diametri. THEPEG Reducer Tee Unionis fit cum parva adscendens foraminis facilis et secure installation apparatu vel tabulata salva installation spatium.
D1> D2, idoneam diversis pipe mole hospites
Built-in parva adscendens foraminis ad velox fixing
Securus dis-in & viverra-sicco consilium ieiunium installation
Late in Pneumaticae Systems et Automation Equipment
|
Paxillus |
8 |
- |
6 |
|
Exemplar |
Tube Size (metrica) |
|
Tube Size (metrica) |
|
Peg Series conveniens |
IV: 4mm |
|
IV: 4mm |
|
|
VI, 6mm |
|
VI, 6mm |
|
|
VIII, 8mm |
|
VIII, 8mm |
|
|
X: 10mm |
|
X: 10mm |
|
|
XII: 12mm |
|
XII: 12mm |
|
|
XIV: 14mm |
|
XIV: 14mm |
|
|
XVI, 16mm |
|
XVI, 16mm |
|
Fluidus |
Aeris / aqua (Conditionalis) / Vacuum |
|
Operating pressura |
0-1.0MPA |
|
Vacuum pressura |
-100kpa (X Torr) |
|
Operating temperatus |
-10-60 ℃ |
|
Materia |
Nylon (PA), Polyurethane (Pu) |

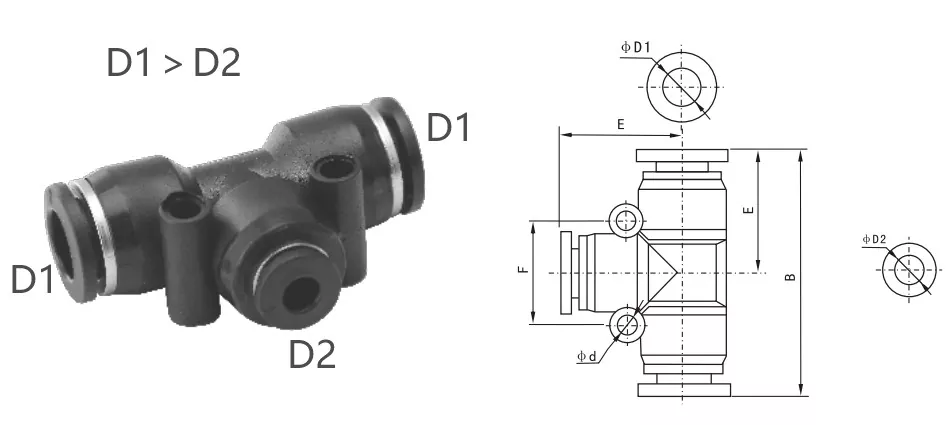

Peg Reducer Tee Unionis Forma Dimension parametri
|
Inch tubi |
Metric fistula |
φd1 |
φd2 |
B (mm) |
E (mm) |
F (mm) |
φd (mm) |
|
Pen1 / 4-5 / XXXII |
Pen6-4 |
6 |
4 |
41.2 |
20 |
14.9 |
3.5 |
|
Pen5 / 16-1 / IV |
Pen8-6 |
8 |
6 |
45 |
18 |
22.8 |
4.5 |
|
Pen3 / 8-5 / XVI |
Pen10-8 |
10 |
8 |
51 |
24 |
19.8 |
4.5 |
|
Pen1 / 2-3 / VIII |
Pen12-10 |
12 |
10 |
59 |
28 |
24.5 |
5 |
|
Pen16-12 |
Pen16-12 |
16 |
12 |
69 |
34 |
32.2 |
4 |
|
Pen5 / 16-5 / XXXII |
Pen8-4 |
8 |
4 |
46 |
18 |
20 |
4.5 |
|
Pen3 / 8-1 / IV |
Pen10-6 |
10 |
6 |
57 |
26.8 |
23.8 |
4 |
|
Pen1 / 2-5 / XVI |
Pen12-8 |
12 |
8 |
59 |
27.8 |
27.6 |
5 |
Quid aliud PE aptius et peg decet?
PE conveniens (parem Tee unionem) omnes tres tubos habent eandem exteriorem diameter, idoneam ad connectens tria pneumatic fistulae magnitudine.
Peg (Reducer Tee Unionis): Duo latus tubulis sunt maior quam centrum tubo, disposito ad connectens diversis tubo magnitudinum.
