PE unio Tee dis in tube

Et haec est introductio ad PE unionem Tee ventilabis in tube decet, olk spem ad auxilium vobis melius intellegere PE unionem Tee ventilabis in tube conveniens. Welcome New and Vetus Customers ad continue cooperari nobiscum creare meliorem futurum simul!

Mitte Inquisitionem

depictio producti

Et PE unio Tee dis in tube decet est a T informibus apta solebat split aut miscere airflow in pneumatic systems.

Hoc coniungit tria fistulae eiusdem exterius diameter, offerens secure et airtight nexum in omnibus directiones.

Pe	8
Exemplar	Tube Size (metrica)
PE series apta	IV: 4mm
	VI, 6mm
	VIII, 8mm
	X: 10mm
	XII: 12mm
	XIV: 14mm
	XVI: 16mm

PE Unionis Tee ventilabis in tube apta Generalis Basic Parametri

Fluidus	Aeris / aqua (Conditionalis) / Vacuum
Operating pressura	0-1.0MPA
Vacuum pressura	-100kpa (X Torr)
Operating temperatus	-10-60 ℃
Materia	Nylon (PA), Polyurethane (Pu)

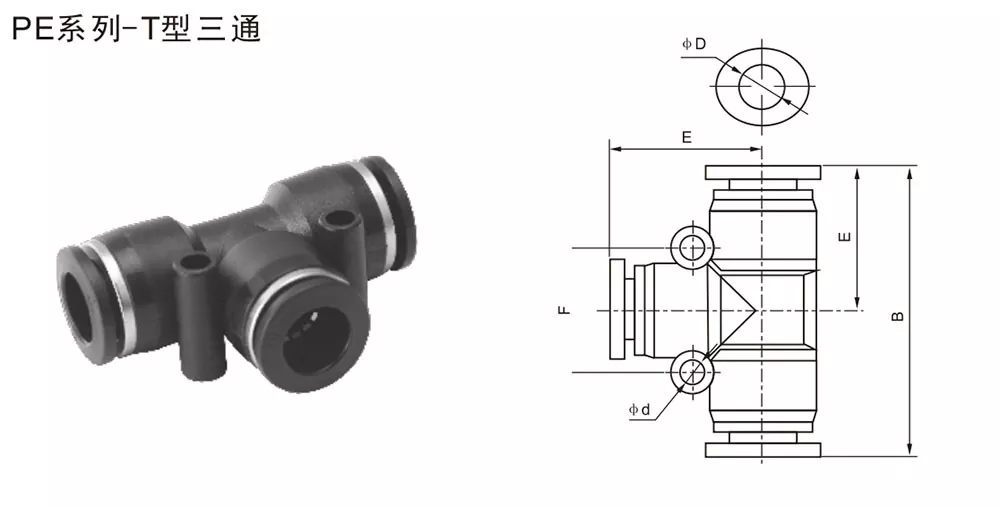

Inch Tubus Fit	Decet metrictube	φd	B	E	F	φd
PE5 / XXXII	PE-IV	4	36.6	18.3	/	/
PE1 / IV	PE-VI	6	41	20.5	16	3.5
PE5 / XVI	PE-VIII	8	46	23	20	4.5
PE3 / VIII	PE-X	10	56.6	28.3	24	4.5
PE1 / II	PE-XII	12	58.6	29.3	27.7	5
	PE-XIV	14	60.8	30.4	25.8	4
	PE-XVI	16	69	34.5	33	4

Communis Thread Size Conversion Reference
Inperialis	Proxime. Metrica (mm)	Conversionem formula
1/8	3.2mm	VIII VIII × 25.4 = 3,175
5/32	3.97mm	V ° XXXII × 25.4 3,97
1/4	6.35mm	I ÷ IV × 25.4 6.35
5/16	7.94mm	V ÷ XVI × 25.4 = 7.94
3/8	9.53mm	III VIII VIII × 25.4 = 9.53
1/2	12.7mm	I ÷ II × 25.4 = 12.7
