MV522 Series Mechanical Button Control Valve 5 Way

Model:MV522R

Cum professionalem fabricam, OLK te praebere velim MV522 Series Mechanica Button Imperium Valvae 5 Via. Et Ouleikai offeret tibi optimam post venditionem servitii et opportunam traditionem.

Brand:
OLK
Port size:
G1/4
Position:
2 Position 5 Way
Mechanical Valve:
MV522 Mechanical Valve

Mitte Inquisitionem

Rating: 5.0

(Rating Comes: 1)

depictio producti

OLK structuram directam MV522 5/2 modo valvae mechanicae structuram simplicem habet, qualitatem altam signandi anulum ad excellentem airtightem, bonam velit actionem, resistentiam ad calefaciendum et corrosionem.

Valvula mechanica stamina MV522 est G1/4, cum pressione 0-0.8Mpa sonat, et lubricationem non requirit. Faciens facilem servandi et serviendi, tempus minuendi et conservandi impensas.

Symbolum:

Mandans signum
MV	52	2	R
EXEMPLUM:	SITUS NO.	PORTUS MENSURA:	GLOBULO EXEMPLUM:
MV valvae mechanicae	52:2	2:G1/4	Blank: basic genus
			L: Uno modo cylindro genus
			R: Rollerus Type
			TB: Selector Puga pyga Type
			EB: Lockable Type
			PP: Flat Button
			PPL:Convex Button
			PB: Large Circular Button

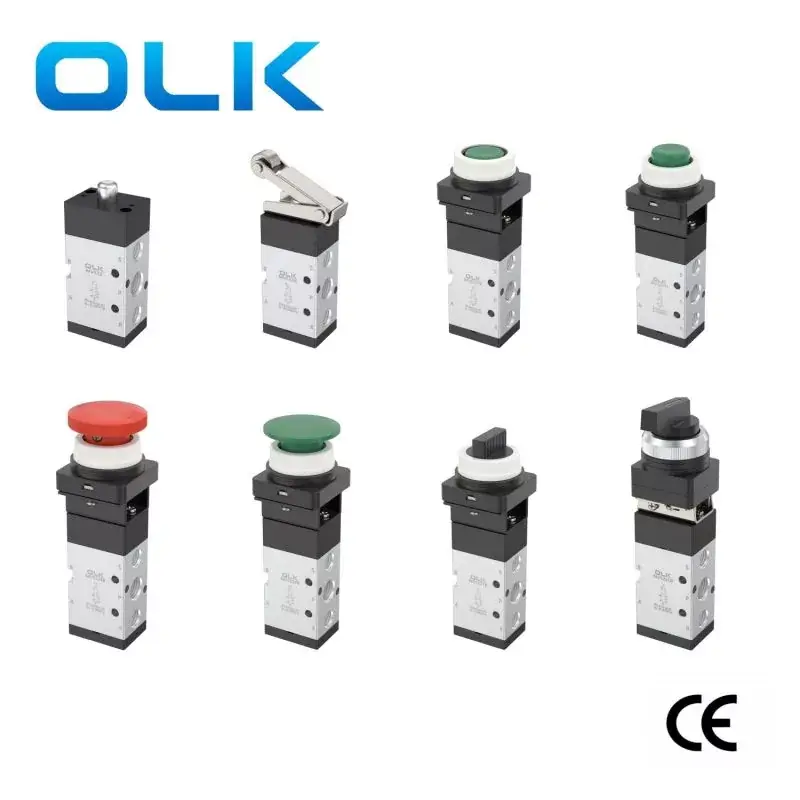

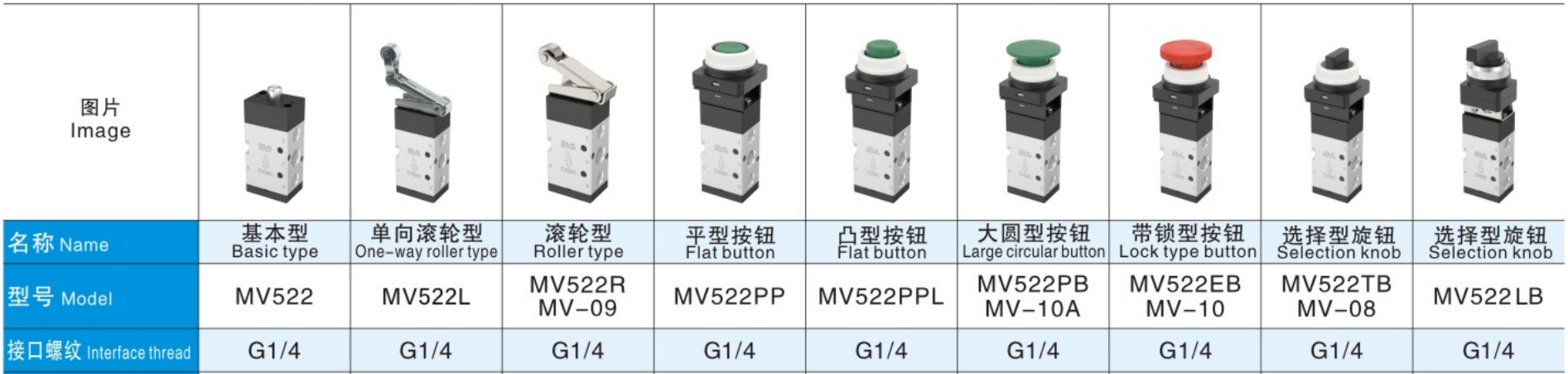

Puga pyga capitis rationes includit:

- Basic Type (MV522) --- (MSV86522)

- Uno modo genus cylindri (MV522L)--- (MSV86522L)

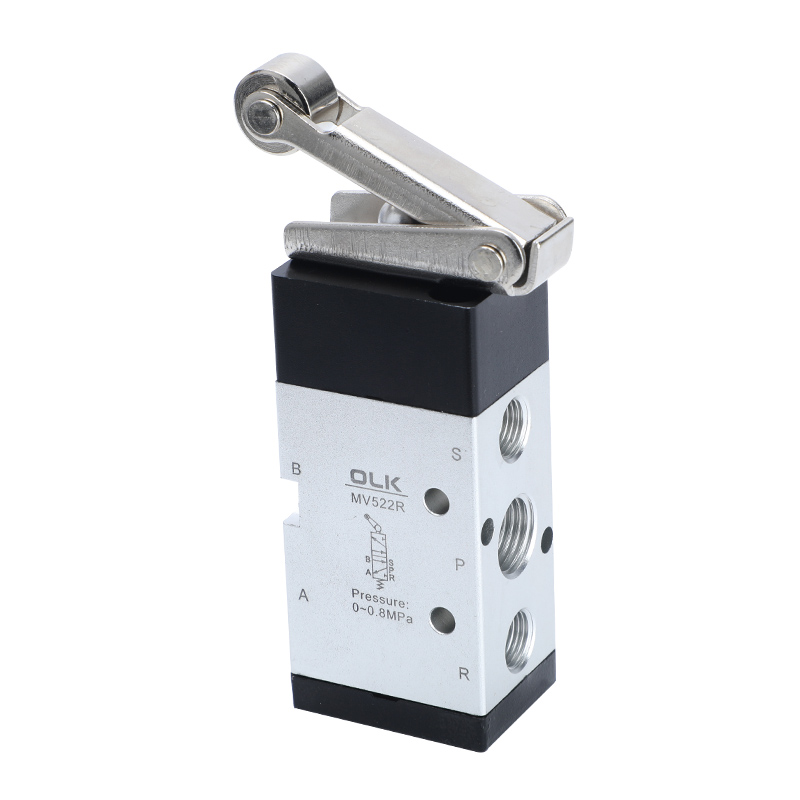

- Rollerus Type (MV522R/MV-09) --- (MSV86522R)

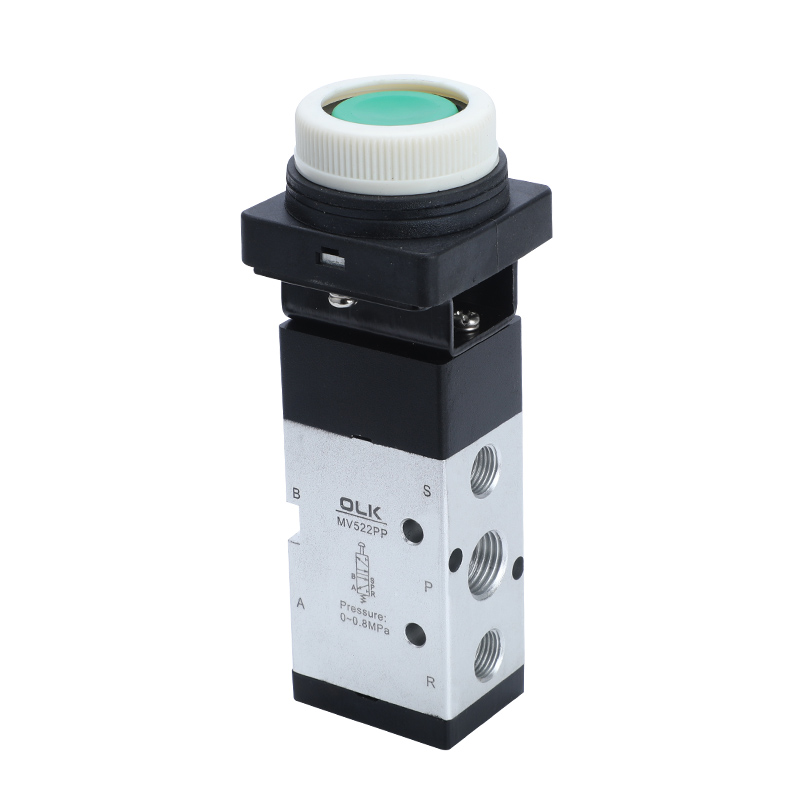

- Flat Button (MV522PP) --- (MSV86522PP)

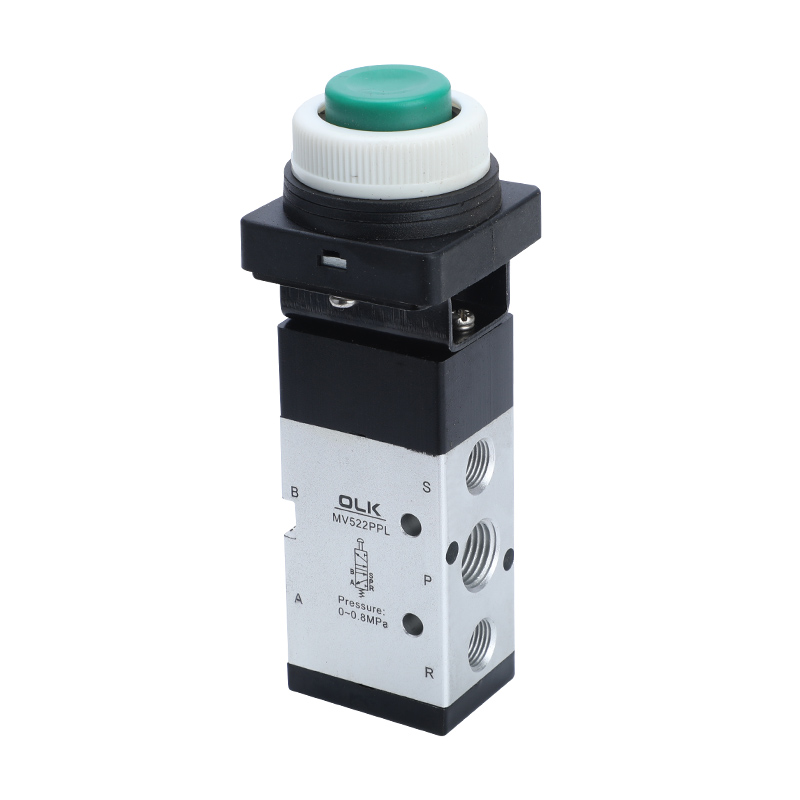

- Convex Button (MV522PPL) --- (MSV86522PPL)

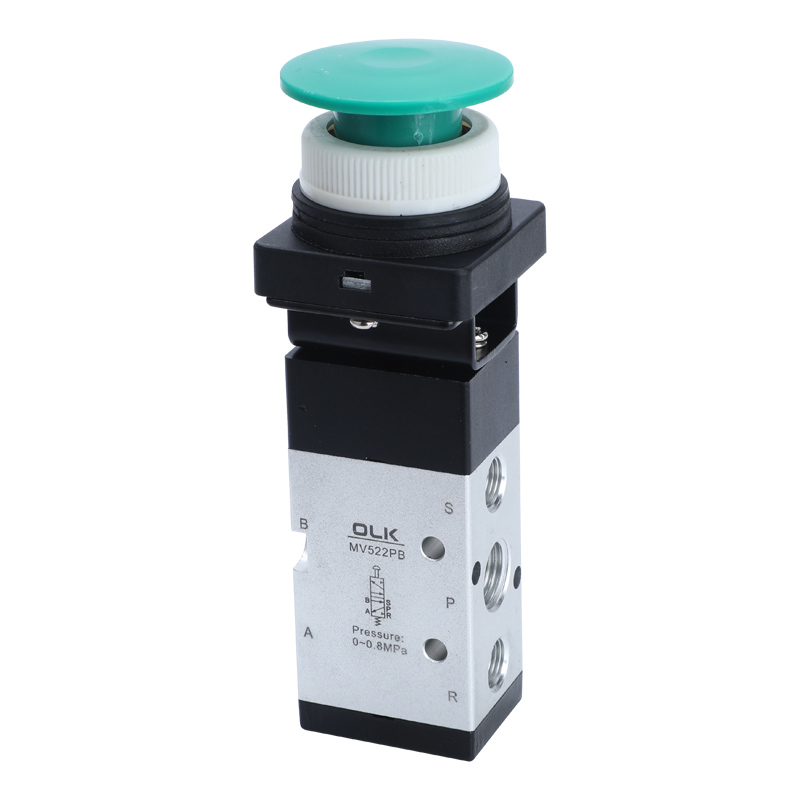

- Magne Circularis Puga pyga (MV522PB/MV-10A) --- (MSV86522PB)

- Lockable Type (MV522EB/MV-10) --- (MSV86522EB)

- Selector Button Type (MV522TB/MV-08) --- (MSV86522TB)

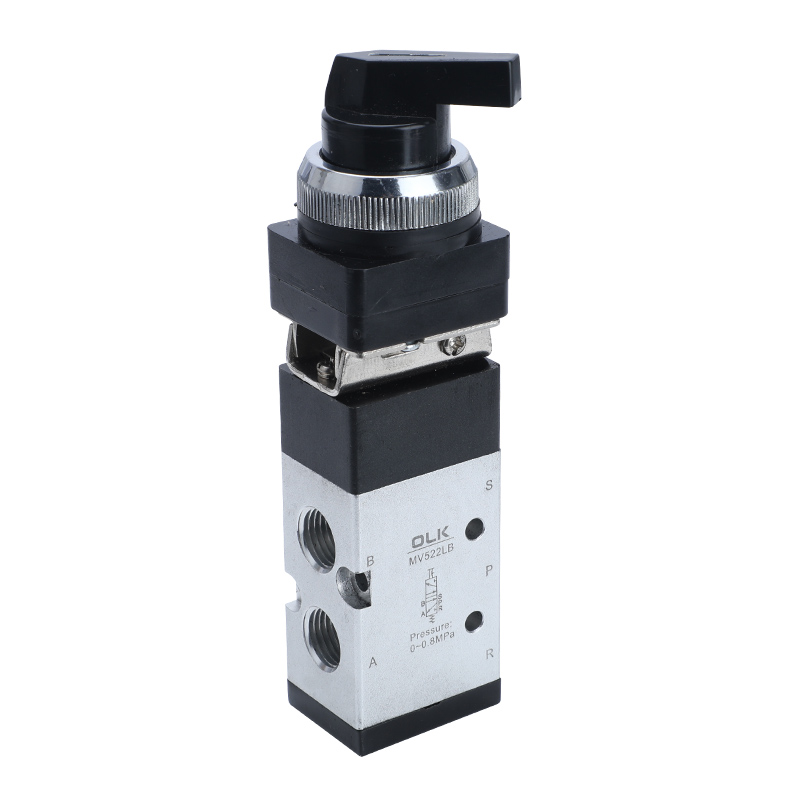

- Elector Knob Type (MV522LB) --- (MSV86522LB)

MV522 SERIES button Mechanical control valvae 5 way Parametri Generalis

opus medium	Aer (percolatur per filtrum super 40μm)
Actio	Externi Imperium Direct Action
Portus diam	08:G1/4
numerus positionum	2 positio 5 via
lubricating	necesse "
Opus pressura range MPa(psi)	0∼0.8(0~114)
Guaranteed pressura resistentia	1.5MPa (215psi)
°C	-5∼60
Corpus materiale	aluminium offensionis
