MV322 Series Mechanical Button Control Valve 3 Way

Model:MV322R

Ut professio MV322 Series Mechanica Button Control Valve 3 Via fabricare, certificare potes ut emere MV322 SERIES Bulla Mechanica penes valvam ex officina nostra et OLK offeret tibi optimam post venditionem servitii et partus opportune.

Brand:
OLK
Port size:
G1/4
Mechanical Valve:
MV322 Mechanical Valve
Position:
2 position 3 way

Mitte Inquisitionem

depictio producti

OLK valvae mechanicae varias structurarum sahpes habent.MV22 3/2 modo conjunctionis mechanicae capita moderandi valvae aptae ad amplis condiciones operandi, est specimen electionis pro potestate industriae pneumaticae.

Symbolum

MV	32	2	R
EXEMPLUM:	SITUS NO:	PORTUS MENSURA:	GLOBULO EXEMPLUM:
MV valvae mechanicae	32:2 positio 3 via	2:G1/4	Blank:Basic genus(MV322)
			R:Roller Type (MV322)

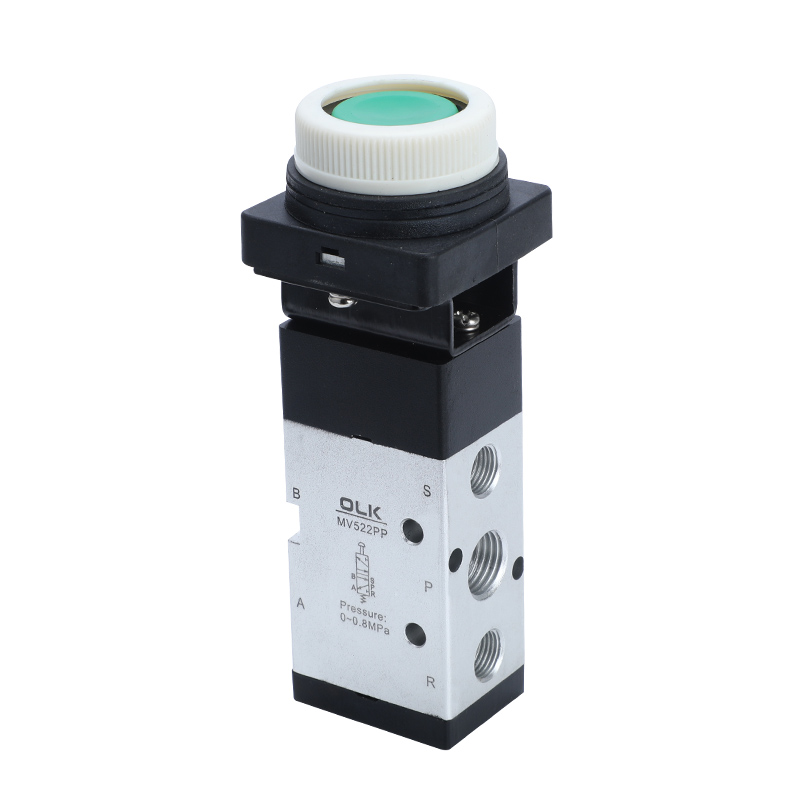

			PP:Flat Button (MV322PP)
			PPL:Convex Button (MV322PPL)
			PB: Large Circular Button (MV322PB)
			FB: Lockable Type (MV322EB)
			TB: Elector Button Type (MV322TB)
			LB:Selector Knob Type (MV322LB)

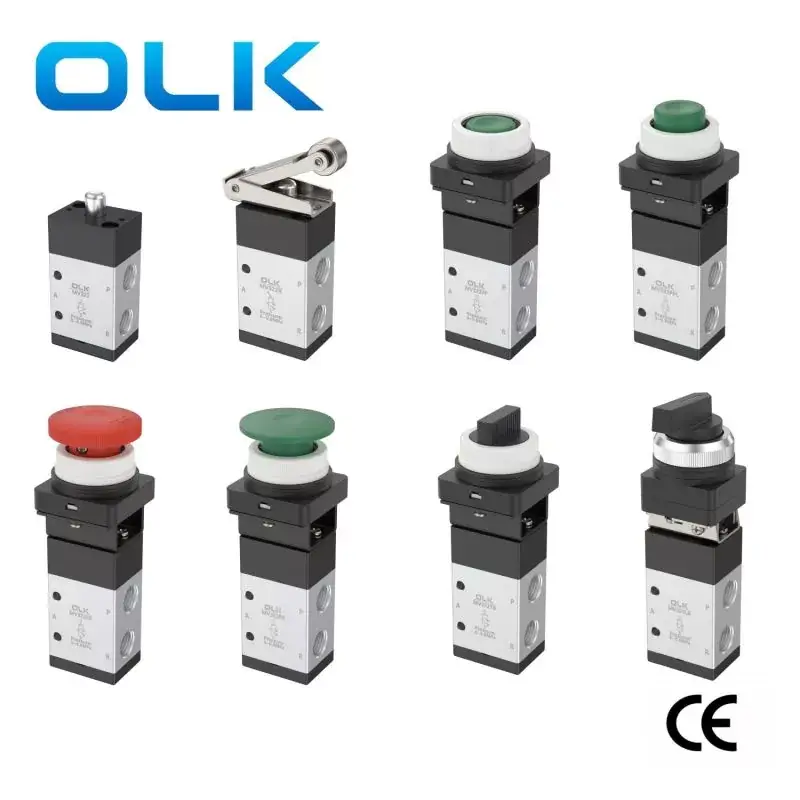

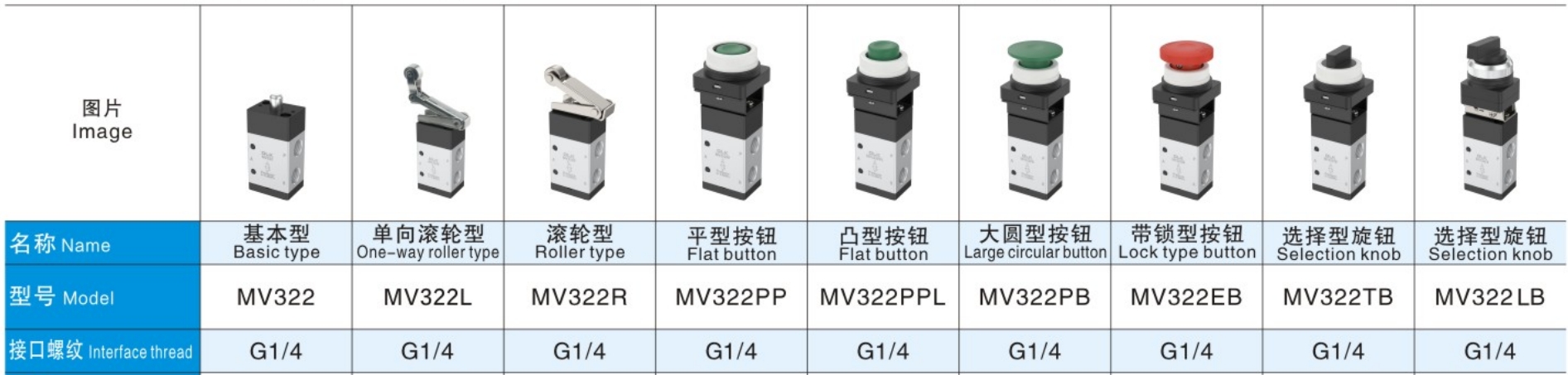

Puga capitis typi:

- Basic Type (MV322)---(MSV98322)

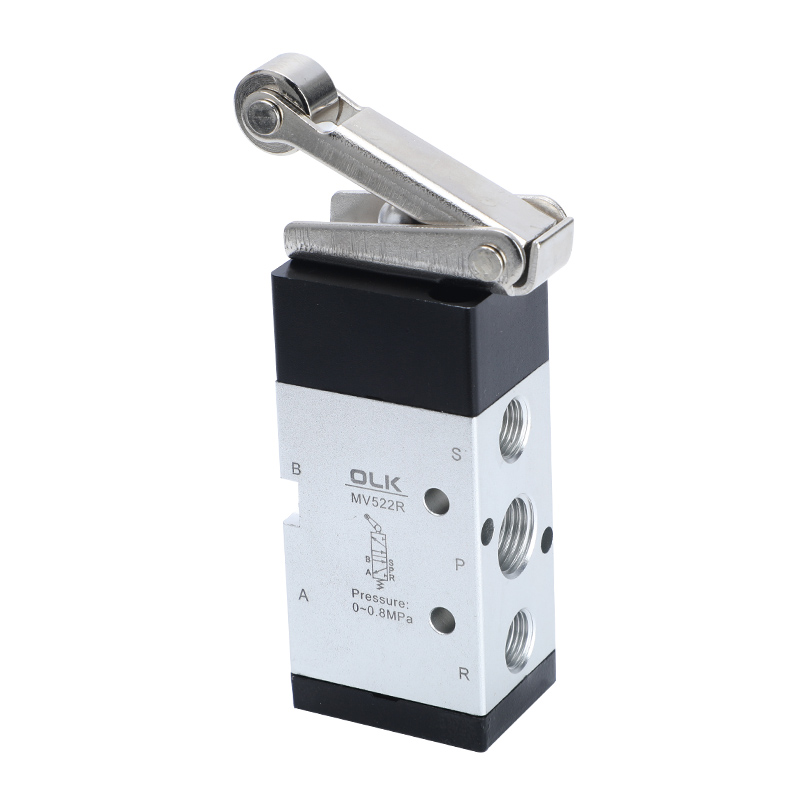

- Rollerus Type (MV322R)---(MSV98322R)

- Flat Button (MV322PP)---(MSV98322PP)

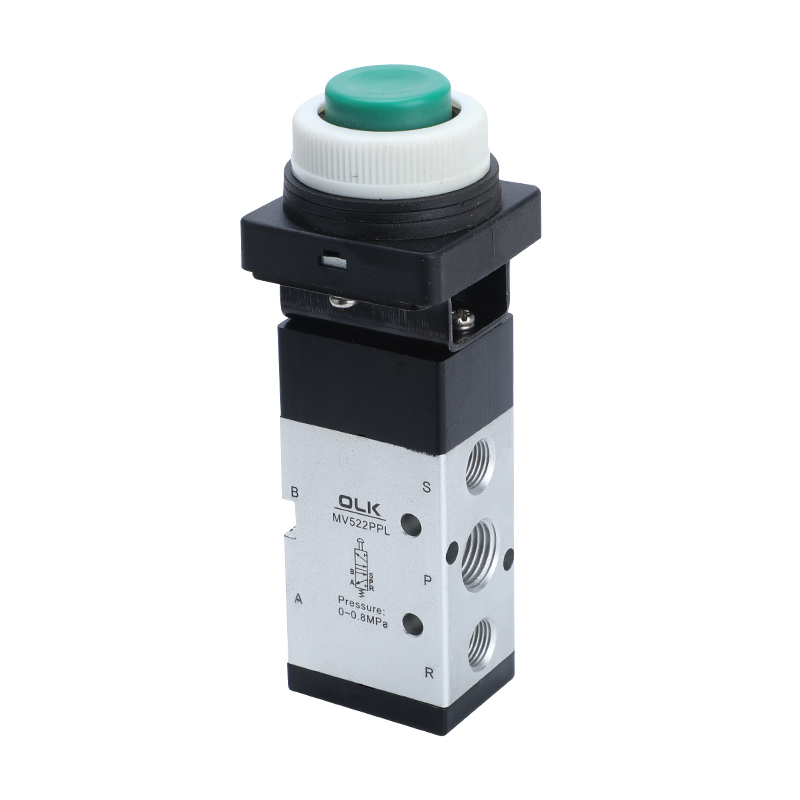

- Convex Button (MV322PPL)---(MSV98322PPL)

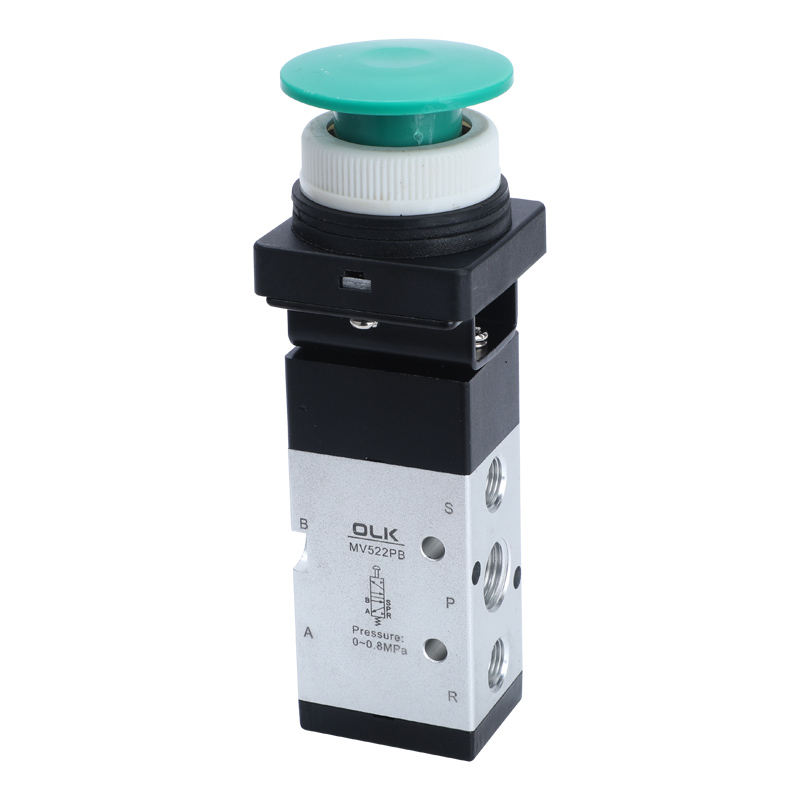

- Magne Circularis Puga pyga (MV322PB)---(MSV98322PB)

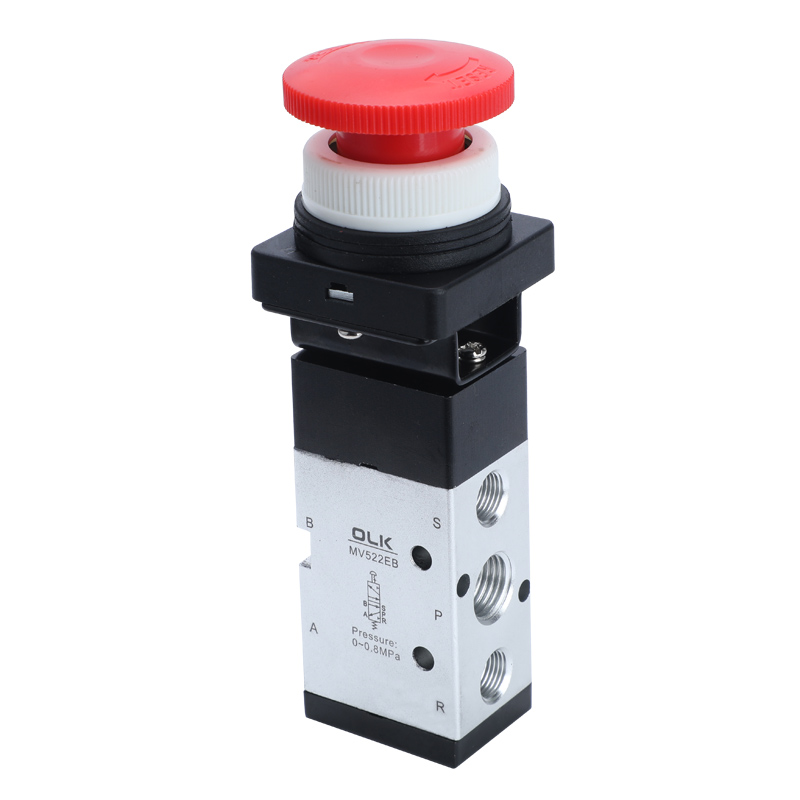

- Lockable Type (MV322EB)---(MSV98322EB)

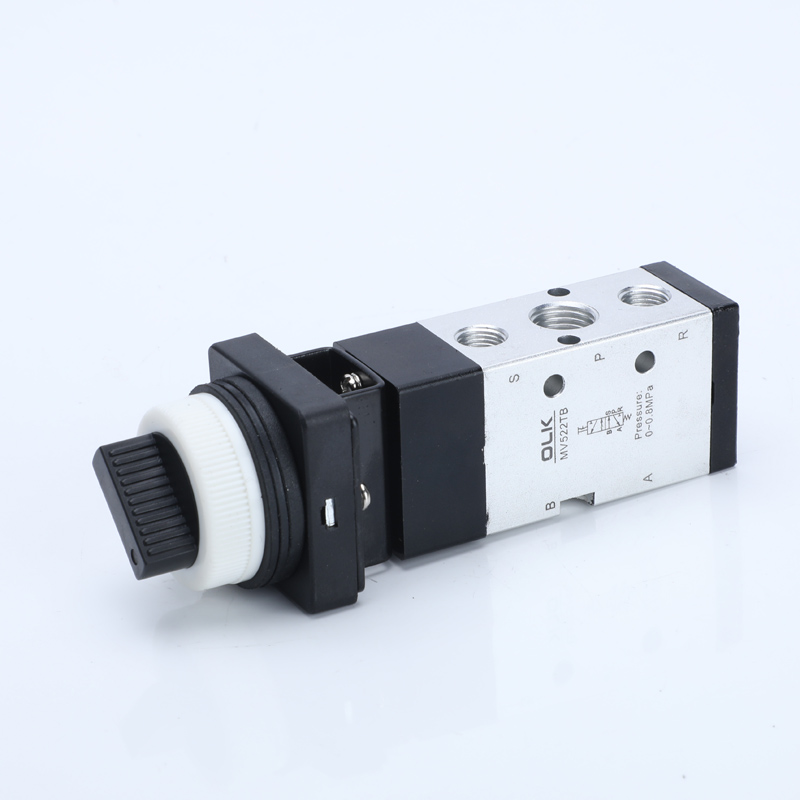

- Selector Button Type (MV322TB)---(MSV98322TB)

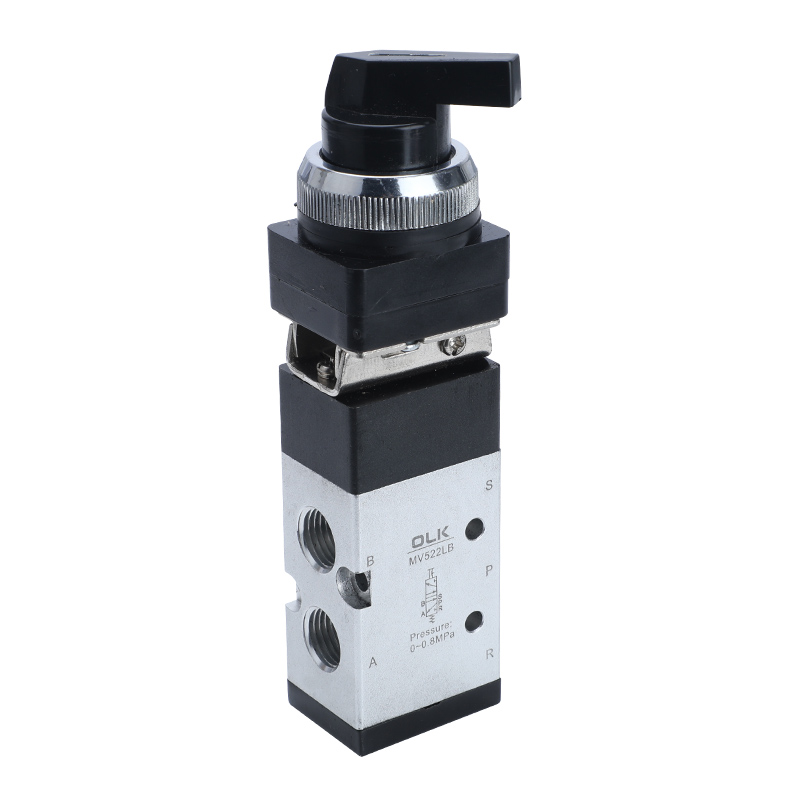

- Selector Knob Type (MV322LB)---(MSV98322LB)

MV322 series button mechanica control valvae 3 modus parametri generalis

opus medium	Aer (percolatur per filtrum super 40μm)
Actio	Externi Imperium Direct Action
Portus diam	08:G1/4
numerus positionum	Duo positio tribus
lubricating	necesse "
Opus pressura range MPa(psi)	0∼0.8(0~114)
Guaranteed pressura resistentia	1.5MPa (215psi)
°C	-5∼60
Corpus materiale	aluminium offensionis
