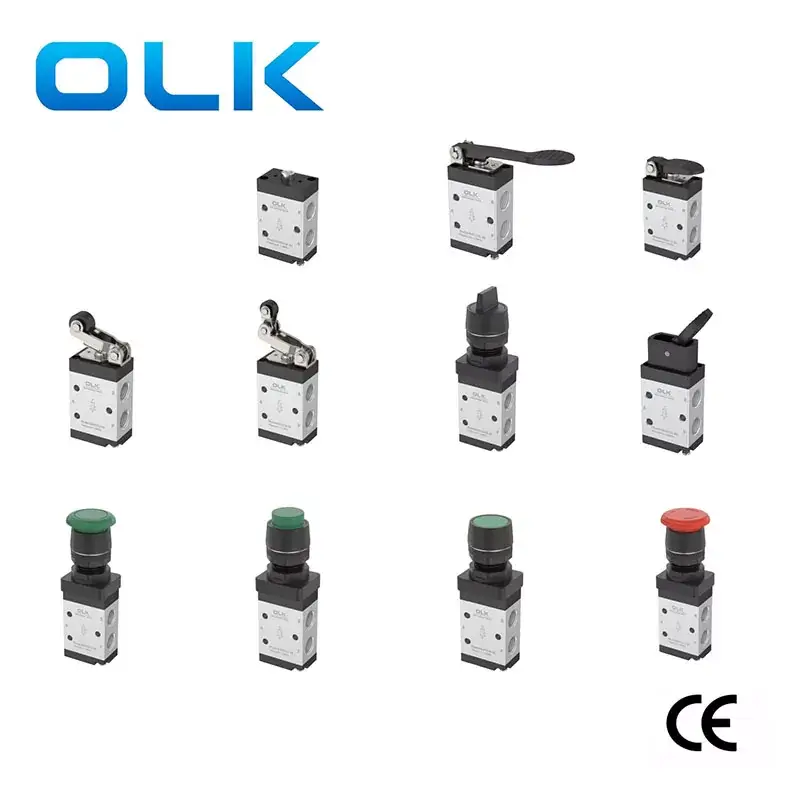

M3 Series Mechanica Button imperium valvae III modo

Model:M3B

Welcome to Wholesale et customized M3 series mechanica button imperium valvae III via ex officinas in omni tempore. Nos providebit vobis fabrica discount prices pro nobis products. Olk Pneumaticae est M3 series Mechanica Puga pyga Imperium Valves III via Manufacturers et Suspendisse in Sina.

Mitte Inquisitionem PDF Download

depictio producti

Et oleikai M3 series Airtac-genus 3/2 modo mechanica valvae habent II operating civitatibus et III semita Selions.m3 mechanica valvae idoneam ad diffrent Pneumatic M3 mechanica potestate, ut firma operantes, ut pneumatica potestate in automated productio lineae Conventus lineas packaging lineas.

Symbolum:

Ordinatio Code
M3	Pm	210	06	R
Series	Button type	codex	Portus magnitudine	Button

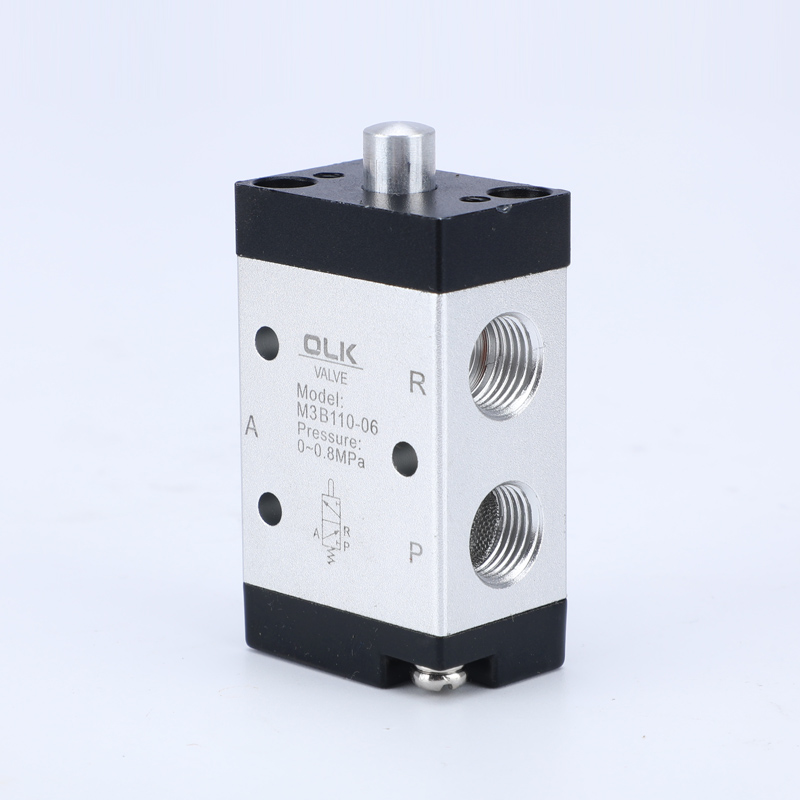

M3: Meries II Position III modo	B: Basic Type (M3B)	CX: CX Series Album	C, VI: G1 / VIII	PL: Rubrum

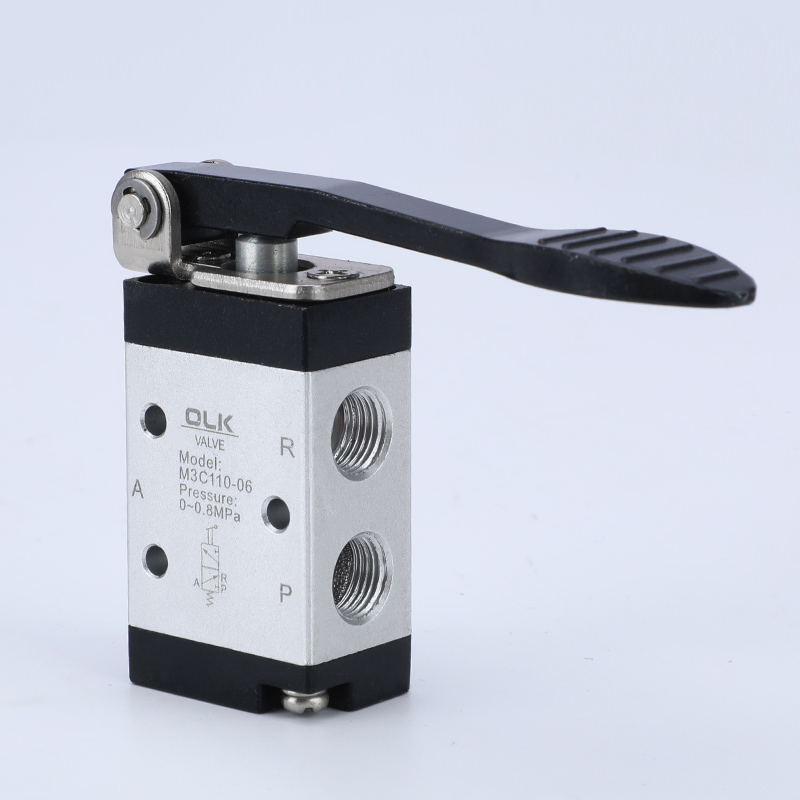

	C: Dum Type (M3C)	CCX: CCX Series Album	CC: VI: G1 / VIII	PP / PF / PM / HS: Rubrum Green Nigrum

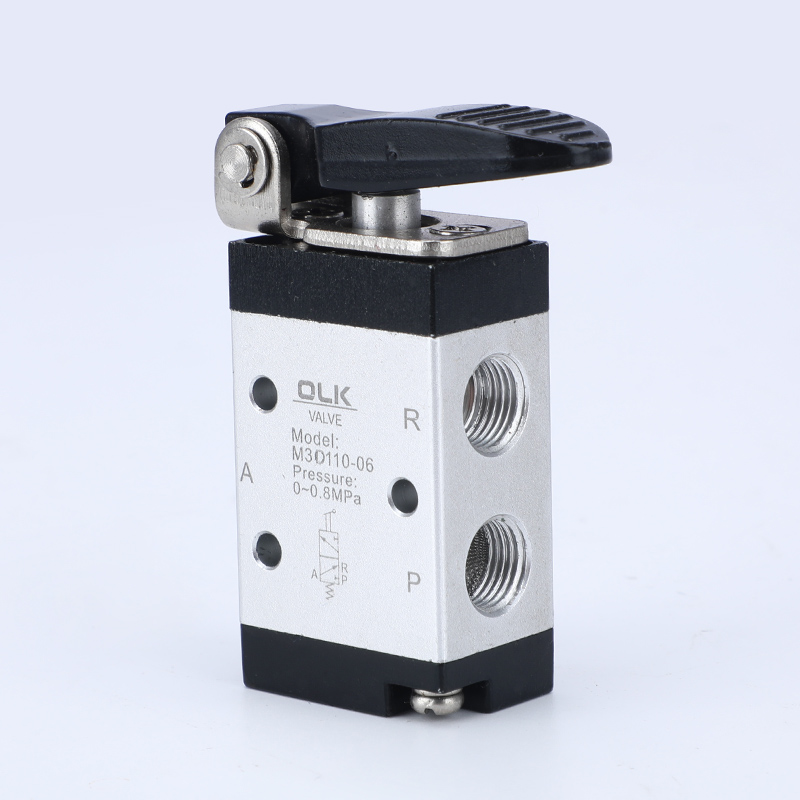

	D: Short Type (M3D)		CC: VIII: G1 / IV

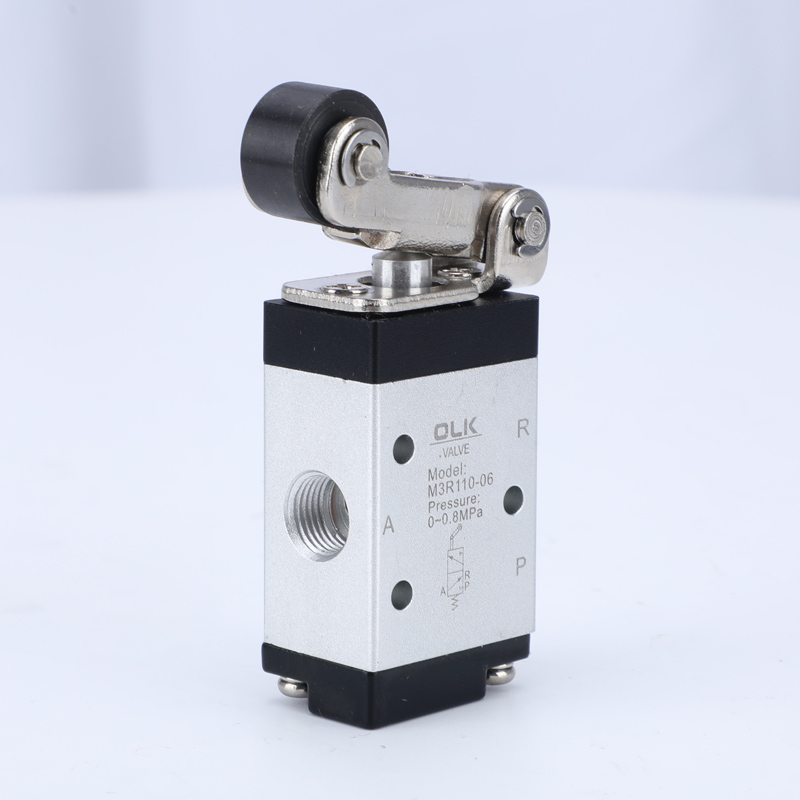

	R: Rollerus Lever type (m3r)

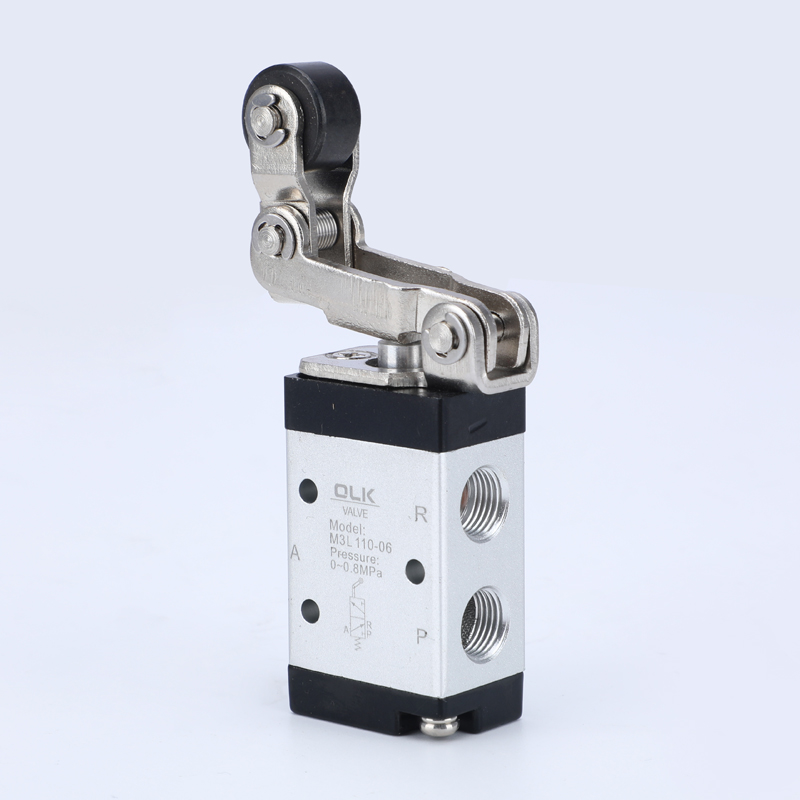

	L: Unidirectional Rollerus Lever Type (M3L)

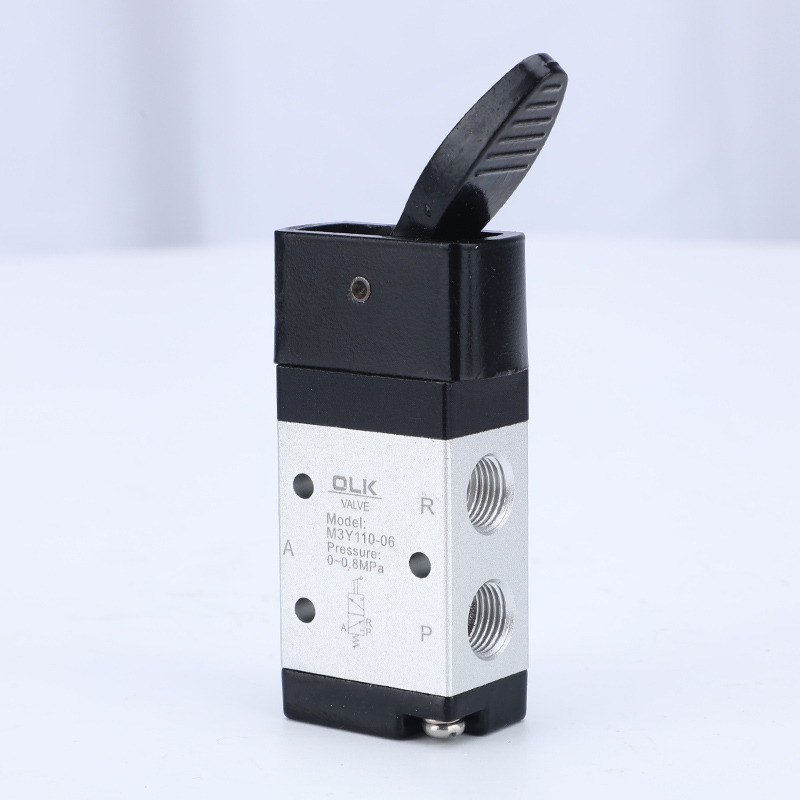

	Y: Rocker Type (M3Y)

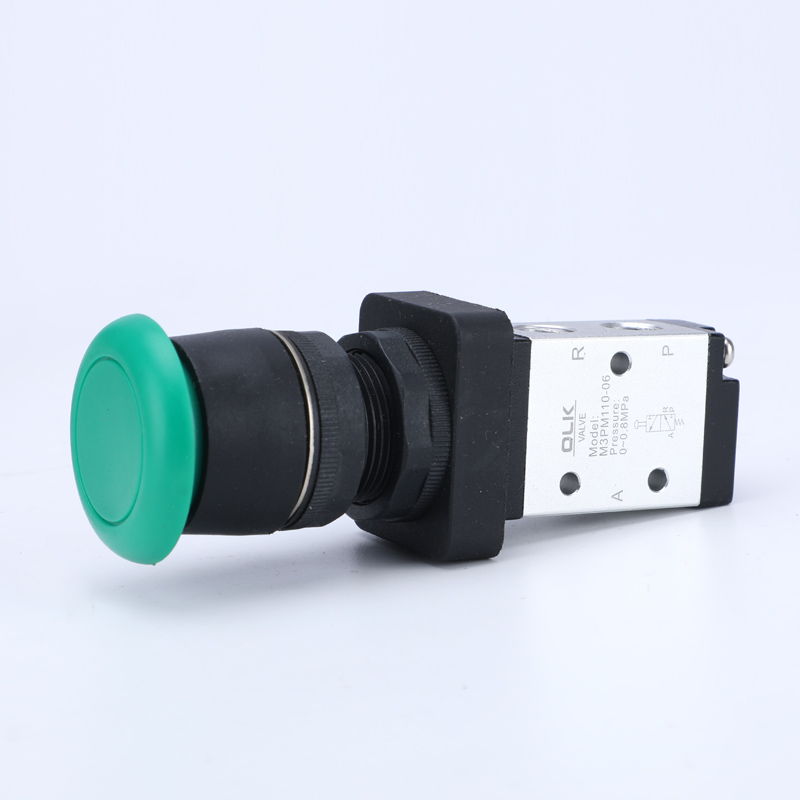

	PM, Bulsus Button Type (M3PM)

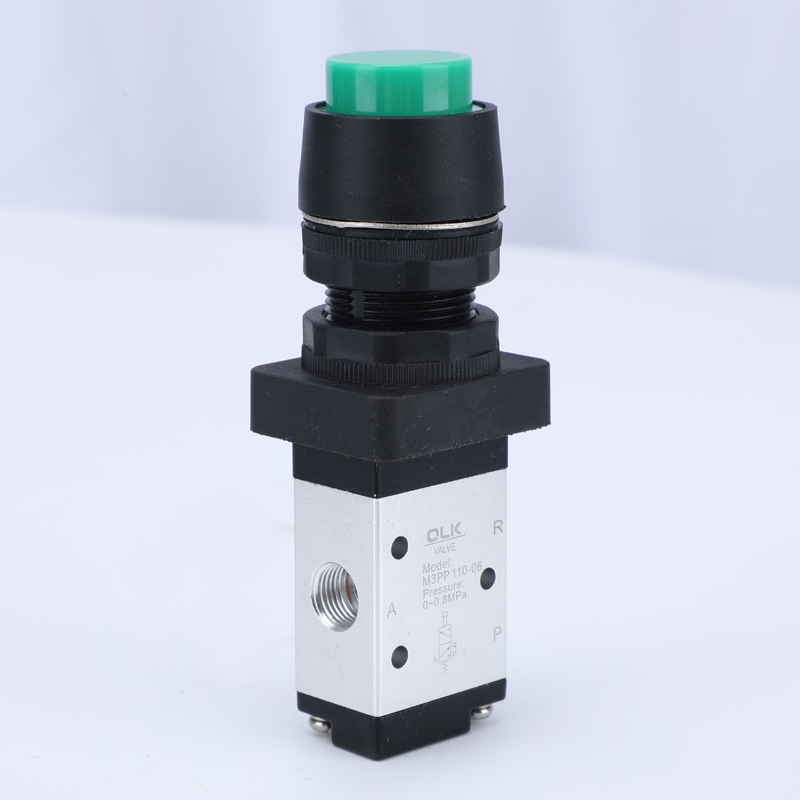

	Pp: erexit caput button type (m3pp)

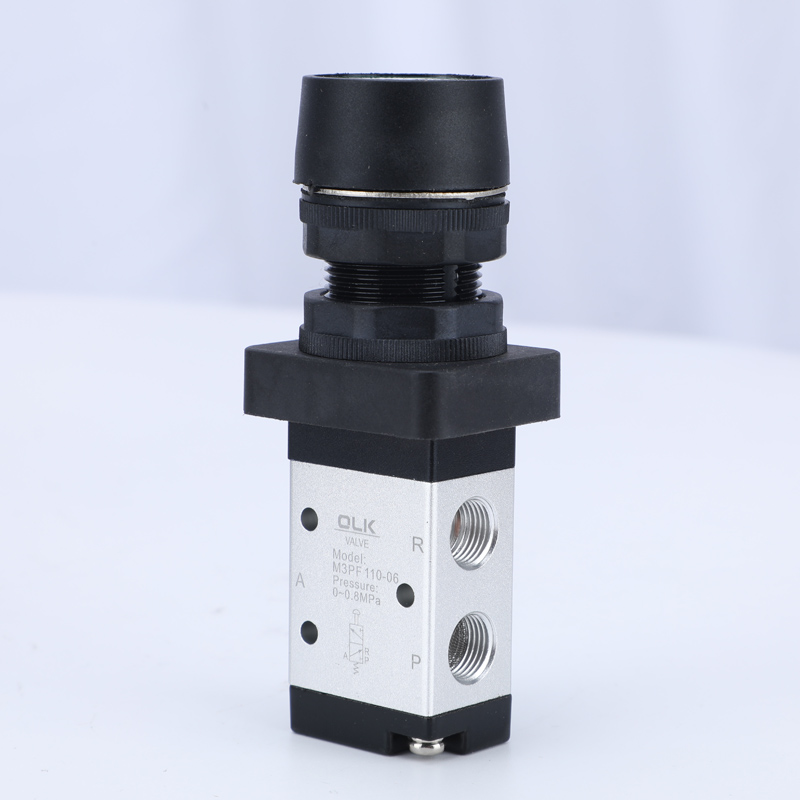

	PF: Flat Caput Puga Type (M3PF)

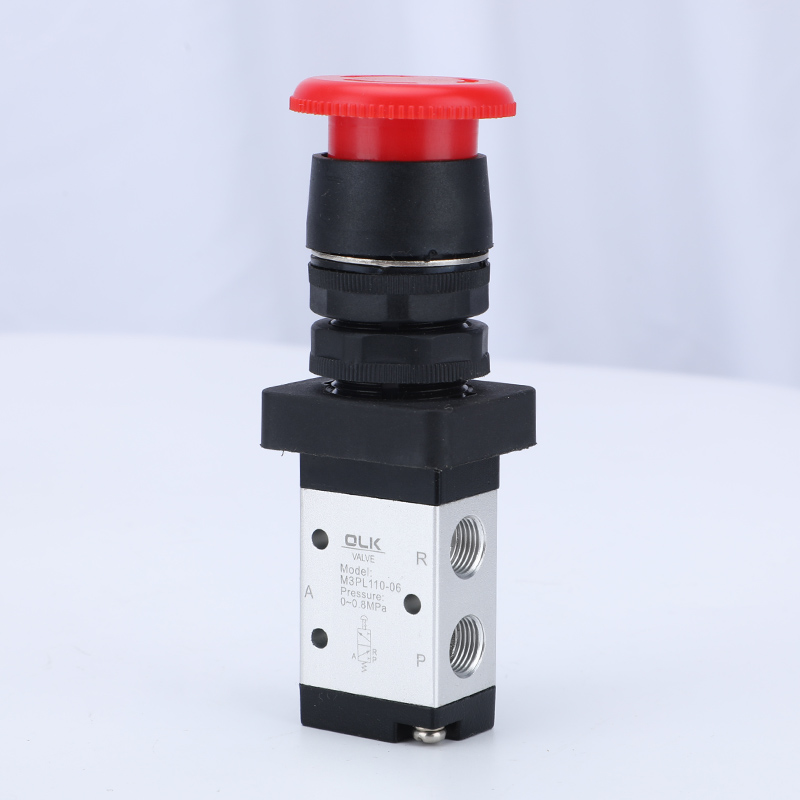

	PL: subitis nolite impulsum button type (m3pl)
	HS: Selector Type (M3HS)

Oleikai m3 series 2/3 mechanica button imperium valvulae productum characteres

I. De exhaurit sita est in corpore, facilius institutionem muffler ad redigendum sonitus et pollutio.

II. M3B, M3R et M3L series eget externa viribus mutandi provisum ab externa machinationes, idoneam pro loco deprehendatur vel ictum virgas.

III. M3C, M3D, M3Y, M3pf, M3pm, M3PP, et M3Plm3hs series sunt manually operated, cum variis structural figuras potestate capita ad convenient in diversis conditionibus.

IV. Piston-genus structuram, imperium vis non affectus operantes pressura (i.e., nihil retro pressura), interiorem circulum obsignationem, optimum signing, et flexibilia switching.

V. Non opus est oleum lubricatae.

VI. Convenient installation et uti cum multa situ adscendens.

VII. Et imperium capitibus M3C, M3D, M3Y, M3R et M3L series fiunt ex metallum materia quia longa vita et maiora.

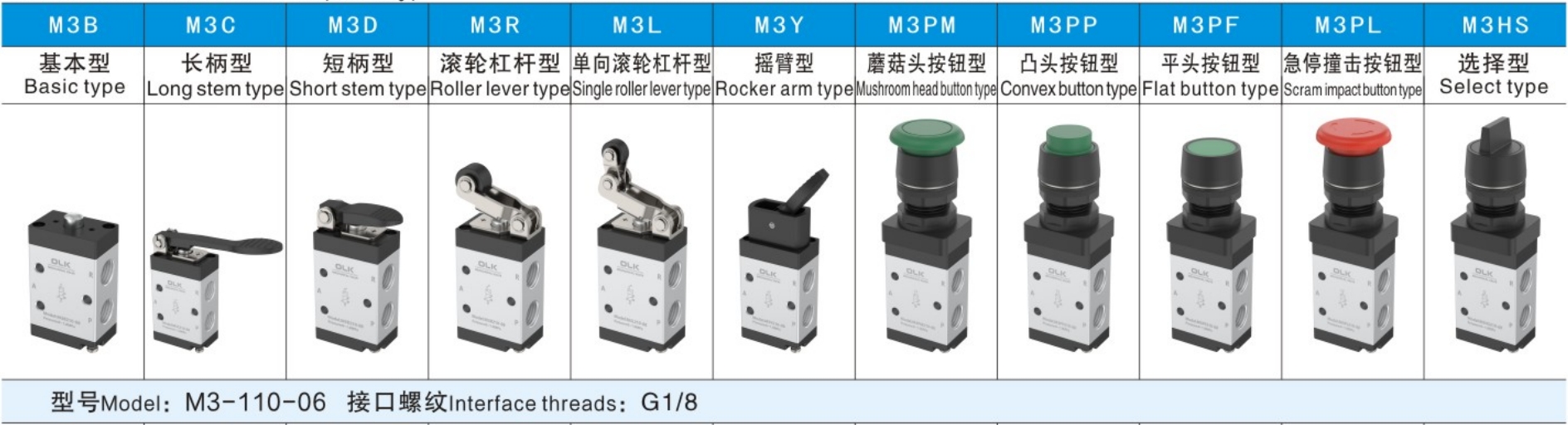

M3 Series Mechanica Button imperium valvae III modo generalis parametri

Exemplar

M3b

M3C

M3D

M3r

M3l

M3y

M3pm

M3pp

M3pf

M3pl

M3hs

Opus medium

Air (filter per filter screen de super 40μm)

Actio modus

Externas imperium recta agens type

Portus magnitudine

V: M5; VI: G1 / VIII; VIII: G1 / IV

Efficens Cross-Sectional Area

Mini

V: 2.5MM² (CV 0.14)

110

VI: 8.0mm² (CV = 0.45)

210

VI: 9.0mm² (0.5 cv =); 0,8: 12.0MM² (CV = 0.67)

Locus

3/2 Portus

Non opus

Pressura range

0-1.0MPA (0-145Psi)

Probationem pressura

1.5MPA (215Psi)

Wuping pressura

'-20-70 ℃

Corporis materia

Aluminium Alloy

M3 Series Mechanica Button imperium valvae III via installation et applicationem:

Cautiones

I) De potestate pars est ex ipsum plastic et solum manualis operatio licet. Nolite uti metallum impulsum mutandae valvae.

II) M3B, M3C, M3D, M3pm, M3pf et M3PP series statim reset. M3Y, M3HS et M3PL manual valvulae sunt manually reset. Post urgeat m3pl in thesaurum positio, gyratorius knob necessitatibus ut rotentur ad reset.

III) stipendium operam ad reversing plaga. Quando externa causat valvae ad vicissim, basic reversing ictum non excedat range reversing ictu certa in potestate plaga mensa, aliter erit causa damnum ad valvae corporis.

IV) M3L unum-modo cylindro valvae non solum switch in unam partem (hitting a rectum ad sinistram). Aliquam impulsum in altera (curvam reliquit ad dextram).

V) De potestate caput combination potest ordinari seorsim.
