M5 Series Mechanical Button Control Valve 5 Way

Model:M5 mechanical valve

OLK professio est M5 Series Mechanica Button Imperium Valvae 5 Via fabricantium et praebitorum in Sinis. Si inM5 seriem valvularum mechanicarum productorum interessas, pete nobiscum contactum. Certum est nos sequi qualitatem, pretium conscientiae, servitio dicatum.

Mitte Inquisitionem

depictio producti

AIRTAC TYPE M5 series 5/2 modo valvae mechanicae fabricatae ab OLK pneumaticae company.M5 Valva mechanica est lapsus columnae structure. Portus exhuaustus in valvae body.M5 Valvae conjunctionis sita facilius erunt ad institutionem velleris ad strepitum et pollutionem reducendam. .The M5 Series Mechanical Button Control Valve 5 Way, dum M5-210 offert G1/8 et G1/4 fila interfaciei.

symbolum:

Mandans signum
M5	PM	210	06	R
	Button type	Code	PORTUS MENSURA	Button color
M5: M genus	B:Basic Type (M5B)	110:110 series una potestate	100:06:G/18	PL:RED
	C: Long manubrium Type (M5C)	210:210 series single control	200:06:G1/8	PP/PF/PM/HS: RED, UF, NIGRUM
	D: Short manubrio Type (M5D)		200:08G1/4
	R: Roller Lever Type (M5R)
	L: Unidirectional Rollerus Lever Type (M5L)
	Y: Rocker Arm Type (M5Y)
	PM: Boletus Head Button Type (M5PM)
	PP: Caput Puga pyga sublato Type (M5PP)
	PF: Flat Type Caput Puga pyga (M5PF)
	PL: Subitis Subsisto Impact Puga pyga Type (M5PL)
	HS: Selector Type (M5HS)

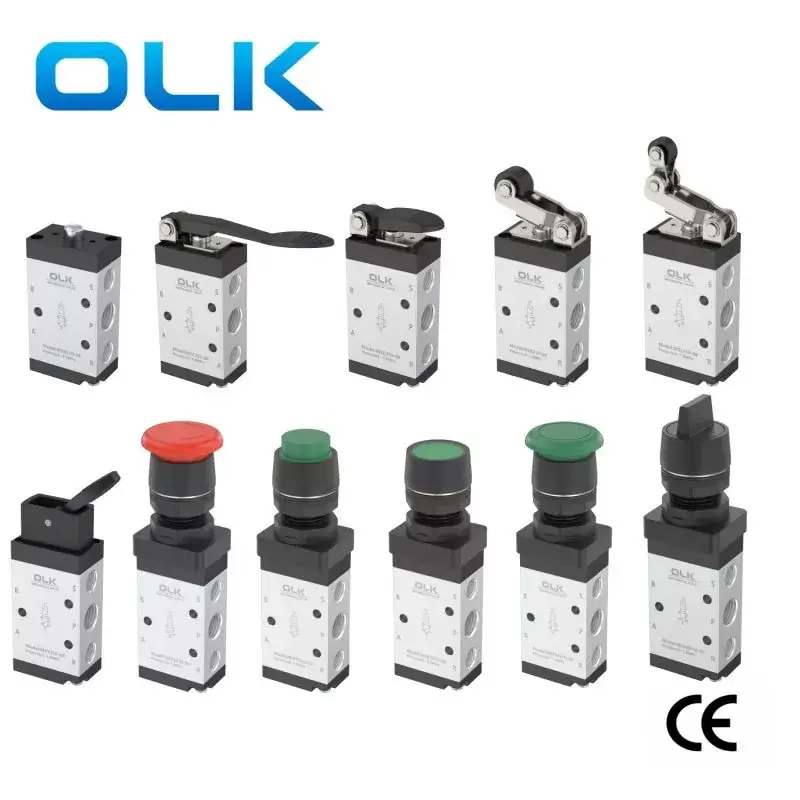

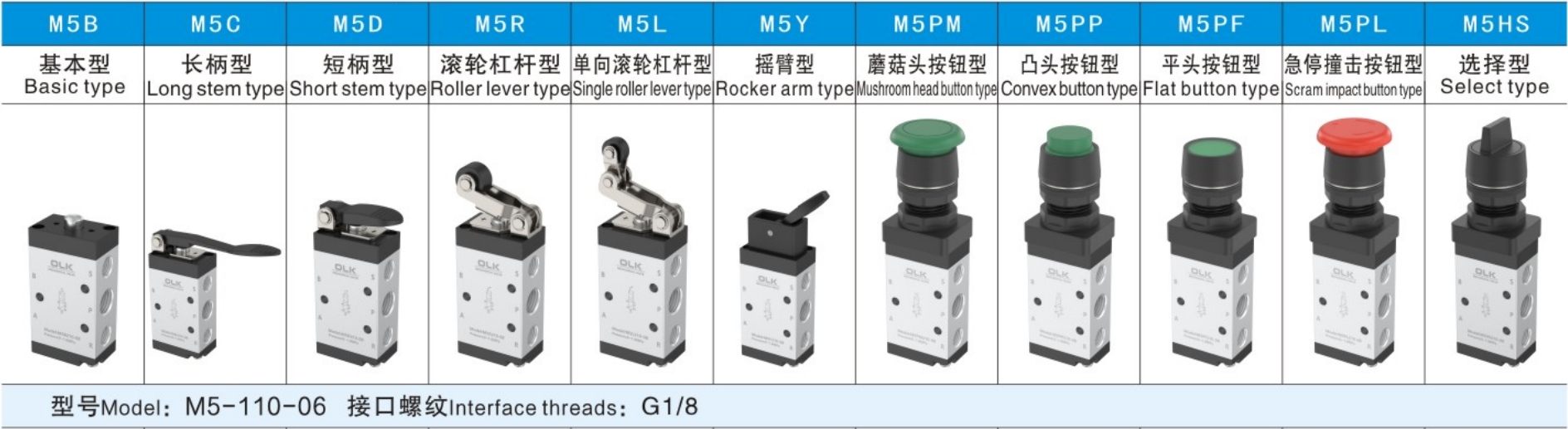

A puga pyga rationes includit:

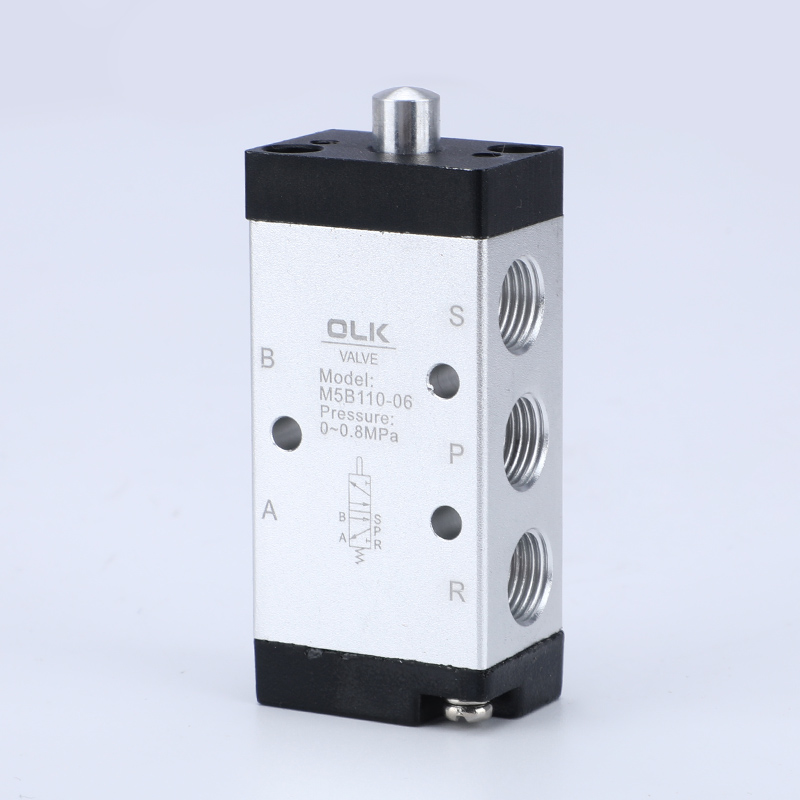

- Basic Type (M5B)

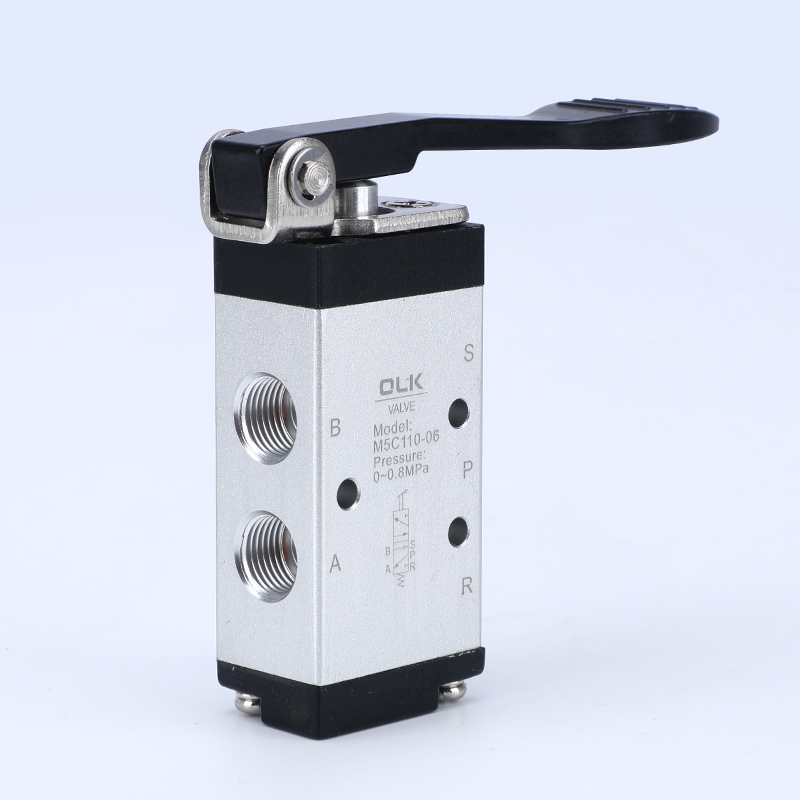

- Longa manubrio Type (M5C)

- Short manubrio Type (M5D)

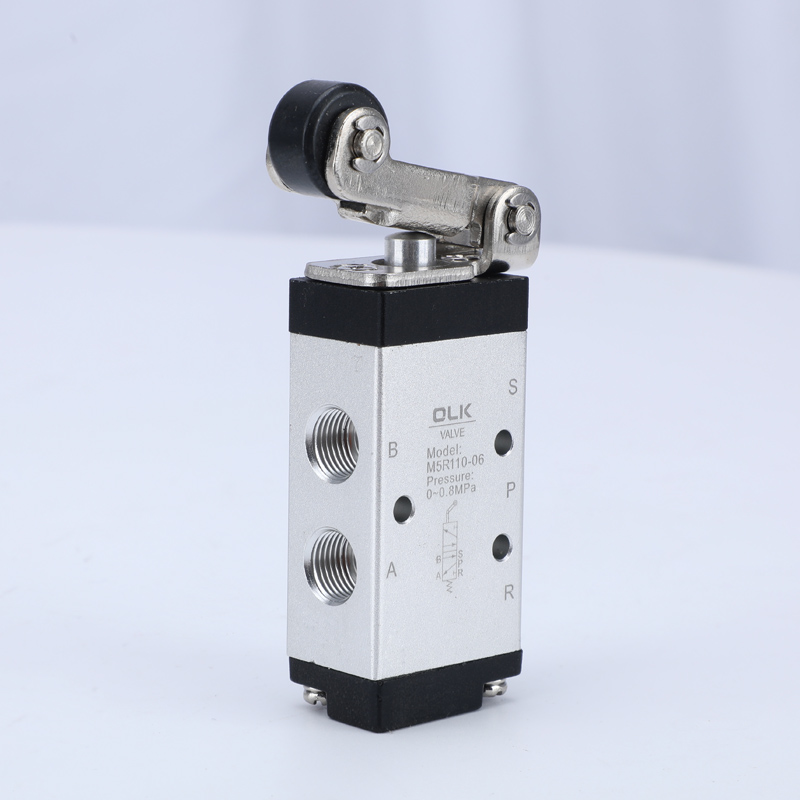

- Rollerus Lever Type (M5R)

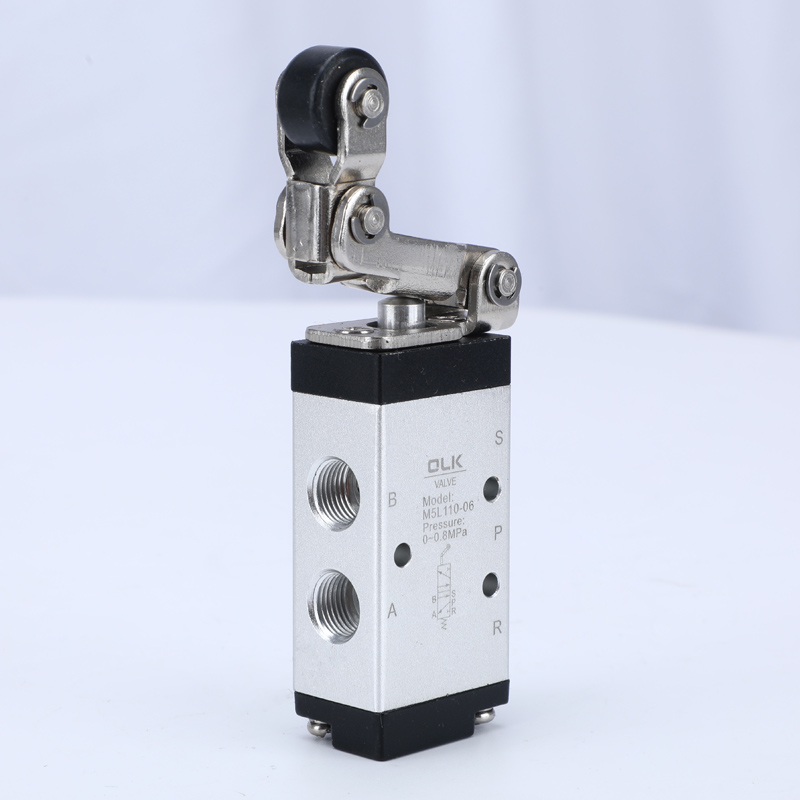

- Unidirectional Rollerus Lever Type (M5L)

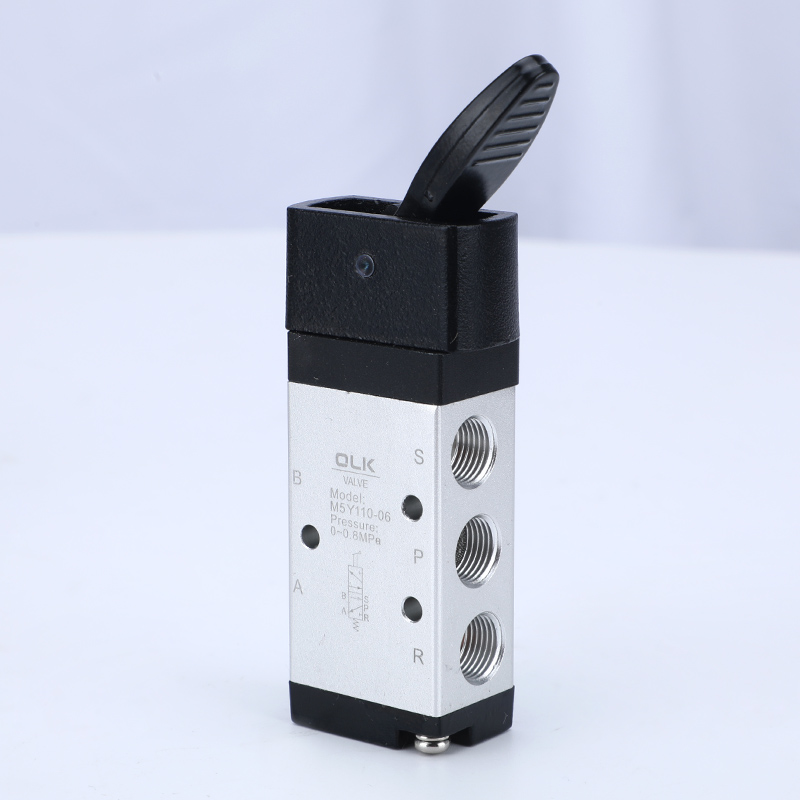

- Rocker Arm Type (M5Y)

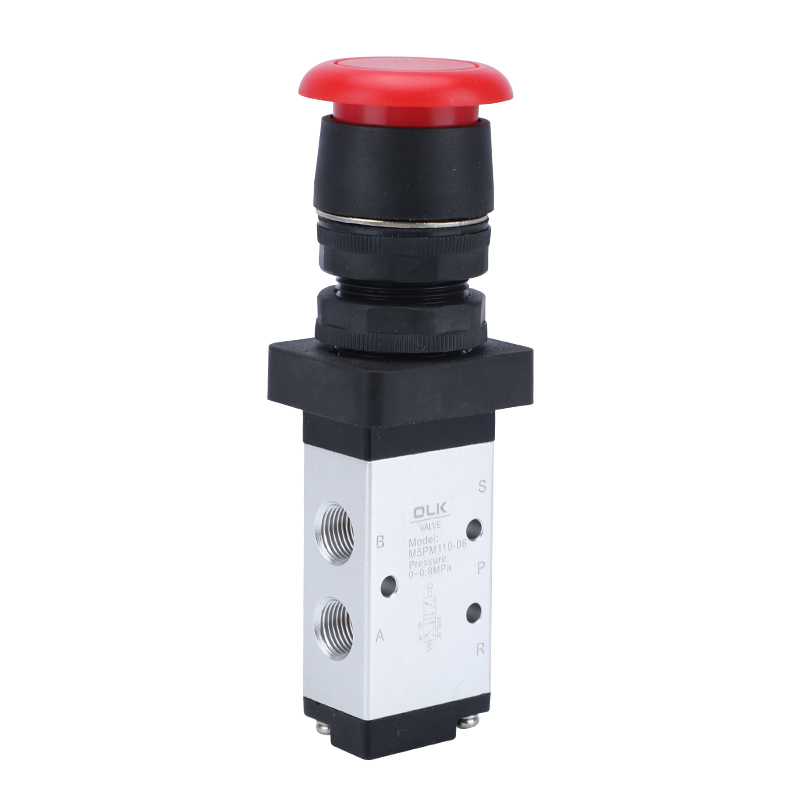

- Fungus Head Button Type (M5PM)

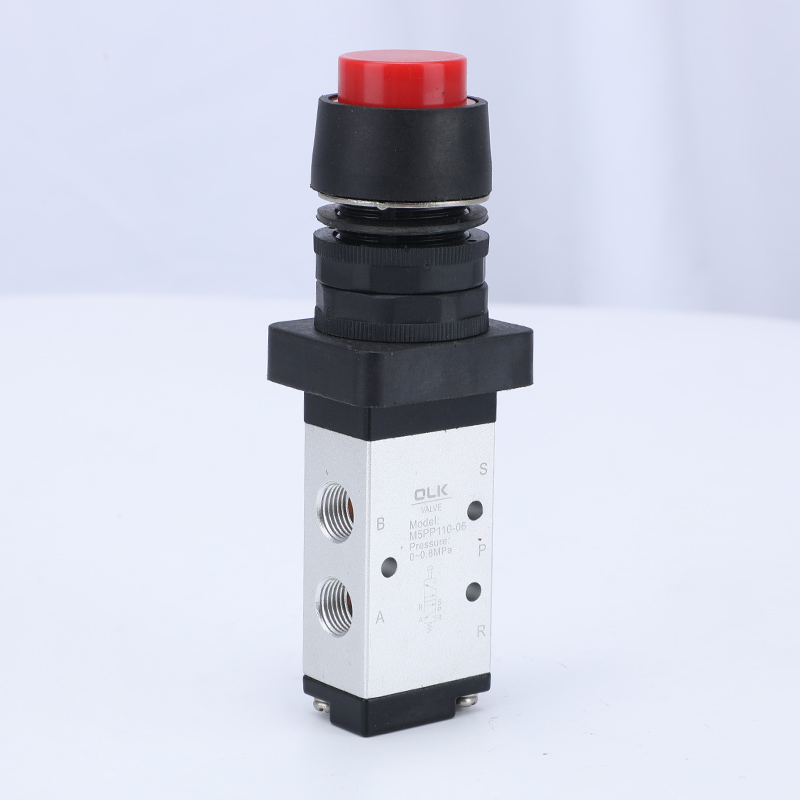

- Caput Puga pyga sublatus Type (M5PP)

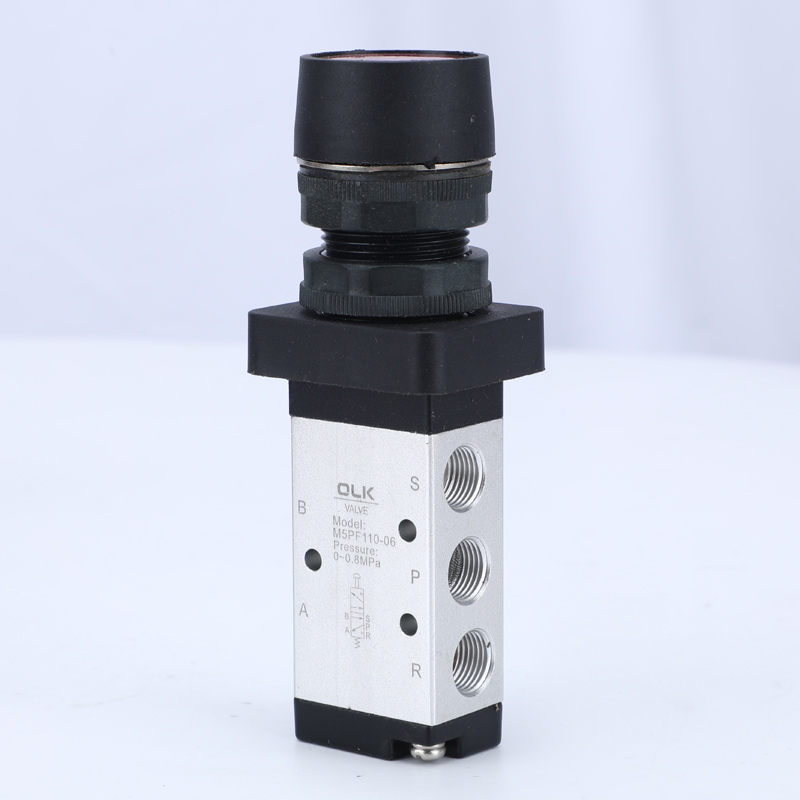

- Caput Puga pyga Flat Type (M5PF)

- Subitis Subsisto Impact Puga pyga Type (M5PL)

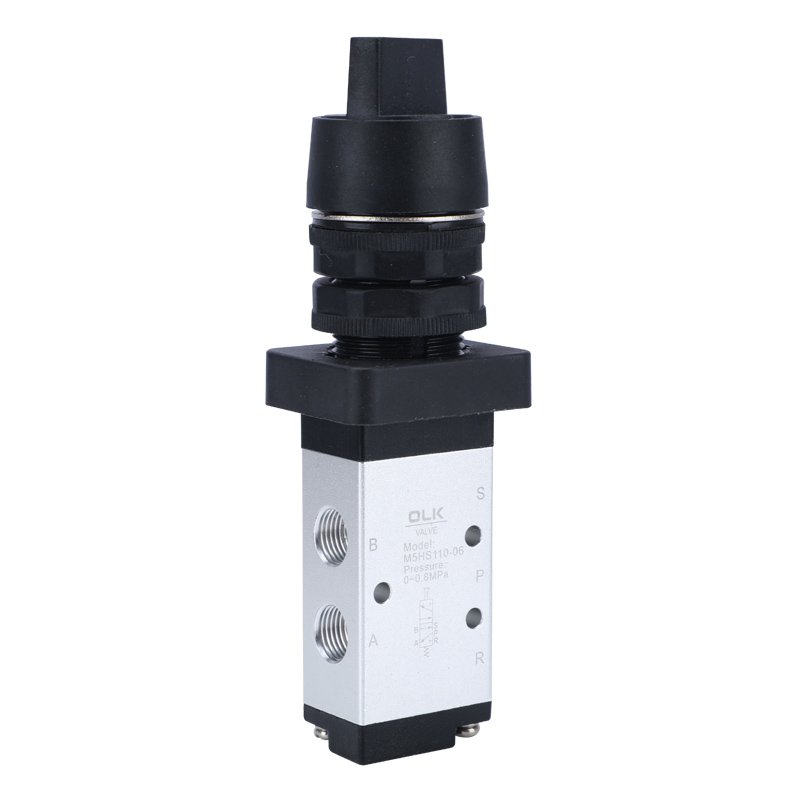

- Elector Type (M5HS)

Pro PM, PP et PF typi tres sunt colores felis eligendi ex: ruber, viridis et niger.

OULEIKAI M5 series button mechanica control valvularum Product notarum

1. Portus exhausti in corpore sita sunt, ad silentiorum institutionem faciliorem, ad strepitum et pollutionem redigendum.

2. M5B, M5R, M5L series copias externas ad mutandum, machinas externas, aptas ad locum deprehendendi vel ictui virgas aptas requiret.

3. M5C,M5D, M5Y,M5PF,M5PM,M5PP,M5PL,M5HS series manually operantur variis sistens capitibus pro opportunitate sub diversis conditionibus.

4. Structura columnae illapsa, vis sine pressione operando (i.e., nullum effectum pressionis dorsi), sigillum internum anuli ad signationem bonam, mutandi flexibilem.

5. Nihil opus est oleo lubricato.

6. Multae positiones officinae ad facilem usum.

7. M5C, M5D, M5Y, M5R, M5L series capitum temperantiae fiunt ex metallo, longam vitam praestans, et maior fides et stabilitas.

M5 series conjunctionis mechanicae penes valvulas parametri Generales

opus medium	Aer (percolatur per filtrum super 40μm)
Actio	Externum directum agendi
Portus diam	05:M5,06:G1/8,08:G1/4
numerus positionum	2 positio 5 via
lubricating	necesse "
Opus pressura range MPa(psi)	0∼1.0(~145)
Guaranteed pressura resistentia	1.5MPa (215psi)
°C	-20∼70
Cross-sectional area mm² (CV valorem)	05:2.5(0.14),06:8(0.45),08:12(0.67)
Corpus materiale	aluminium offensionis

M5 series buttoni mechanica potestate valvularum Installation et applicatio:

Cautiones

1) Pars moderatrix machinalis plasticae facta est et sola operatio manualis permittitur. Noli utere impulsum metallum ad mutandum valvae.

2) M5B, M5C, M5D, M5PM, M5PF, et M5PP series automatice retexere. M5Y, M5HS, et M5PL valvae manuales manually retexere. Post pressionem M5PL in positionem thesauri, nodi gyratorius rotari debet ad reset.

3) Aversam ictum Aspice. Cum quaevis externa vis valvae ad reversorium causat, plaga fundamentalis praepostera non excedat ictum praeposterae ictum specificum in potestate icti tabulae, alioquin damnum valvae corpori faciet.

4) Valvula cylindrus M5L uno modo in unam partem tantum flectere potest (a dextra ad sinistram ferire). Ictum invalidum in alteram partem (reliquit ad dextram curvam).

5) Potestas capitis coniunctio seorsim ordinari potest.
