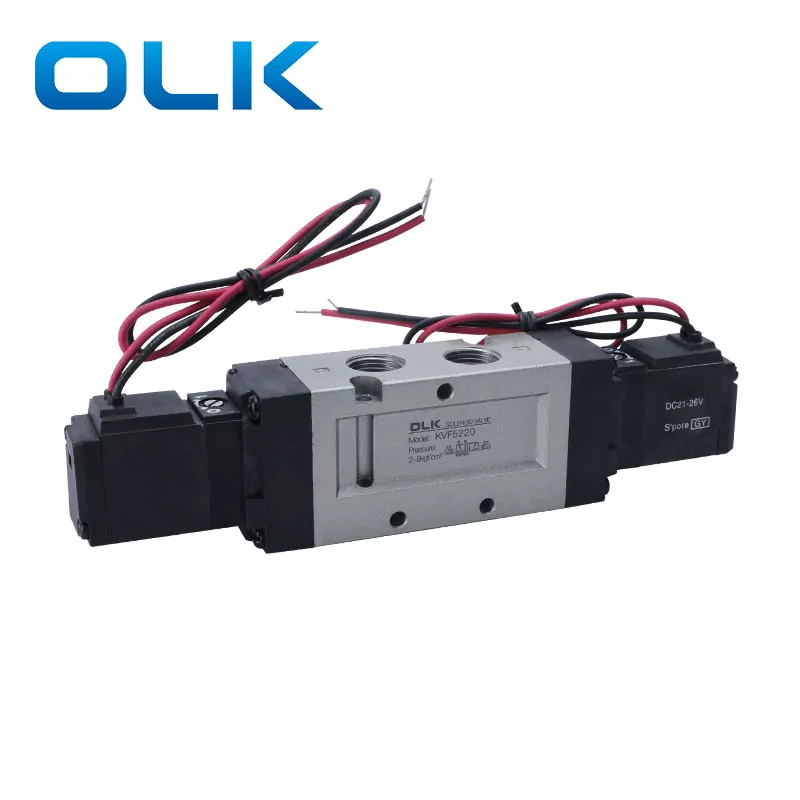

VF5000 Solenoid Valvae 5 Way

Model:VF5220

OLK professio est VF5000 valvae solenoidis 5 modo fabricatores et instructores in Sinis. Si quaeras in VF5000 solenoidei valvae 5 modo producta, pete nobiscum contactum. Certum est nos sequi qualitatem, pretium conscientiae, servitio dicatum.

Brand:
OLK
Series:
VF5120/VF5220/VF5320/VF5420/VF5520
Position:
5/2 way,5/3 way
Port size:
RC3/8

Mitte Inquisitionem

depictio producti

VF5000 valvae solenoidis 5/2 via ,5/3 via est Direct Limbis Type. FUSUS portatur maxime machinata ad frictionem minuendam, pressionem incipiendam et vitam servitutem extendendam. Cum magna magnitudine portus, valvae airfluum altius liberat, id facit specimen ad operandos plures actus vel medium-ad-magnos cylindros. Series portorum magnitudo VF5000 est 3/8.

Eius structura modularis multiplex institutionem sustinet, ut centralem aeris copiam ac limbum simpliciorem reddat. Designati ad altas applicationes pneumaticas, series valvulae solenoides DS/VF 3000 et 5000 plerumque applicatae sunt in machinatione industriae et lineae productionis automatae.

VF5000 valvae solenoides 5 modo Features:

· High flow

·Piping / Modular / Spatium salutaris

· Industrial-Gradus Durabilitas

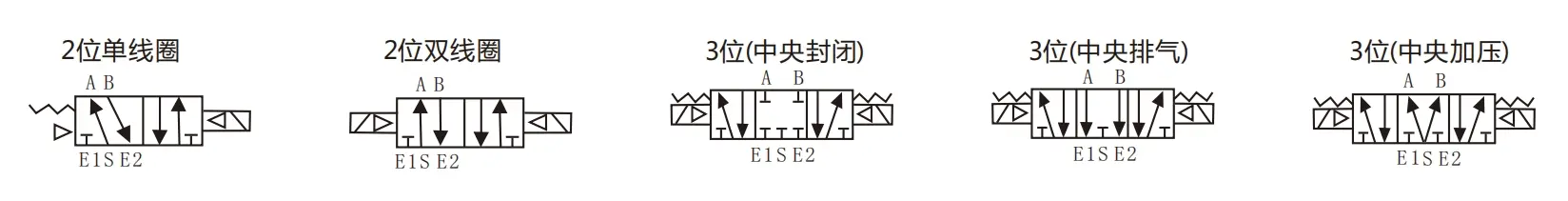

VF5000 solenoid valvae 5 iter symbolum

Ordinare Code
VF5	130	_	4	G	B	02
Exemplar	valvae genus		voltage	linea genus	manul	portum magnitudine
VF5000 solenoid valvae	130: uno solenoid 5/2 modo		3:10VAC	G: linea genus		02: PT3/8
	230: duplex solenoid vlave 5/2		4:220 VAC	D:Din type
	330C: duplex solenoid vlave5 / 3 via clausa centrum		5:24VDC	DZ: DZ cum lumine
	430E: duplex solenoid vlave5/3way exhauriunt centrum		VI: 12VDC
	530P: valvulae solenoidei duplex 5/3 modo pressionis centrum

Communia specificationes
medium opus	Air
expergefaciens temperatus	0-50℃
Lubricatio	Non opus
Manual Override	Screwdriver, densis Type
Inpulsa / Repugnantia Vibrationis	30G/5G (8.3--2000Hz)
clausura	Dustproof

Exemplar	positione	coil	kgf/cm² (Mpa)	Responsio Tempus (ms)	Maximilianus. Operating Frequency	portum magnitudine	Effective Cross-Sectional Areamm²(CV)	kgf

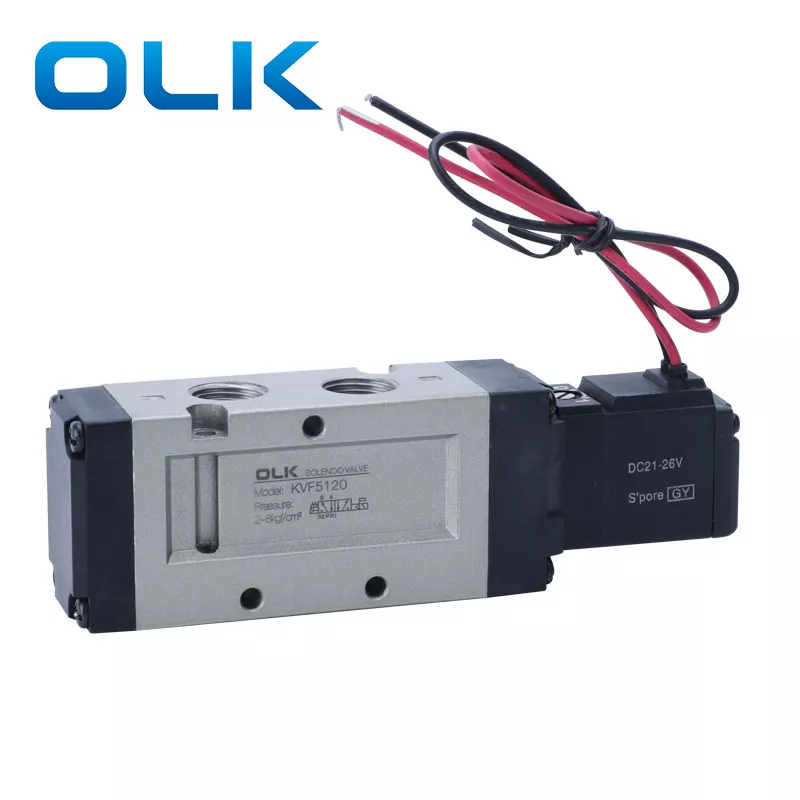

VF5120-□△B-02	2 position	una actio	1.5～9(0.15～0.8)	≤30 ms	5	PT3/8	45(2.5)	0.38
VF5220-□△B-02	2 position	duplex actio	1~9(0.1~0.9)	≤30 ms	5	PT3/8	45(2.5)	0.45
VF5320-□△B-02	III positione	duplex solenoid vlave5 / 3way centrum clausa	1~9(0.1~0.9)	≤50 ms	3	PT3/8	36(2).	0.53

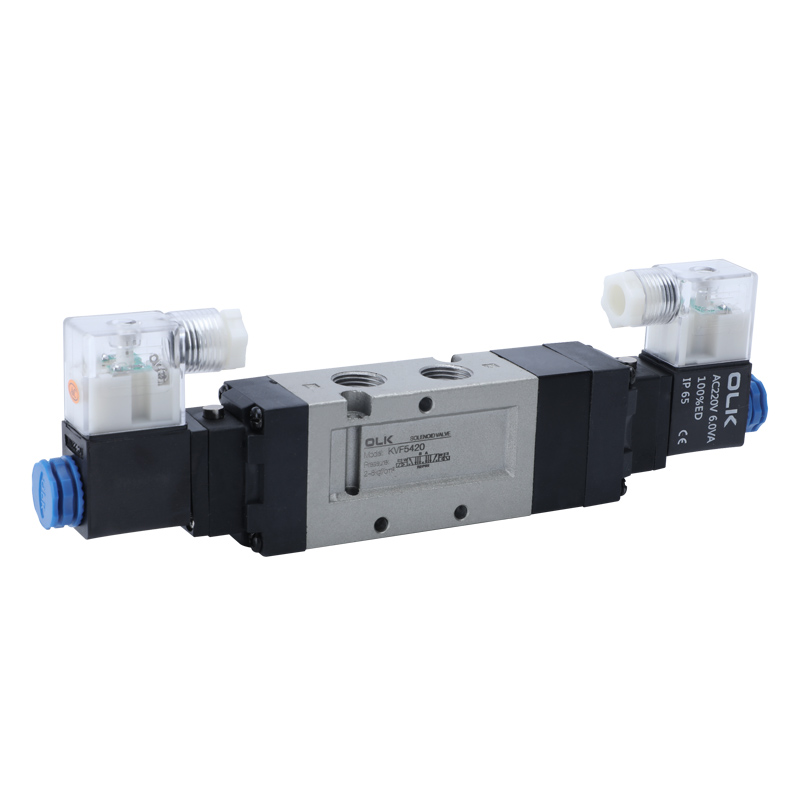

VF5420-□△B-02	III positione	duplex solenoid vlave5 / 3 modo exhauriunt centrum	1~9(0.1~0.9)	≤50 ms	3	PT3/8	41.4(2.3)	0.53

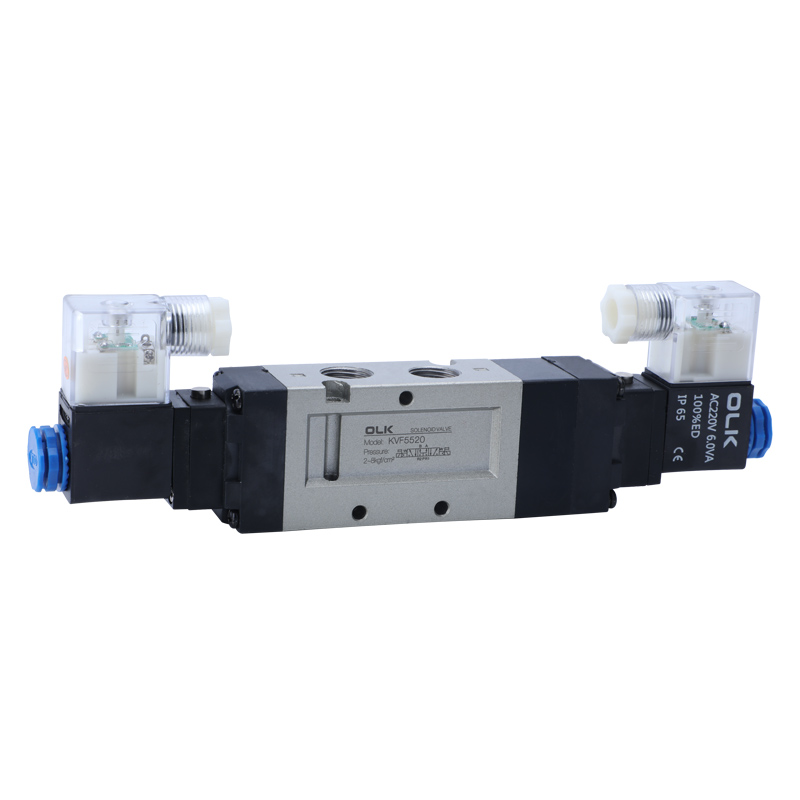

VF5520-□△B-02	III positione	duplex solenoid valvae 5/3 modo pressura centrum	1~9(0.1~0.9)	≤50 ms	3	PT3/8	36(2).	0.53
