VF3000 Solenoid valvae 5 Way

Model:VF3130

OLK professio est VF3000 solenoidei valvae 5 modo fabricantium et praebitorum in Sinis. Si vis in VF3000 solenoidei valvae 5 modo producta interesse, pete nobiscum contactum. Certum est nos sequi qualitatem, pretium conscientiae, servitio dicatum.

Brand:
OLK
Series:
VF3130/VF3230/VF3330/VF3430/VF3530
Port size:
RC1/4
Position:
2 position 5 way/3 position 5 way

Mitte Inquisitionem

depictio producti

Gubernator internus VF3000 valvae solenoidis 2 situs 5 via et 3 positio 5 via, Direct Lima Type

Volva gerens speciali processu machinis utitur ad frictioni, humilis pressionis principii et longioris vitae servitutis. Magna portus amplitudo praebet aerem altiorem, medium ad pellendum apta magnis cylindris vel pluribus actuatoribus.

Modularis consilium multiplicem valvulam, aeris copiam centralem, et limbum reduci permittit. DS/VF 3000 et 5000 series valvae solenoidis late adhibentur in systematis ditionis pneumaticae alti-fluentiae pro automata linearum productione et machinatione industriae.

VF3000 valvae solenoidis 5 modo Features:

· High flow

·Piping / Modular / Spatium salutaris

· Industrial-Gradus Durabilitas

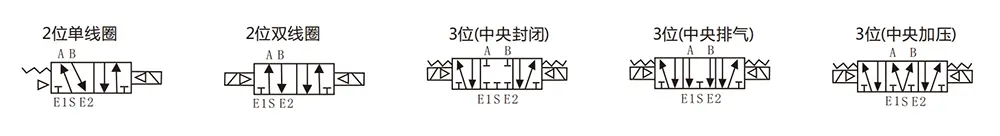

VF3000 solenoideo valvae 5 modo symbolo

Ordinare Code
VF3	130	_	4	G	B	02
Exemplar	valvae genus		voltage	linea genus	manul	portum magnitudine
VF3000 solenoidalis valvae	130: uno solenoid 5/2 modo		3:10VAC	G: linea genus		02: PT1/4
	230: duplex solenoid vlave 5/2		4:220 VAC	D:Din type
	330C: duplex solenoid vlave5 / 3 via clausa centrum		5:24VDC	DZ: DZ cum lumine
	430E: duplex solenoid vlave5/3way exhauriunt centrum		VI: 12VDC
	530P: valvulae solenoidei duplex 5/3 modo pressionis centrum

Communia specificationes
medium opus	Air
expergefaciens temperatus	0-50℃
Lubricatio	Non opus
Manual Override	Screwdriver, densis Type
Inpulsa / Repugnantia Vibrationis	30G/5G (8.3--2000Hz)
clausura	Dustproof

Exemplar	positione	coil	kgf/cm (Mpa)	Responsio Tempus (ms)	Maximilianus. Operating Frequency	portum magnitudine	Effective Cross-Sectional Areamm²(CV)	kgf
VF3130-□△B-02	2 position	una actio	1.5～9(0.15～0.8)	≤30 ms	5	PT1/4	17.1(0.95)	0.21
VF3230-□△B-02	2 position	duplex actio	1~9(0.1~0.9)	≤30 ms	5	PT1/4	17.1(0.95)	0.29
VF3330-□△B-02	III positione	duplex solenoid vlave5 / 3way centrum clausa	1~9(0.1~0.9)	≤50 ms	3	PT1/4	13.5(0.75)	0.42
VF3430-□△B-02	III positione	duplex solenoid vlave5 / 3 modo exhauriunt centrum	1~9(0.1~0.9)	≤50 ms	3	PT1/4	17.1(0.95)	0.42
VF3530-□△B-02	III positione	duplex solenoid valvae 5/3 modo pressura centrum	1~9(0.1~0.9)	≤50 ms	3	PT1/4	16.2(0.9)	0.42
