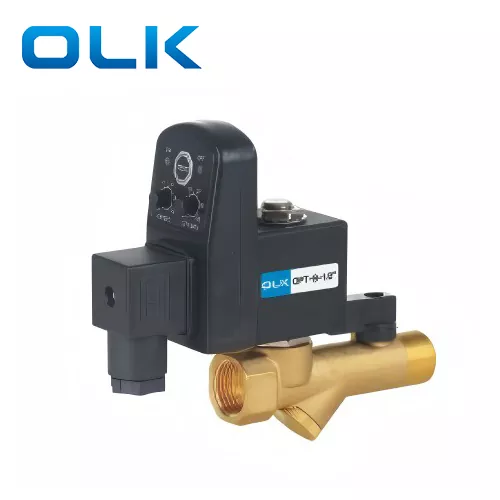

OPT-B Electronic Vicis Auto Drain

OLK OPT-B Electronic Timer Auto Drain (Integrated Type) certam institutionem dirigit ac ut valvulam exhauriendam universalem designat. Plectrum corpus quale aeris fit. A constructum-in tegumentum colum colum periodicum postulat ut vita servitii efficiatur.

Mitte Inquisitionem

depictio producti

OLK OPT-B Electronic Timer Auto Exhaurire sustinet tam electricum imperium et shutoff manualem ut tutelam dualem; externum manuale shutoff transitum servatur in corpore valvae ne fluxus durante potentia deficiendi. Limen in latere ab orbe situm est, medius portus sine stamina exhauriens exitum, portus ultimus exitus est.

Typus A (consilium separatum) et Type B (consilium integratum) easdem functiones participant et solum in structura institutionis differunt. Utrumque aptum aeri compressoribus, dryers aer, et dryers refrigerated.

OPT-B Electronic Vicis Auto Exhaurire Characteres

Intempestivo INCILE

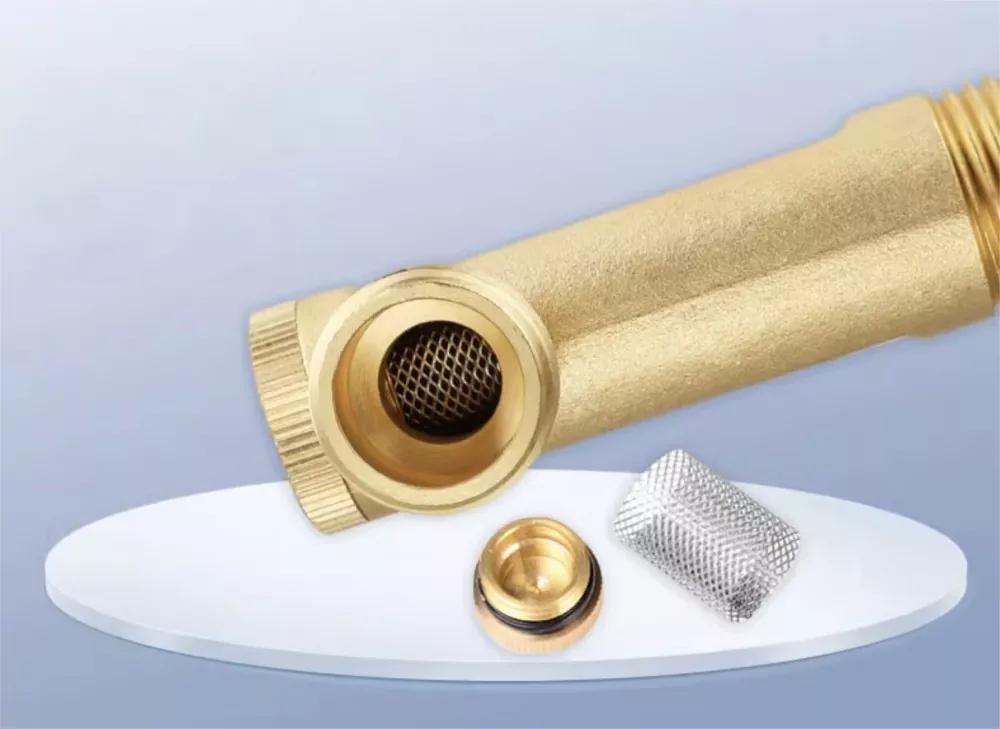

Inaedificata in filter 'collaborative

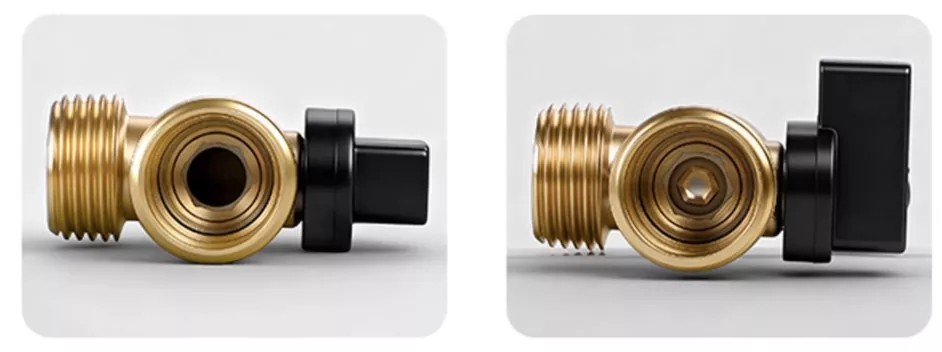

Manual Propter Shut-off Duplex Salutis

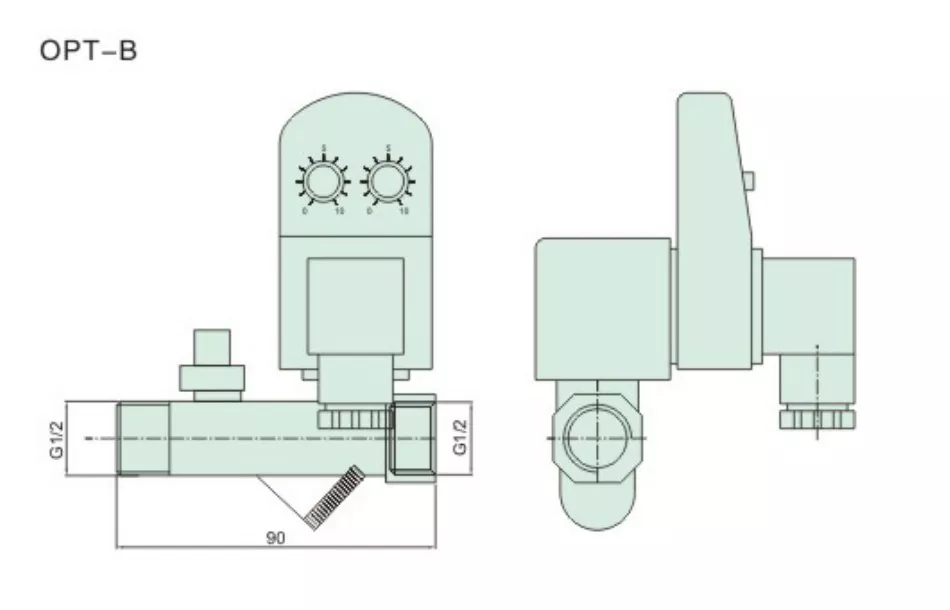

G1/2≈20MM

Designatio coniuncta

Mandans signum
OPT	-	A
Exemplar.		Descriptio
2/2way OPT electronic auto valvae exhauriunt		A: separatum
		B: junctum

Item	OPT-A / OPT-B
Intervallum tempus (ON)	0.5-45 minuta
Exhaurire Tempus (ON)	0.5-10 seconds
Manual Test Button	Praesto, micro switch
Potentia Supple Voltage	24-240V AC/DC 50/60Hz (AC380V ad libitum petitionem)
Current Consummatio	Maximilianus. 4 mA
Ambiens Temperature	-40°C ad +60°C
Praesidium Classis	IP65 (cum recte installed)
Claude Material	Flamma retardans ABS plastica
Electrical Connection	DIN43650A
Testimonium lux	DUXERIT indicator for DE / ON

Item	OPT-A*	OPT-B*
Type	2/2 Viam Direct Agens Valve
Inlet / Outlet Portus Location	G1/2 (≈20mm)	Inlet: G1/2 masculinum, Outlet: G1/2 femina (≈20mm)
Pondus	506g	440g

Maximilianus. Opus Pressura	1.0 MPa
Min/Max Ambient Temp.	2°C / 55°C
Maximilianus. Medium Temperature	90°C
Corpus valvae Material	Brass (Stainless steel version available in request)	Brass
Insulation	Classis H
Praesidium Classis	IP65 (cum recte installed)
Voltage	DC24V, AC220V
Tolerantia intentione	±10%
