4v100 solenoid valvae V modo

Model:4V120

Quod haec est introductio ad 4v100-08, Olk spem ad auxilium vobis melius intelligere 4v100 solenoid valvae V modo pneumatic solenoid valvae. Welcome New and Vetus Customers ad continue cooperari nobiscum creare meliorem futurum simul!

Mitte Inquisitionem PDF Download

Rating: 5.0

(Rating Comes: 1)

depictio producti

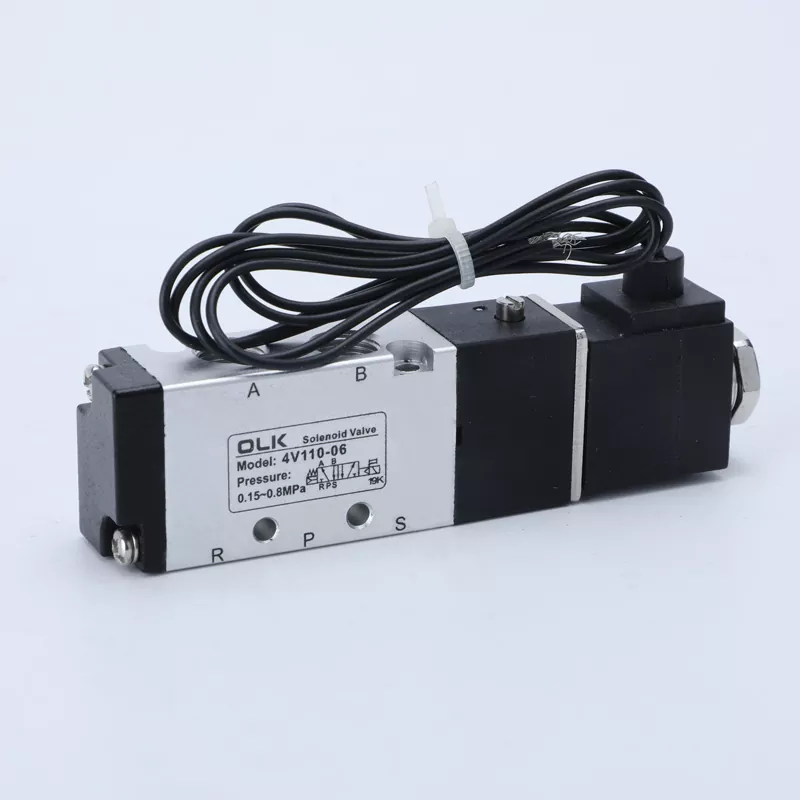

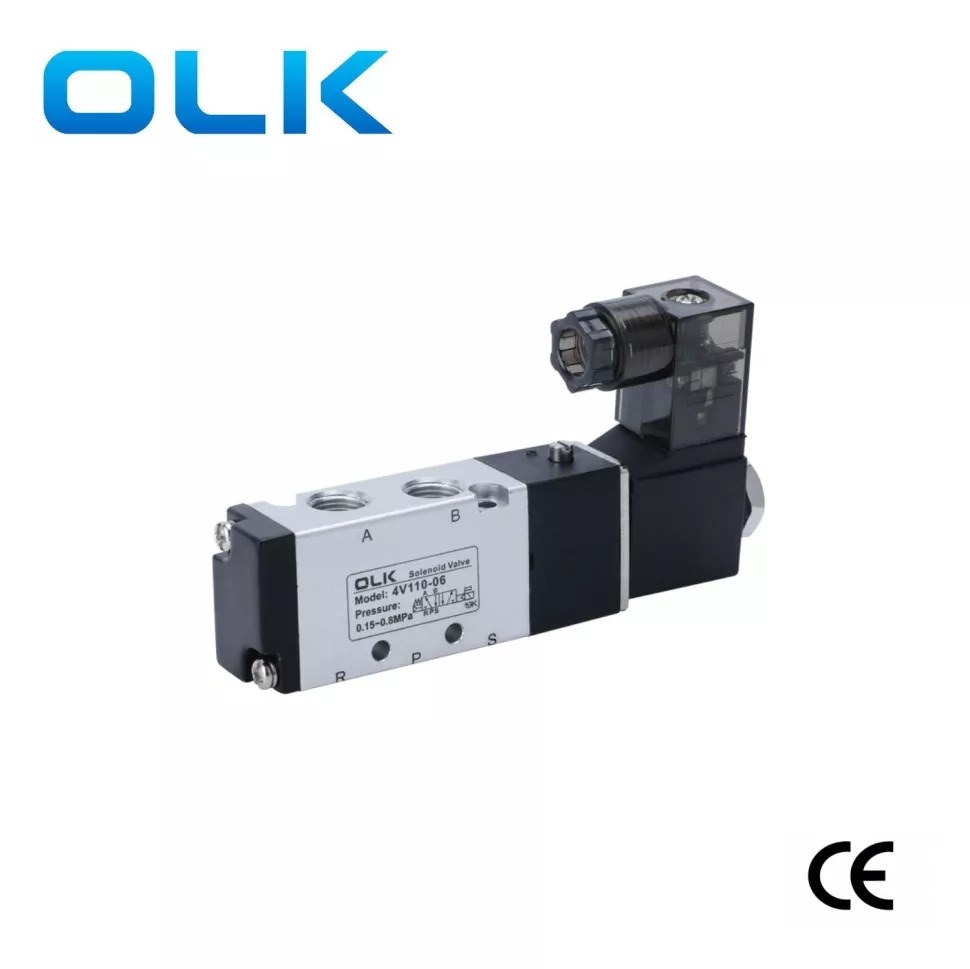

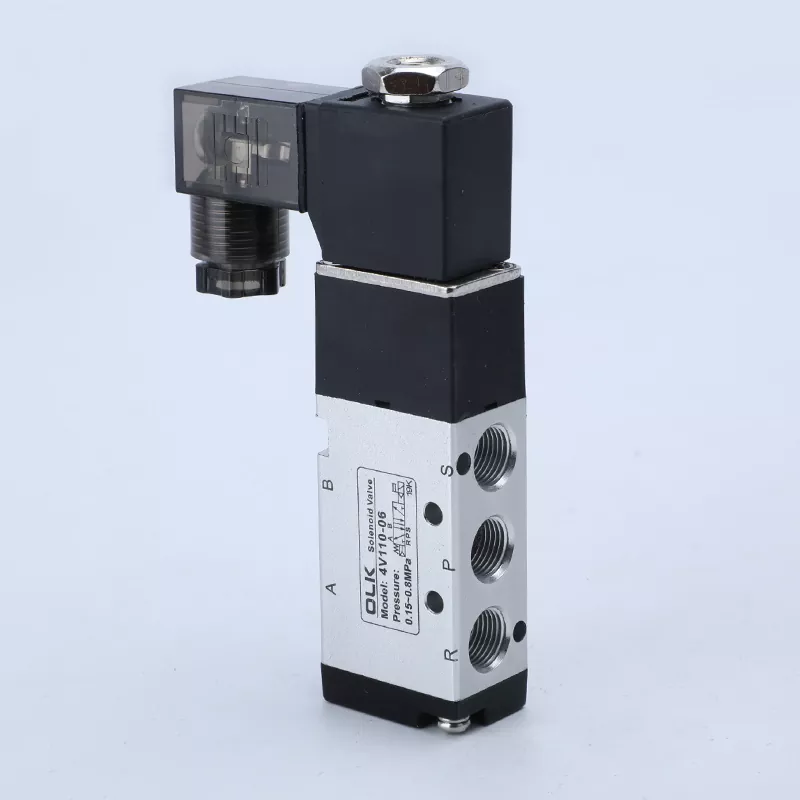

Olk 4v100 solenoid valvae V modo, 5/2 modo pneumatic solenoid valvae Transierunt CE certification.The species magnitudine est minima exemplar, cum a pacto consilium et interface specie 1/8. 4v100 solenoid valvae apta minor pneumaticae systems cum inferioribus fluxus rates. Applicantur ad parva cogitationes et parva cylindra, quae requirere precise imperium.

Code
4v	1	10	6	Ac110v
Exemplar	Codex	Type CYMBALON	Portus magnitudine	voltage	CREPITUS probationem coil
4v: Sports2 (III) Position Solenoid CYMBALON	I, C Series	X: Soenoid 5/2 modo	M5: M5X0.8	Ac220v	Nec: Din Type
		XX: Double solenoid valvae 5/2 modo	VI: 1/8 ''	Dc24v	I: lineam type
		30C: Double Solenoid Vlave5 / 3way clausa Center		Ac110v
		30e: Double Solenoid Vlave5 / 3way exhauriunt Center		Ac24v
		30p, duplex solenoid valvae 5/3 via pressura centrum		Dc12v

4v100 solenoid valvae V Wayparameters data:

Exemplar	4v110-M5 4v120, M5	4v130c-M5 4v130E, M5 4v130p, M5	4v110-06 4v120-06	4v130c-VI 4v130e-VI 4v130p-VI
Opus medium	Air (filter per filter screen de super 40μm)
Actio modus	Pilot Type
Portus magnitudine	= Outlet = exhauriunt Portus = M5		== G1 == Intus == / VIII
Efficens Cross-Sectional Area	5.5mm² (cv 0,31)	5.0mm² (CV = 0.28)	12.0MM² (CV = 0.67)	9.0MM² (CV 0.5)
Positiones	5/2 Portus	5/3 Portus	5/2 Portus	5/2 Portus
Pressura range	0.15-0.8 MPA (21-114psi)
Probationem pressura	1.5MPA (215Psi)
Operantes pressura	'-20-70 ℃
Corporis materia	Aluminium Alloy
Lubriciae	Non opus
Max.operating frequency	V temporibus / secundi	III tempora / secundi	V temporibus / secundi	III tempora / secundi
Pondus	4v110-M5: 130g 4v120, M5: 175g	CC g	4v110-06: 120g 4v120-06: 175g	CC g
