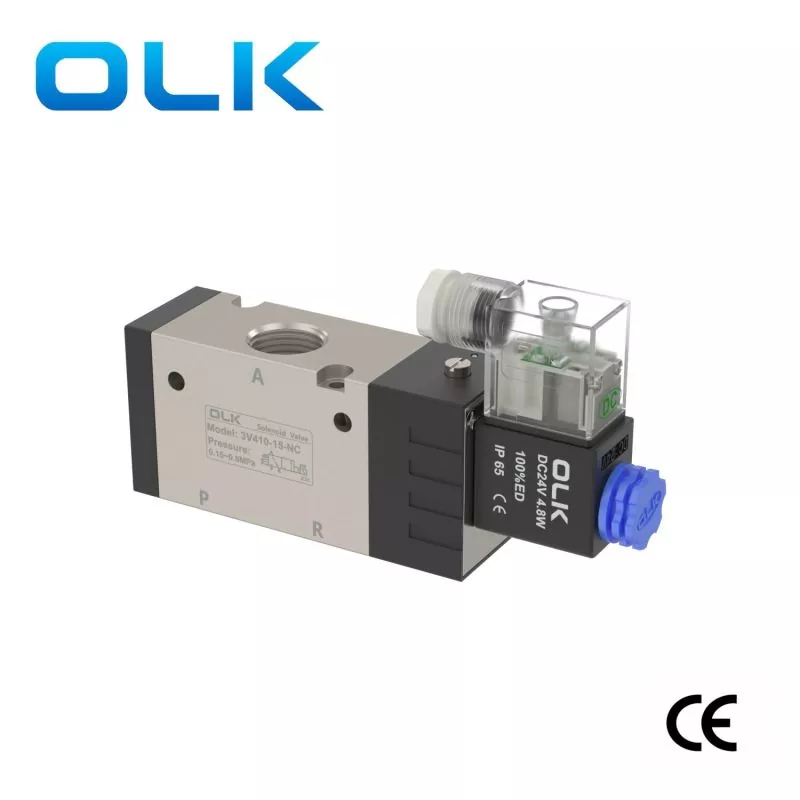

3v400 Series Solenoid Valvae 3 Way

Model:3V400

OLK, nobilis fabrica in Sinis, volens tibi offerre 3v400 Series Solenoid Valvae 3 Via. Promittimus tibi optima post-venditionis subsidia ac promptae traditionis providere, pete nobiscum contactum.

Mitte Inquisitionem

depictio producti

OLK 3 positio 2 modo valvae solenoidis quattuor exemplar habent ad eligendum, gubernator internus modus agendi genus et nullum opus grease.PT filo et stamina duo genera sequelae fieri possunt.IP65(DIN40050) gradus tutelae et gradus resistentiae calor B gradus.

3v400 Series Solenoidei VALVAE 3 Via una actione cylindrici ope uteris in ambitus asperos laborantes.

Ordinare Code

3V	4	10	15
Model	Code	valvae genus	portum magnitudine	Genus actio
3V:3/2 modo valvae solenoidei	4:400 series	10: una valvae solenoidei 5/2 via	15:G1/2	NC: Northmanni clausi

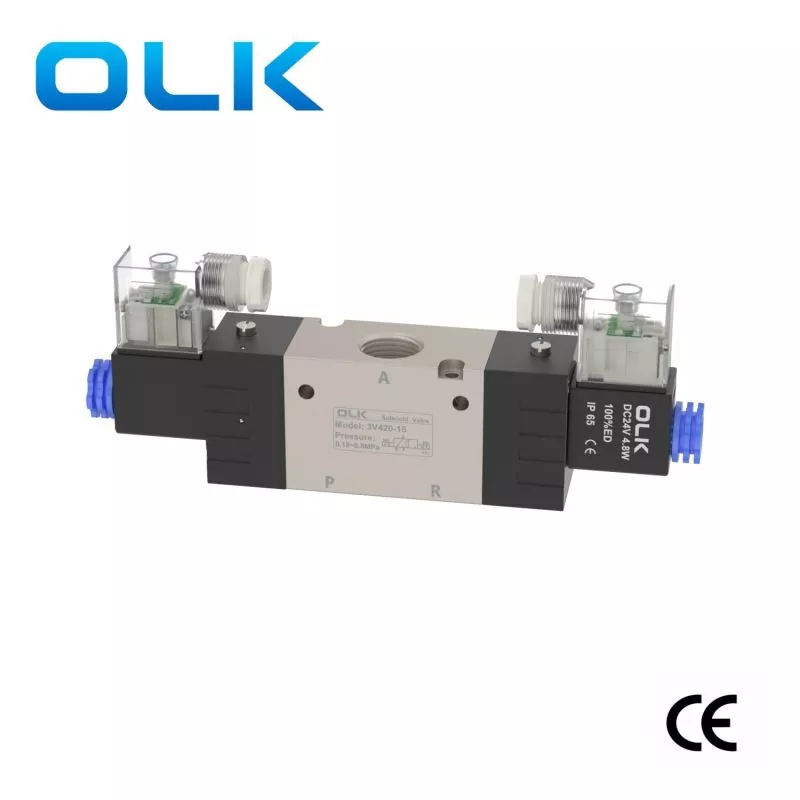

		20: valvulae solenoides duplex 5/2		NO: Northmanni aperta

3v400 Series Solenoidei Valvae 3 Viam parametri data:

Model	3V410-15	3V420-15
medium opus	Air（Filter per filtrum velum supra 40μm）
modus agendi	Internum Gubernator Type

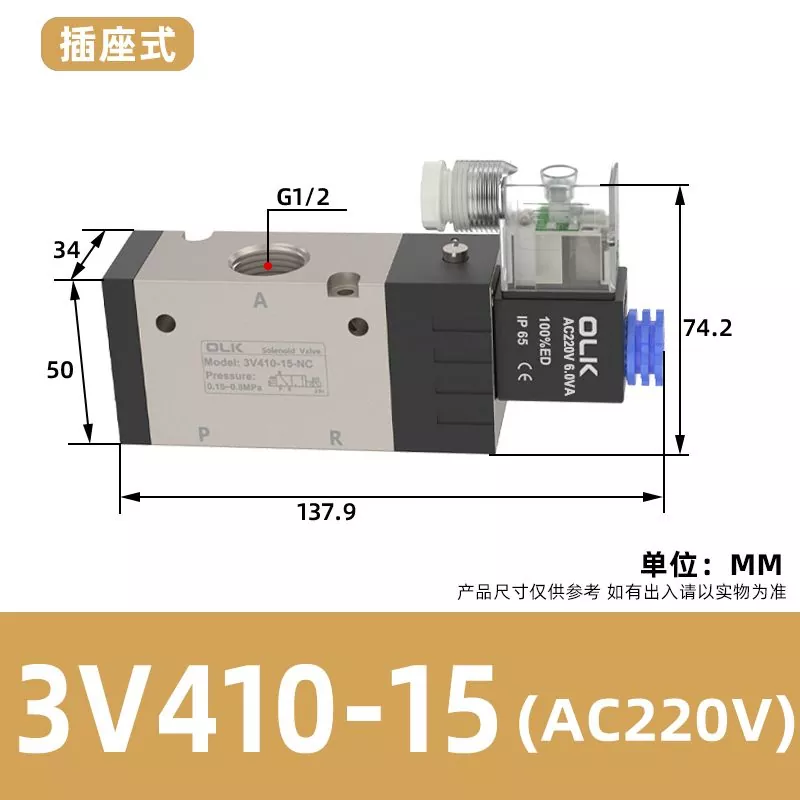

portum magnitudine	Inlet=Outlet=G1/2
Effective crucis-Lorem area	50mm²（Cv=2.79）
positiones	3/2 Port
Pressura range	0.15-0.8 MPa (21-114psi)
Probatur pressura	1.5MPa (215psi)
evigilans Pressura	5-60 (23-140° F)
Corpus Material	Aluminium Alloy
Lubricatio	Nullam eget
Max.Operating Frequency	III temporibus / secundo
Insulatio Gradus	B Level
Min.Excitation Tempus	0.05 Sec
