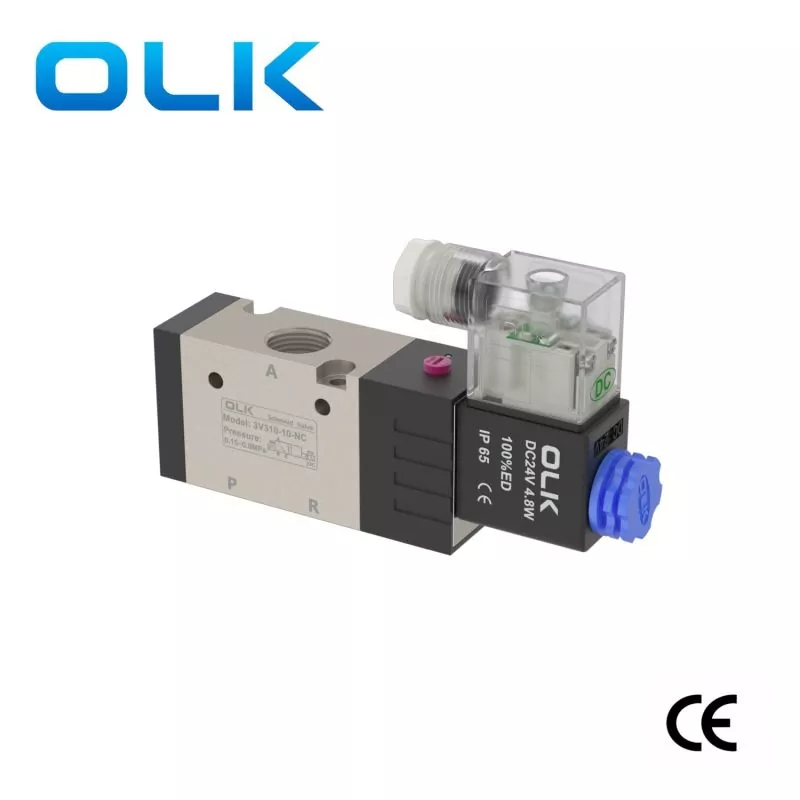

3v300 Series Solenoid Valvae 3 Way

Model:3V300

OLK professio est 3v300 Series Solenoidei Valvae 3 Viae fabricatores et instructores in Sinis, certificari potes in valvae 3V300 seriei Lupi et nativus ex officina nostra, et tibi optimam post venditionem servitii et partus opportune offeremus.

Mitte Inquisitionem

depictio producti

OLK fabricandi professio 3positionis 2 modo, Gubernator internus typus valvae solenoidis aer, 3v300 Series Valvae Solenoidis 3 Via pneumatica dicione solenoidei adhibita ab aluminio mixturae. Materia est corrosio repugnans et iracundus resistens.

Adaequari potest cum missionibus automation industrialibus, sicut fluida moderatio et conversio in variis lineis productionis automated, apparatu pneumatico, machinis medicinis, etc.

Ordinare Code

3V	3	10	10	NO
Exemplar	Code	valvae genus	portum magnitudine	Genus actio
3V:3/2 modo valvae solenoidei	3:300 series	10: unum solenoid 5/2	08:G1/4	NC: Northmanni clausi
		20: valva solenoidei duplex via 5/2	10: G3/8	NO: Northmanni aperta

Series 3V300 valvae solenoidalis 3 modo data parametri:

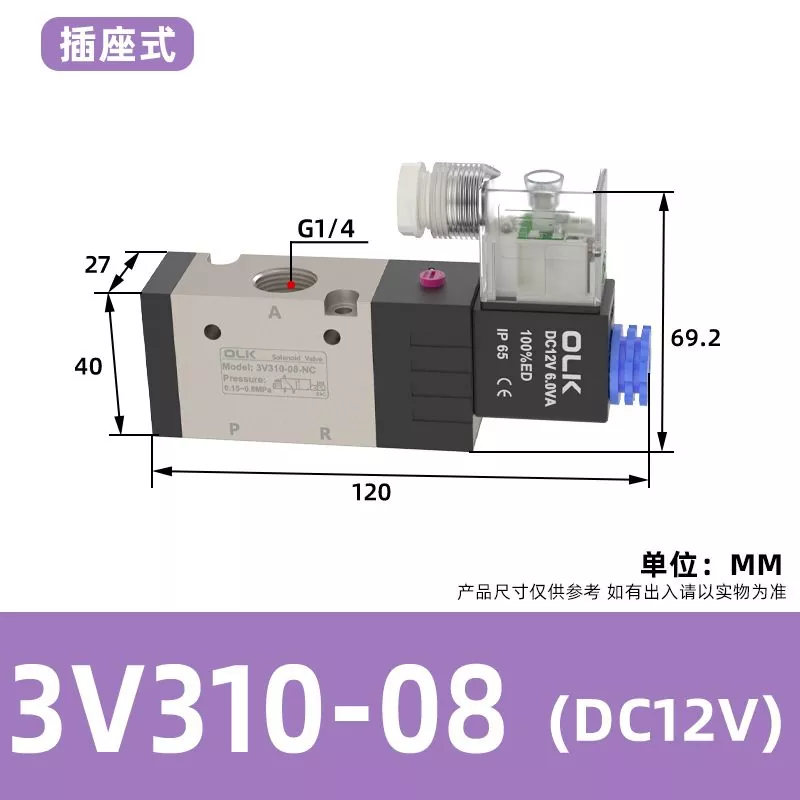

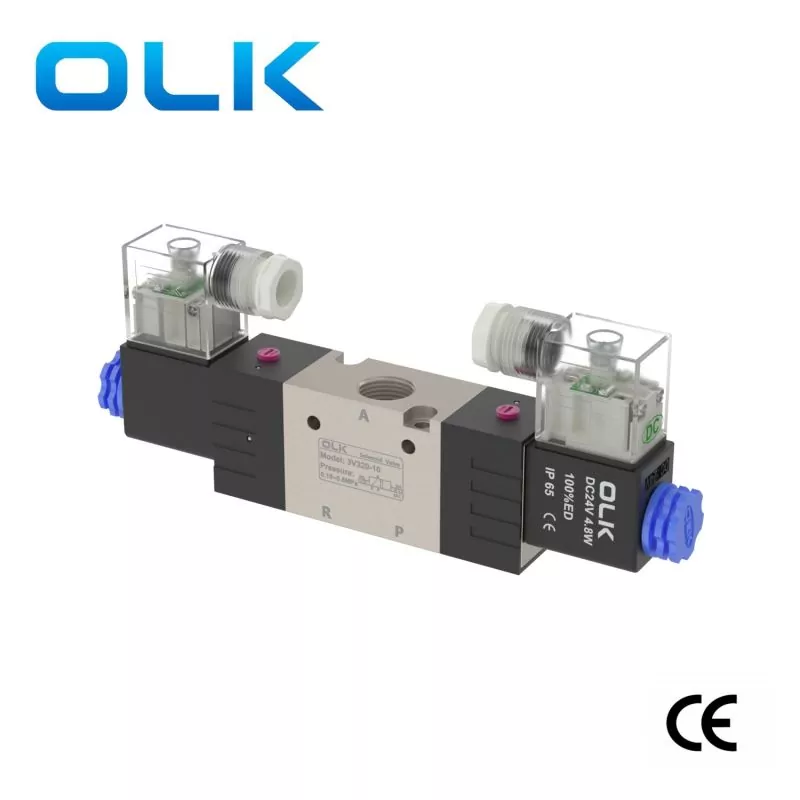

Exemplar	3V310-08	3V320-08	3V310-10	3V320-10
medium opus	Air（Filter per filtrum velum supra 40μm）
modus agendi	Internum Gubernator Type
portum magnitudine	Inlet=Outlet=G1/4		Inlet = Outlet=G3/8
Effective crucis-Lorem area	25mm²（Cv=1.39）		30.0mm²（Cv=1.67）
positiones	3/2 Port
Pressura range	0.15-0.8 MPa (21-114psi)
Probatur pressura	1.5MPa (215psi)
evigilans Pressura	'-20-70
Corpus Material	Aluminium Alloy
Lubricatio	Non opus

3/2 via 3V300 solenoid valvae LINEA / DIN genus voltage elige

3V310-08 AC24V	3V310-08 AC110V	3V310-08 AC220V	3V310-08 DC220V	3V310-08 DC24V
3V310-10 AC24V	3V310-10 AC110	3V310-10 AC220V	3V310-10 DC220V	3V310-10 DC24V
3V320-08 AC24V	3V320-08 AC110V	3V320-08 AC220V	3V320-08 DC220V	3V320-08 DC24V
3V320-10 AC24V	3V320-10 AC110V	3V320-10 AC220V	3V220-10 DC220V	3V320-10 DC24V
