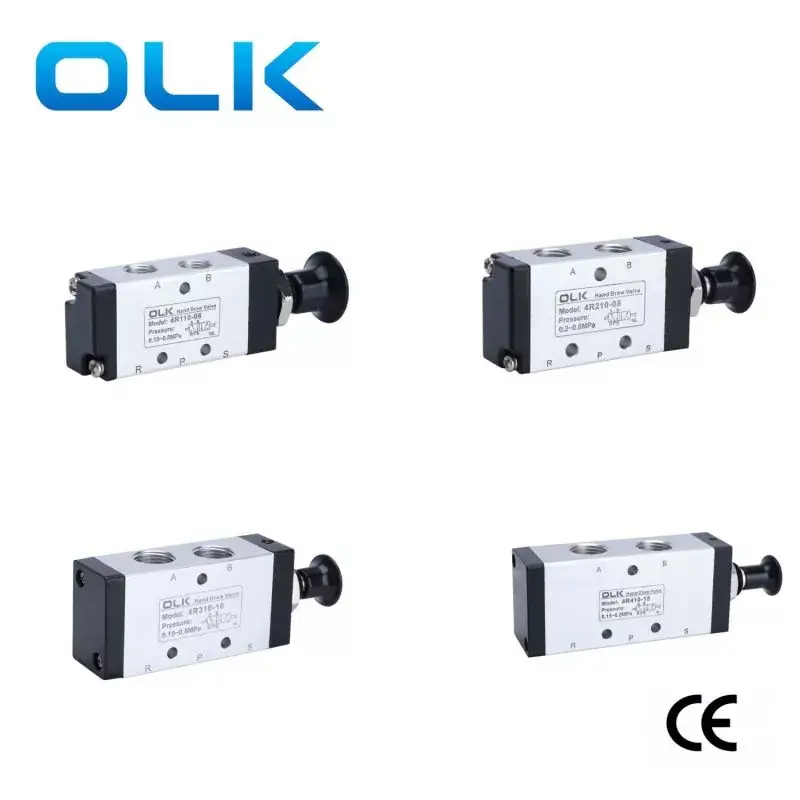

4R Series Manu Operated Valvae V Via

Model:4R210-08

Ut professio 4R series manus valvae operatae 5 modo fabricare, certo certificare potes emere 4R seriem manus valvae operatae ex officina nostra et OLK tibi offerent optimam servitutem post venditionem et opportunam traditionem.

Mitte Inquisitionem

depictio producti

Ouleikai (OLK) 4R series manus valvae operatae 5 modo, consilium 2/5 adoptat, imperium et commutationes varios gasorum efficiens, ad exigentias diversorum systematum pneumaticorum aptus. Manus viverra operatio directionem mutationis moderatur, idoneus operariis facit ad directionem fluere manually moderandum cum alta flexibilitate.

Notae: Quaeso ne aestimatum pressionis laboris pressionis manus viverra valvae excedant, ut salutem et stabilitatem operis afficiant. Usus missionum: Usus ad gas imperium in systematibus laboratorio gasis et similibus applicationibus.

SYMBOLUM:

Codicem ordinans:
4R	2	10	08
EXEMPLUM:	SERIES	OFFICIUM:	PORTUS MENSURA:
4L:5/2	1:100 series	X: situm	100 series:06:G1/8
	2:200 seires		200 series:6:G1/8
	3:300 seires		200 series:08:G1/4
			300 series:08:G1/8
			300 series:10:G3/8

OLK 4R series manus valvae operatae 5 modus parametri generalis

opus medium	Aer (percolatur per filtrum super 40μm)
Actio	Manual recta actio
lubricating	necesse "
Opus pressura range MPa(psi)	0∼0.8(0~114)
Guaranteed pressura resistentia	1.5MPa (215psi)
°C	-20∼70
Corpus materiale	aluminium offensionis

OULEIKAI 4R series manus valvae operatae 5 modo parametri diversi

exemplar	Portus diam	Fluxus crucis-sectionalis area mm² (CV valorem)
4R110-M5	M5	5.5(0.3)
4R110-06	G1/8	12.0(0.67)
4R210-06	G1/8	14.0(0.78)
4R210-08	G1/4	16.0(0.89)
4R310-08	G1/4	25.0 (1.39)
4R310-10	G3/8	30.0 (1.67)
4R410-15	G1/2	50.0(2.79)
