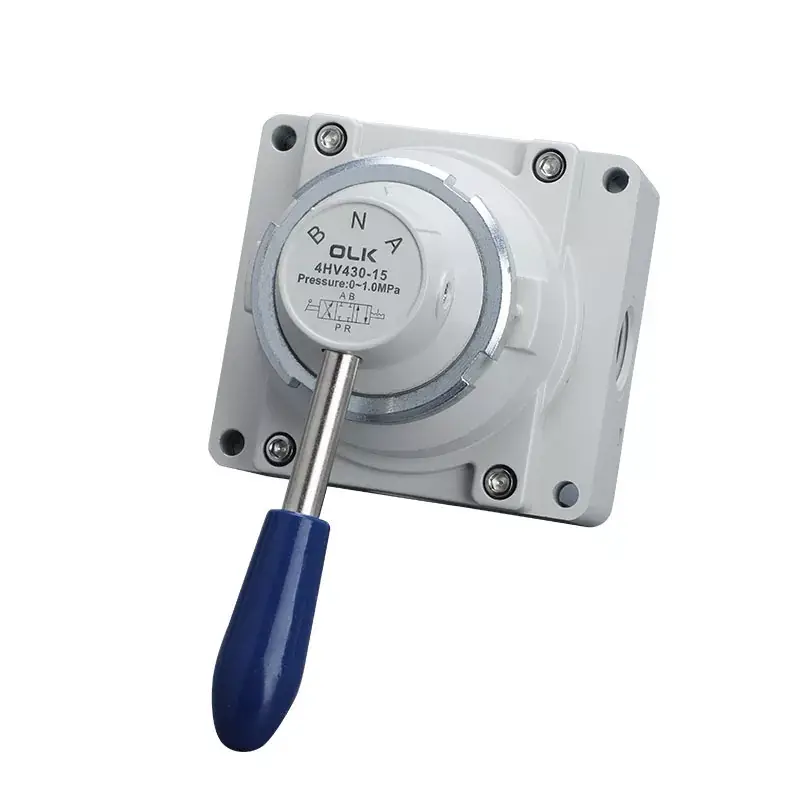

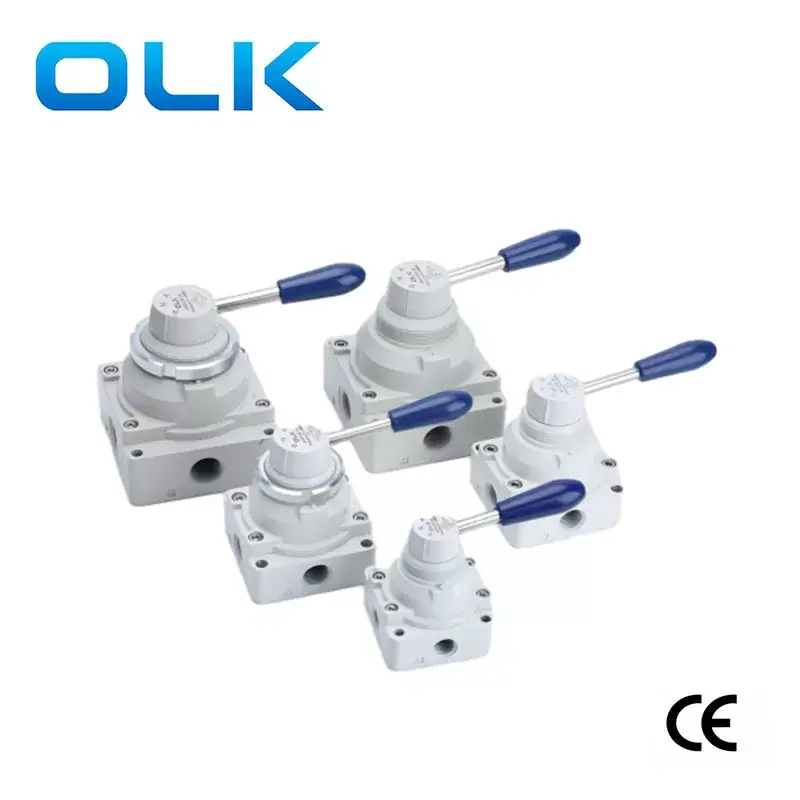

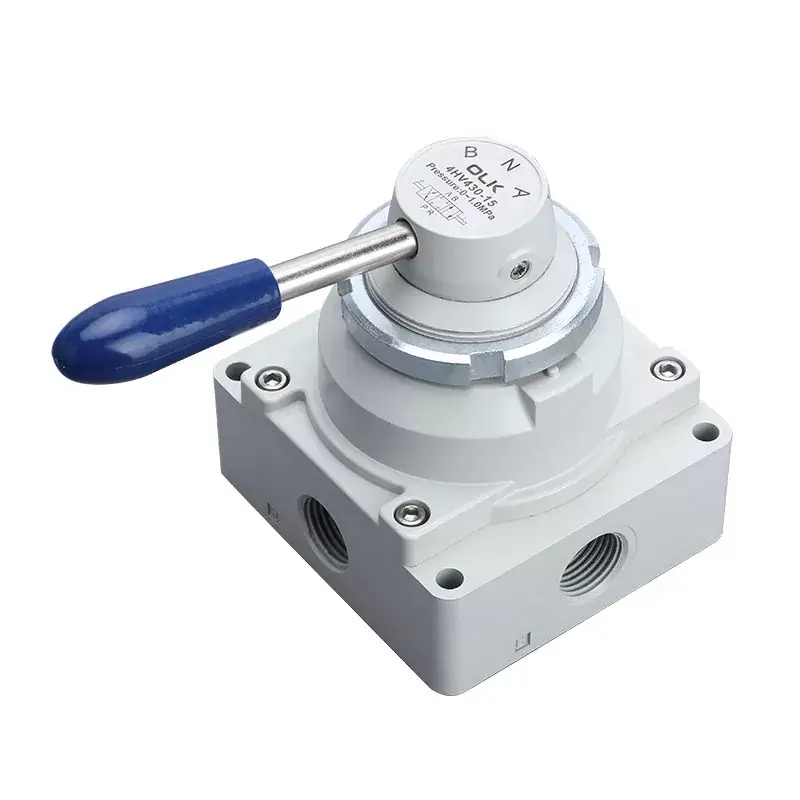

4HV Series Manual Rotating Valvae 4 Way

Model:4HV210-08

Grata ad Lupum vel nativus 4HV Series Manualis Valvae Rotating 4 Via ex officina nostra aliquando. Te praebebimus officinas discount prices pro fructibus nostris. OLK 4HV valvae manualis fabricatores et instructores in Sinis sunt.

Brand:
OLK
Action:
Manul,Hand control
Position:
4/2 way,4/3 way
Port size:
PT1/8 , PT1/4 , PT3/8 , PT1/2 , PT3/4

Mitte Inquisitionem

depictio producti

Ouleikai (OLK) 4HV Series bivium quattuor portuum/trium viarum quattuor portuum valvula manu operata mutatur per vectem manualem rotando, bonam sentiendi tangendi et lenis operationem praebens.

In 4HV notae valvae manu operatae magna area fluxus efficax et humilis pressionis amissio, quae industriam consumptionem minuere adiuvat et in translatione fluidi efficientiam emendare adiuvat. Accedit, quod duo genera institutionis pro utentibus eligendis praebet: tabulam institutionem et fundum institutionem, cum nucibus inclusis ad tabulam installationis inclusis.

Super, Ouleikai (OLK) 4HV valvae manualis est summus effectus et usor amicabilis valvae imperium late in variis partibus industriae adhibitis. Ut melius notitias de 4HV valvae manualis, suadetur ut manualem productum propinquum consulat vel ad personas technicas professionales loquatur.

4HV Valva manualis Productum Characteres

1. Levis et levis conversio cum sensu tangendi bono, positione accurata;

Magnae efficax fluxus area cum low pressura damnum;

3. Amplus efficax regio fluit;

4. Duo modi institutionis in promptu sunt: tabula et ima installation. Panel institutionem venit cum nucibus ascendendis.

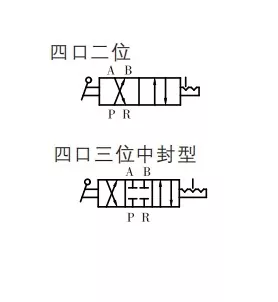

Series 4HV valvae manualis 4 modo Symbol:

Mandans signum
4HV	2	30	__	8	S
Exemplar	series	positione		Portus magnitudine	Genus instruitur:
4HV：4HV series manus valvae manualis rotationis	2:200 series	10:2 position 4 Port		06:PT1/8	Blank
	3:300 series	30:3 positus 4 Port		08:PT1/4	S:Panel adscendens cum valvae nucis)
	4:400 series			10: PT3/8
				15:PT1/2
				20: PT3/4

Series 4HV valvae manualis rotationis 4 modo parametri generales

opus medium	Aer (percolatur per filtrum super 40μm)
Actio	manus imperium
lubricating	necesse "
Opus pressura range MPa(psi)	0∼1.0(~145)
Guaranteed pressura resistentia	1.5MPa (215psi)
°C	-20∼70

Series 4HV valvae manualis 4 modo parametri diversae

exemplar	Portus diam	numerus positionum	Effective cross-sectional area mm² (CV value)
4HV210-06	PT1/8	2 position 4 way	14.0(0.78)
4HV230-06	PT1/8	3 position 4 way	14.0(0.78)
4HV210-08	PT1/4	2 position 4 way	14.0(0.78)
4HV230-08	PT1/4	3 position 4 way	14.0(0.78)
4HV310-08	PT1/4	2 position 4 way	30.0 (1.67)
4HV330-08	PT1/4	3 position 4 way	30.0 (1.67)
4HV310-10	PT3/8	2 position 4 way	33.0 (1.83)
4HV330-10	PT3/8	3 position 4 way	33.0 (1.83)
4HV410-15	PT1/2	2 position 4 way	88.0(4.89)
4HV430-15	PT1/2	3 statum 4 way	88.0(4.89)
4HV410-20	PT3/4	2 position 4 way	95.0(5.27)
4HV430-20	PT3/4	3 statum 4 way	95.0(5.27)

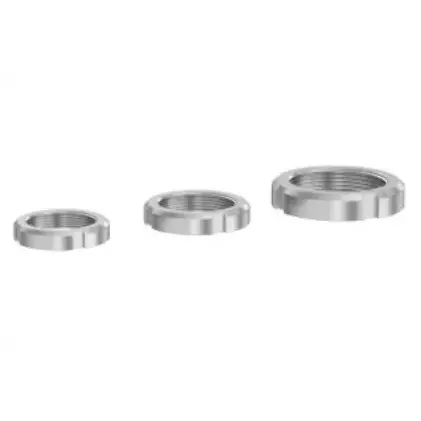

4 via 4HV plectrum manu plectrum nut operatum;

Exemplar:	Post:
4HV200	M35X1.5
4HV300	M40X1.5
4HV400	M52X1.5

OLK Pneumatica Manu Rotary Valvulae - 5 Exempla Comparatio
OLK Model	4HV210/310/410/230/330/430	HV200A/B	HV-02/03/04	HV400-02/03/04	K34R6-8/L/D
Position	2 Position 4 Way	3 Position 4 Via	3 Position 4 Via	3 Position 4 Via	3 Position 4 Via
	3 Position 4 Via
Portus magnitudine	RC1/8,1/4,3/8,1/2,3/4	PT1/4	PT1/4,PT3/8,PT1/2	PT1/4,PT3/8,PT1/2	G1/4
Product features	Panel adscendens	A: Quadrilateri interfaciei B: duo lateris interfaciei, cum soni attenuatione in fundo			Blank：One foraminis ex una parte L.Two foraminibus ex oppositis lateribus.D.Four foraminis fundo

Palpate	Removibilibus manubrio	Removibilibus manubrio	Removibilibus manubrio	Non Removable / Plastic Handles	Removibilia manubrio anti-scale ansam

Dimensiones basis	200 series: 62 mm 300 series: 74 mm 400 series: 94 mm	61.3 mm	74 mm	74 mm	55 mm
		HV200A			K34R6-8

		HV200B			K34R6-8L

					K34R6-8D
