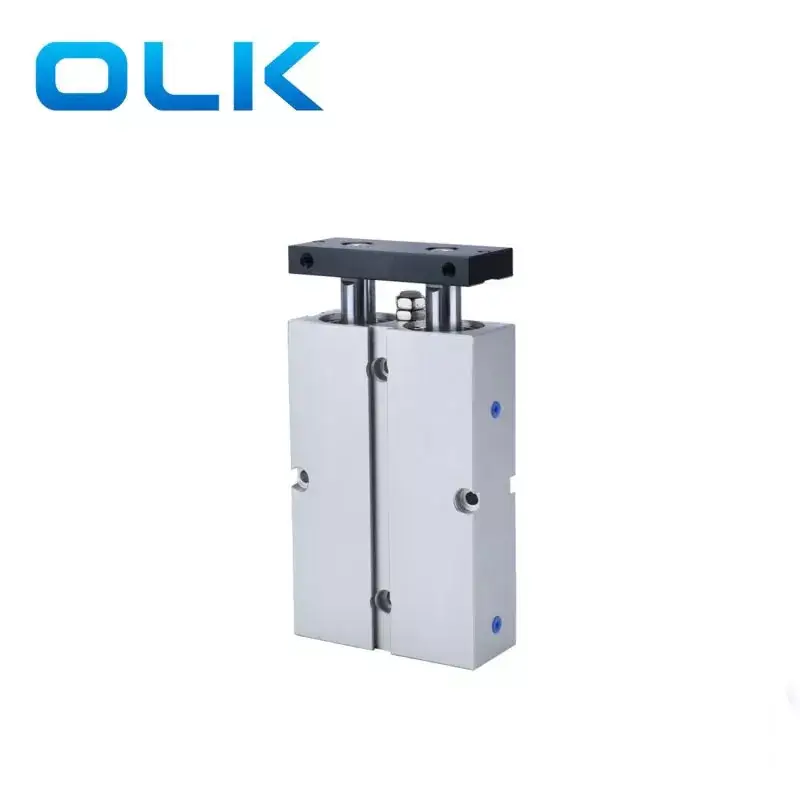

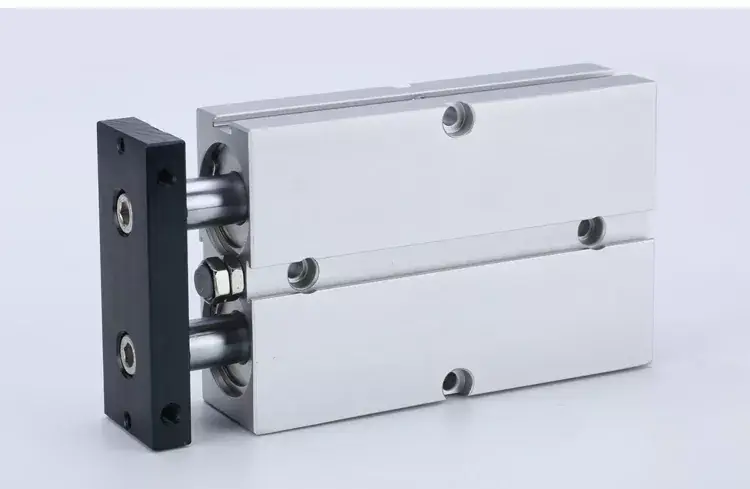

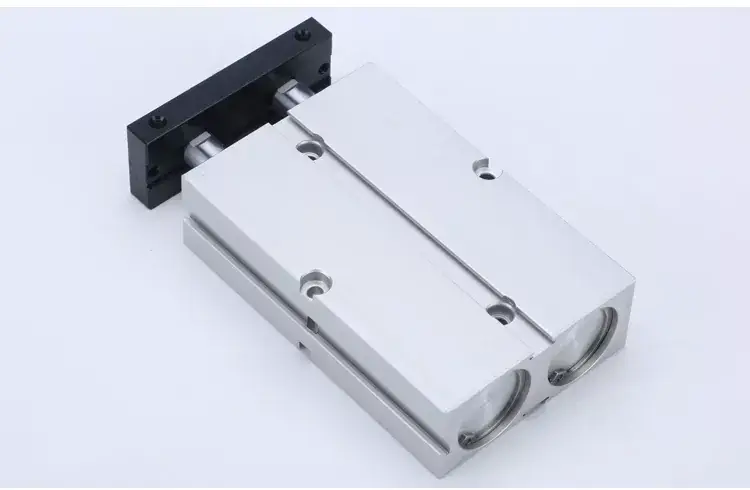

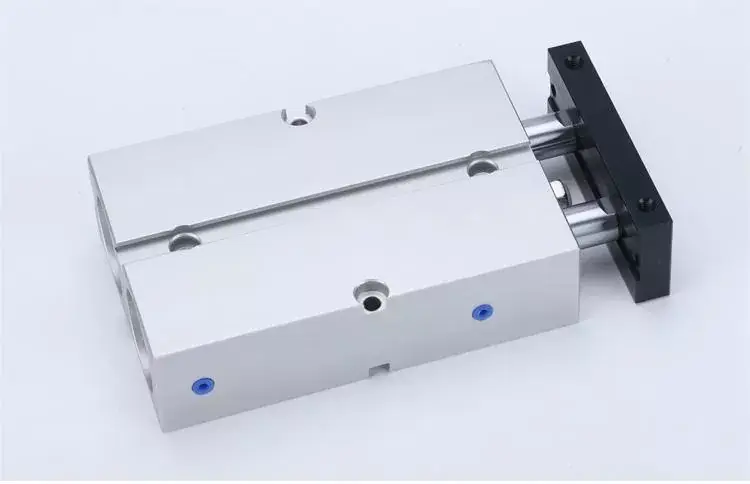

Of Factory specialitas in vestibulum TN series dual axis cylindri. Welcome to buy TN series dual axis cylindrici ex Olk. Omne petitionem a customers est respondit intra XXIV horas. Et oulikai (Olk) TN Dual Axem cylindrici enables simultaneous imperium multiple axes, facilius complexu motus et multi-axis collaborative opus.
Comparari per plures unum-axis cylindris seorsim, in TN dual axis Cylinderintegrate multiple Actualia axes, cum spatium, salvis embedded corpus adscendens forma, quae est pacto.
Olk pneumatic amet cum provectus consilium et optimized imperium algorithms, efficiens industria utendo et industria, salvis effectus, reducing industria consummatio et operating sumptibus.

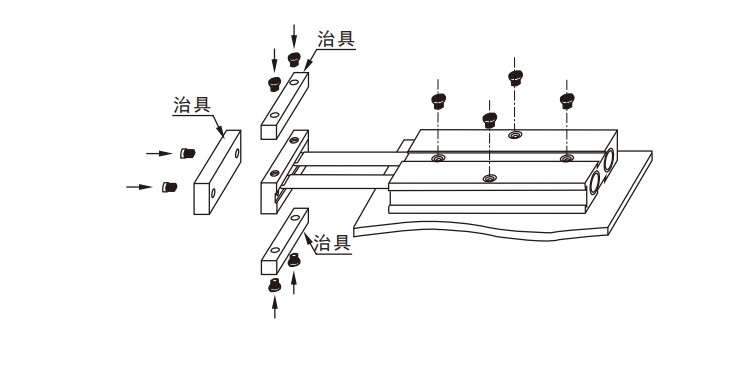

In TN Dual Axem cylindrici certa panel habet adscendens foramina in tres latera, facilitandis multi, positio loading. Erat precise synchronae imperium multiple axes, cursus Synchroni motus cuiusque axis in complexu motus semitas.
I. Complies cum turma signa.
II. Embedded corpus installation pro spatio-salute.
III. Habet latrunculos et tersional resistentia, capax pravum lateralibus onera.
IV. Utri latera fixa planta facilitate multi-positus ascendere.
V. Fusce Front-FACIO Concursus codex in corpore concedit in cylindrici ictu temperatio et impulsum relevium.
VI. Haec series cylindyporum sunt stagalia instructa magnetica attachiamentis, cum non-magnetica options available.
|
Testor mole (mm) |
10 |
16 |
20 |
25 |
32 |
|
|
Agens modus |
Duplex agens |
|||||
|
Opus medium |
Purgandum aerem |
|||||
|
Operantes pressura |
0.1-1.0 MPA (14-145psi) |
|||||
|
Probationem pressura |
1.5 MPA (215pes) |
|||||
|
Operantes temperatus range |
'-20-70 ℃ |
|||||
|
Operantes celeritas range |
30-500 |
|||||
|
Buffering modus |
Crash Cushion |
|||||
|
Non-roating praecisione |
± 0.4 |
± 0.3 |
||||
|
Portus magnitudine |
M5 x 0,8 |
PT1 / VIII |
||||
Et non-rotating accuracy refers ad angulum cylindri fixa laminam potest gyrari cum cylindri in plene retractavit status.
Et takeover thread types available sunt NTP et G.
PS: Omnes TN series Dual Axem cylindrum cum magnetes.
TN Series Dual Axem Cylindrum Symbol:
|
Code |
||||||||
|
Tn |
- |
20 |
X |
50 |
- |
S |
- |
|
|
Exemplar |
|
Testimonium |
|
plaga |
|
Magnes |
|
Filum |
|
T, duplex Rap Cylinder (duplex agens), plenum seriem cum magnetis |
|
|
|
|
|
S: cum Magnet |
|
Blank: PT Thread |
|
|
|
|
|
|
|
|
|
T, NPT Thread |
|
|
|
|
|
|
|
|
|
G: G thread |
TN Series Dual Axem Cylindrum Latin Specification:
|
Testor mole (mm) |
10 |
16 |
20 |
25 |
32 |
|
|
Agens modus |
Duplex agens |
|||||
|
Opus medium |
Purgandum aerem |
|||||
|
Operantes pressura |
0.1-1.0 MPA (14-145psi) |
|||||
|
Probationem pressura |
1.5 MPA (215pes) |
|||||
|
Operantes temperatus range |
'-20-70 ℃ |
|||||
|
Operantes celeritas range |
30-500 |
|||||
|
Buffering modus |
Crash Cushion |
|||||
|
Non-roating praecisione |
± 0.4 |
± 0.3 |
||||
|
Portus magnitudine |
M5 x 0,8 |
PT1 / VIII |
|
|||
Et non-rotating accuracy refers ad angulum cylindri fixa laminam potest gyrari cum cylindri in plene retractavit status.
Et takeover thread types available sunt NTP et G.
PS: Alltn series dual axis cylinder cum magnetes.
|
Peperit (mm) |
Piston virga diameter (mm) |
Agens type |
Efficens Area (MM²) |
Aeris pressura (MPa) |
|||||||
|
0.1 |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
|||||
|
6 |
4 |
Duplex agens |
Ventilabo |
56.5 |
5.7 |
11.3 |
17.0 |
22.6 |
28.3 |
33.9 |
39.6 |
|
Ventilabo |
31.4 |
3.1 |
6.3 |
9.4 |
12.6 |
15.7 |
18.8 |
22.0 |
|||
|
10 |
6 |
Duplex agens |
Ventilabo |
157.1 |
15.7 |
31.4 |
47.1 |
62.8 |
78.5 |
94.2 |
110.0 |
|
Ventilabo |
100.5 |
10.1 |
20.1 |
30.2 |
40.2 |
50.3 |
60.3 |
70.4 |
|||
|
16 |
8 |
Duplex agens |
Ventilabo |
402.1 |
40.2 |
80.4 |
120.6 |
160.8 |
201.1 |
241.3 |
281.5 |
|
Ventilabo |
301.6 |
30.2 |
60.3 |
90.5 |
120.6 |
150.8 |
181.0 |
211.1 |
|||
|
20 |
10 |
Duplex agens |
Ventilabo |
628.3 |
62.8 |
125.7 |
188.5 |
251.3 |
314.2 |
377.0 |
439.8 |
|
Ventilabo |
471.2 |
47.1 |
94.2 |
141.4 |
188.5 |
235.6 |
282.7 |
329.9 |
|||
|
25 |
12 |
Duplex agens |
Ventilabo |
981.7 |
98.2 |
196.3 |
294.5 |
392.7 |
490.9 |
589.0 |
687.2 |
|
Ventilabo |
755.6 |
75.6 |
151.1 |
226.7 |
302.2 |
377.8 |
453.3 |
528.9 |
|||
|
32 |
16 |
Duplex agens |
Ventilabo |
1608.5 |
160.8 |
321.7 |
482.5 |
643.4 |
804.2 |
965.1 |
1125.9 |
|
Ventilabo |
1206.4 |
120.6 |
241.3 |
361.9 |
482.5 |
603.2 |
723.8 |
844.5 |
|||
