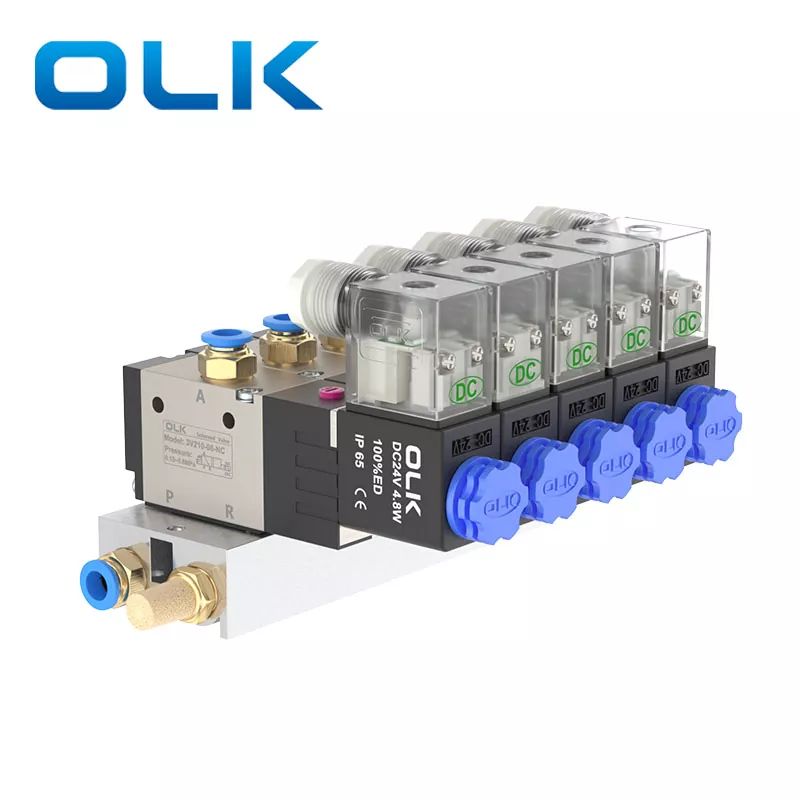

3V solenoidal valvae multiplici robur corporis habet longum lifespan et valde idoneam ad electrica et pneumatica potentia control.it est facile ut install et ponere. Is est amplis applications, sicut familia adjumenta, industriae apparatu, medicinae apparatu, baptismata machinis, potum fontes, hortus aspersorio irrigationes, etc. Certa accurate facit eam competentem ad aliquem opus situ.
|
Muffler |
plug |
Pl8-02 |
PC8-02 |
Bus tabula |

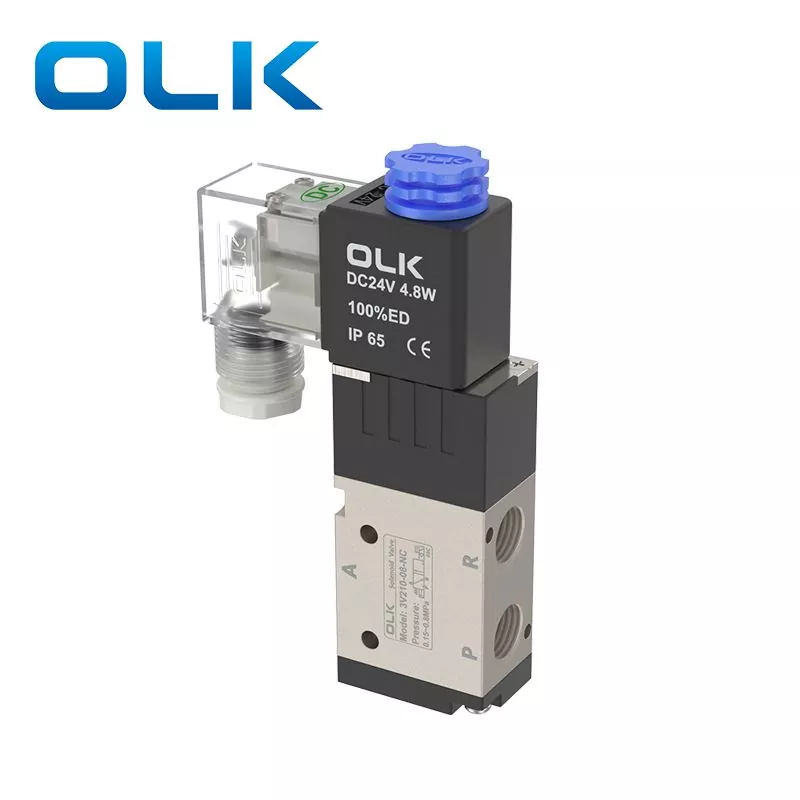

3V Solenoid Vlave |
|
|
3v110-2f 3v210-2f 3v310-2f |
1 |
2 |
1 |
2 |
2 |
2 |
|
3v110-3f 3v210-3f 3v310-3f |
1 |
2 |
1 |
3 |
3 |
3 |
|
3v110-4f 3v210-4f 3v310-4f |
1 |
2 |
1 |
4 |
4 |
4 |
|
3v110-5f 3v210-5f 3v310-5f |
1 |
2 |
1 |
5 |
5 |
5 |
|
3v11-6f 3v210-6f 3v310-6f |
1 |
2 |
1 |
6 |
6 |
6 |
|
3v110-7f 3v210-7f 3v310-7f |
1 |
2 |
1 |
7 |
7 |
7 |
|
3v110-8f 3v210-8f 3v310-8f |
1 |
2 |
1 |
8 |
8 |
8 |
|
3v110-9f 3v210-9f 3v310-9f |
1 |
2 |
1 |
9 |
9 |
9 |
|
3v110-10F 3v210-10F 3v310-10F |
1 |
2 |
1 |
10 |
10 |
10 |
|
opus medium |
Air (percolantur per filter super 40μm) |
|
Actus |
Gubernator type |
|
numerum positions |
Duo positio tribus |
|
lubricus |
necesse |
|
Opus pressura range MPA (Psi) |
0.15~0.8 (XXI ~ CXIV) |
|
Guaranteed pressura resistentia |
1.5MPA (215Psi) |
|
Corporis materia |
Aluminium Alloy |
|
Vexillum voltage |
AC220V, Ac110V, AC24V, DC24V, DC12V |
|
Uti voltage range |
Action: ± XV% DC: ± X% |
|
tutela gradu |
Ip65 (din40050) |
|
Aestus resistentia gradu |
Classis b |
|
Nexu type |
Din Servket Type, Outlet Type |
|
Excitationem Tempus |
0.05 seconds minusve |
|
exemplar |
Portus |
Working Temperature ° C |
Max operating frequency |
Fluxus crucem-sectional area mm² (cv valorem) |
potentiam consummatio |
|
3v110-M5 |
M5 |
-20 ~770 |
V temporibus / secundi |
5.5 (0,31) |
AC: 3VA DC: 3W |
|
3v120, M5 |
M5 |
-20 ~770 |
V temporibus / secundi |
5.5 (0,31) |
AC: 3VA DC: 3W |
|
3v110-06 |
G1 / VIII |
-20 ~770 |
V temporibus / secundi |
12.0 (0.67) |
AC: 3VA DC: 3W |
|
3v120-06 |
G1 / VIII |
-20 ~770 |
V temporibus / secundi |
12.0 (0.67) |
AC: 3VA DC: 3W |
|
3V210-06 |
= Intrak = Outlet G1 / VIII |
-20 ~770 |
V temporibus / secundi |
14.0 (0.78) |
AC: 6VA DC: 4.8W |
|
3v220-06 |
= Intrak = Outlet G1 / VIII |
-20 ~770 |
V temporibus / secundi |
14.0 (0.78) |
AC: 6VA DC: 4.8W |
|
3v210-08 |
= G1 intake = Outlet / IV |
-20 ~770 |
V temporibus / secundi |
16.0 (0.89) |
AC: 6VA DC: 4.8W |
|
3v220-08 |
= G1 intake = Outlet / IV |
-20 ~770 |
V temporibus / secundi |
16.0 (0.89) |
AC: 6VA DC: 4.8W |
|
3v310-08 |
= G1 intake = Outlet / IV |
-20 ~770 |
V temporibus / secundi |
25.0 (1.39) |
AC: 6VA DC: 4.8W |
|
3v320-08 |
= G1 intake = Outlet / IV |
-20 ~770 |
V temporibus / secundi |
25.0 (1.39) |
AC: 6VA DC: 4.8W |
|
3v310-10 |
= Intrak = Outlet G3 / VIII |
-20 ~770 |
V temporibus / secundi |
30.0 (1.67) |
AC: 6VA DC: 4.8W |
|
3v320-10 |
= Intrak = Outlet G3 / VIII |
-20 ~770 |
V temporibus / secundi |
30.0 (1.67) |
AC: 6VA DC: 4.8W |
|
3v410-15 |
= G1 intake = Outlet / II |
-5~60 |
III tempora / secundi |
50.0 (2.79) |
AC: 6VA DC: 4.8W |
|
3v420-15 |
= G1 intake = Outlet / II |
-5~60 |
III tempora / secundi |
50.0 (2.79) |
AC: 6VA DC: 4.8W |
FAQs:
3What est functio de muffler in 3v solenoid valvae multiplex?
Mufflers potest efficaciter reducere sonitus ne pulvis ab intrantes solenoidal valvulae.
2.How Multi 3V Solenoidal valvulae potest pertinere ad multiformem apud pleraque?
Max. X PCs 3v Solenoidal Valvulae in multiplicibus.
3.What est filum / Portus magnitudinem 3V multiplex?
3V100: G1 / VIII; 3v CC, G1 / IV; 3V300: G3 / VIII; 3V400: G1 / II
